• Power supply modules (two—One for operations and one for redundancy [1+1]) with the following
choices (do not mix AC and DC power sources and do not mix airflow directions):
• 500-W AC power supply with port-side intake airflow (burgundy coloring) (NXA-PAC-500W-PI)
• 500-W AC power supply with port-side exhaust airflow (blue coloring) (NXA-PAC-500W-PE)
• 930-W DC power supply with port-side intake airflow (burgundy coloring) (NXA-PDC-930W-PI)
• 930-W DC power supply with port-side exhaust airflow (blue coloring) (NXA-PDC-930W-PE)
• 1200-W HVAC/HVDC power supply with dual-direction airflow (white coloring)
(N9K-PUV-1200W)
If you are using the 1200-W HVAC/HVDC power supply, the power
supply automatically uses the same airflow direction as the fan
modules installed switch.
Note

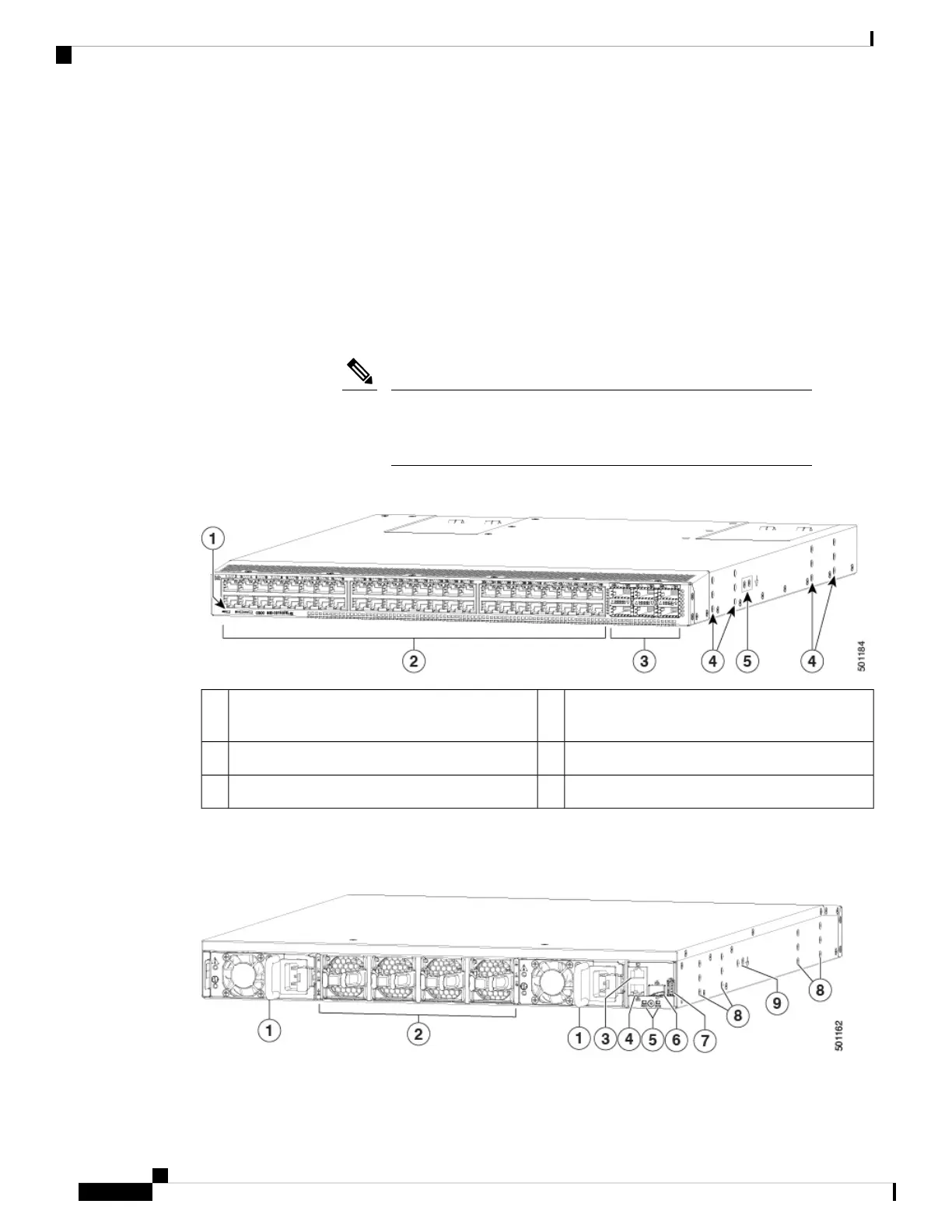

The following figure shows the hardware features seen from the port side of the chassis.
Screw holes (6) for attaching rack mounting
brackets
4Beacon [BCN], Status [STS], and Environment
[ENV] LEDs
1
Grounding pad548 10/1-Gigabit RJ45 ports2
6 40/100-Gigabit QSFP28 ports3
To determine which transceivers, adapters, and cables this switch supports, see the Cisco Transceiver Modules
Compatibility Information document.
The following figure shows the hardware features seen from the power supply side of the chassis.
