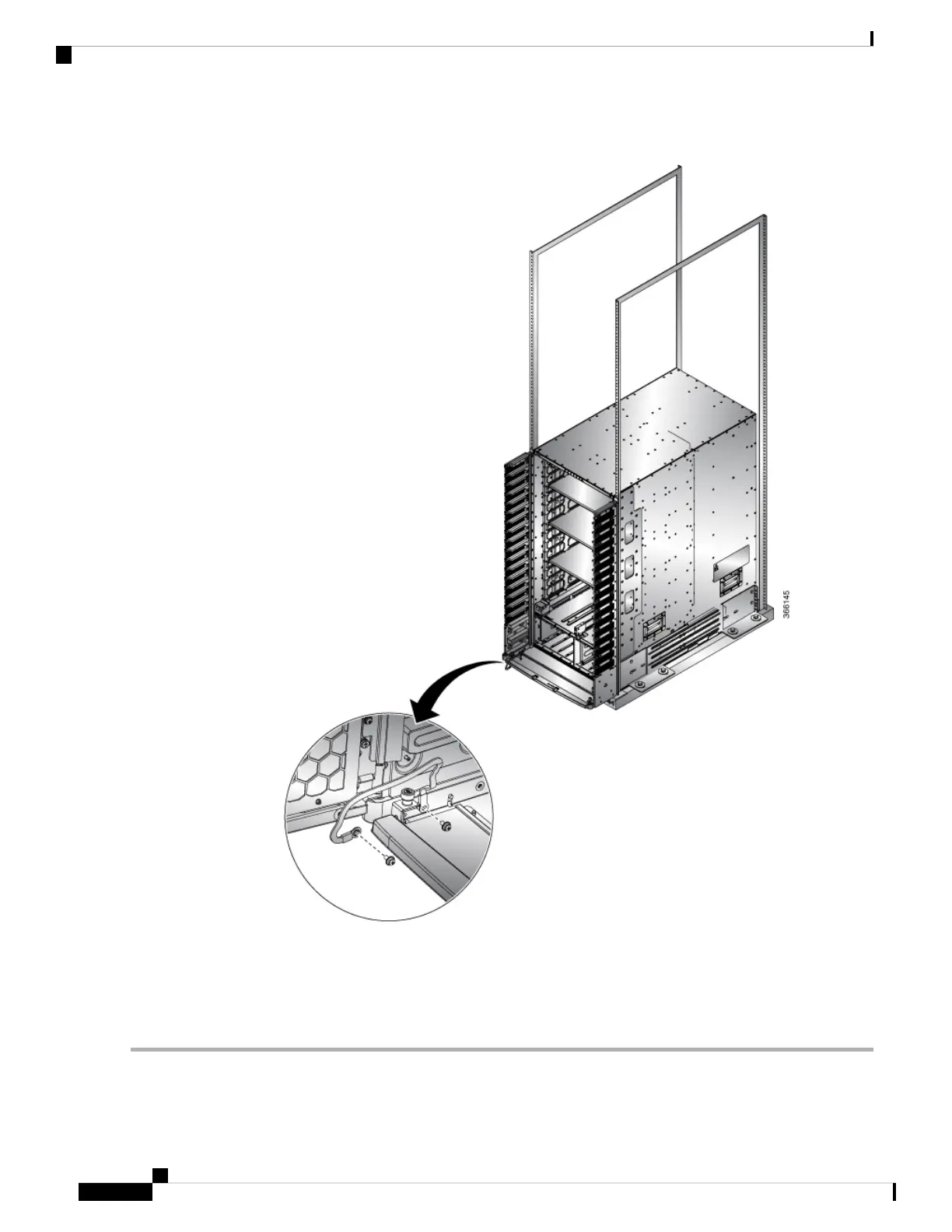

Figure 39: Ground NCS 5516 Front ID Door
Step 3 Connect the other round terminal of the grounding cable to the ground port on the side filter bracket on either left/right
side of the chassis. Tighten the M4 screw to 9 to 12 in-lb (1.01 to 1.35 N-m) of torque.
Step 4 Repeat Steps 1 through 3 to install the grounding cable to the other front door.
Step 5 Close and lock the front ID door.
Hardware Installation Guide for Cisco NCS 5500 Series Modular Routers
70
Install the Chassis
Ground the Front ID Door
