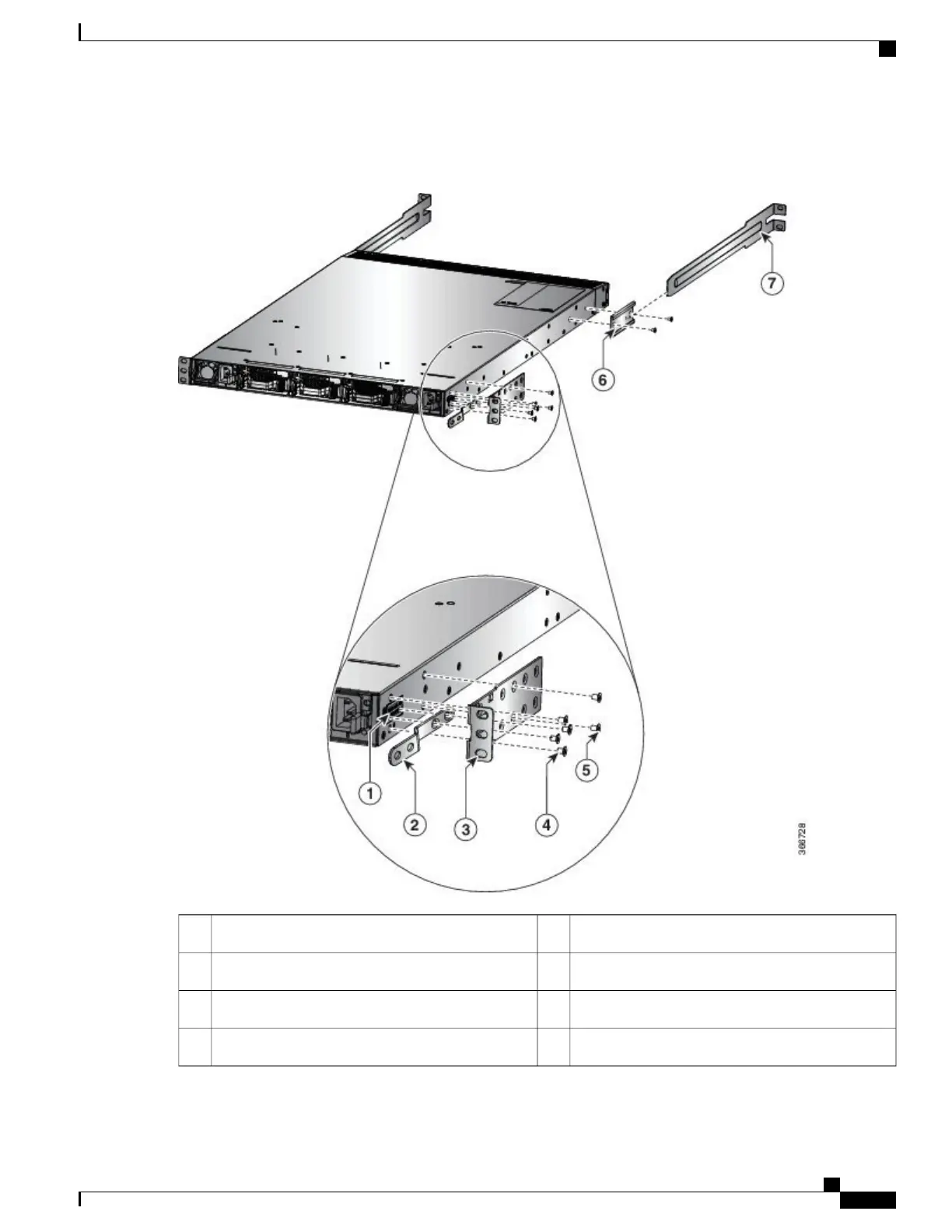

Figure 8: Rack-Mount Brackets on the Rear Side of Cisco NCS 55A1-36H-S
M4 x 6mm Phillips flat-head screws5Grounding cover label1
Rack-mount guide6Grounding cover plate2
Rack-mount slider rails7Rack-mount brackets3
Top plate8M4 x 6mm Phillips flat-head screws4
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
19
Install the Chassis
Rack-Mount the Chassis on a 4-Post Rack
