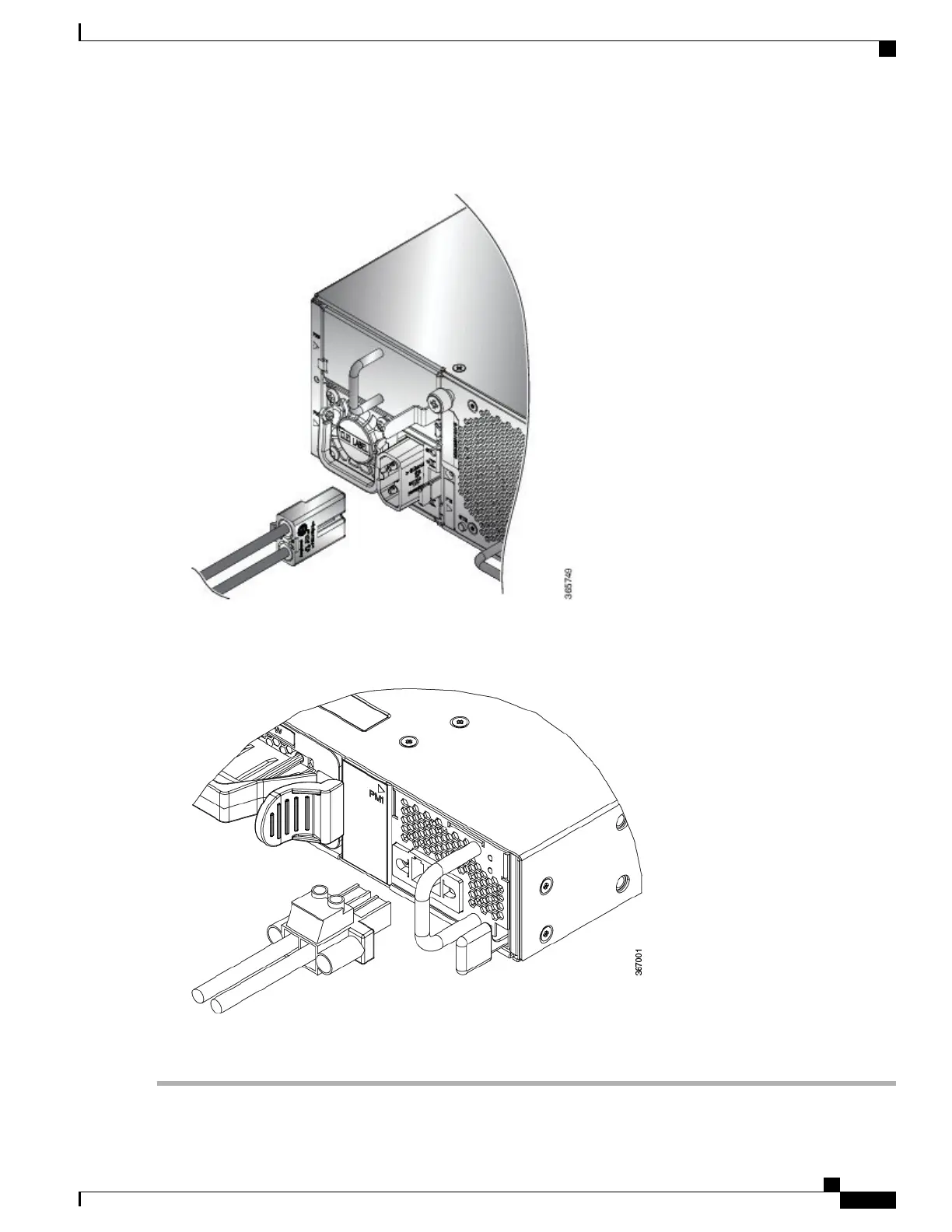

Figure 20: Connecting DC Power
–
NC55-2KW-DC
Ensure
that
the
locking
mechanism
has
engaged
to
secure
the
cable.
•
Figure 21: Connecting DC Power
–
NCS-950W-DCFW
Secure
the
terminal
by
using
the
screws
on
the
left
and
right
of
the
connector
.
Hardware Installation Guide for Cisco NCS 5500 Series Fixed-Port Routers
33
Install the Chassis
Connect DC Power to the Chassis - NCS-950W-DCFW and NC55-2KW
-DC
40
42
