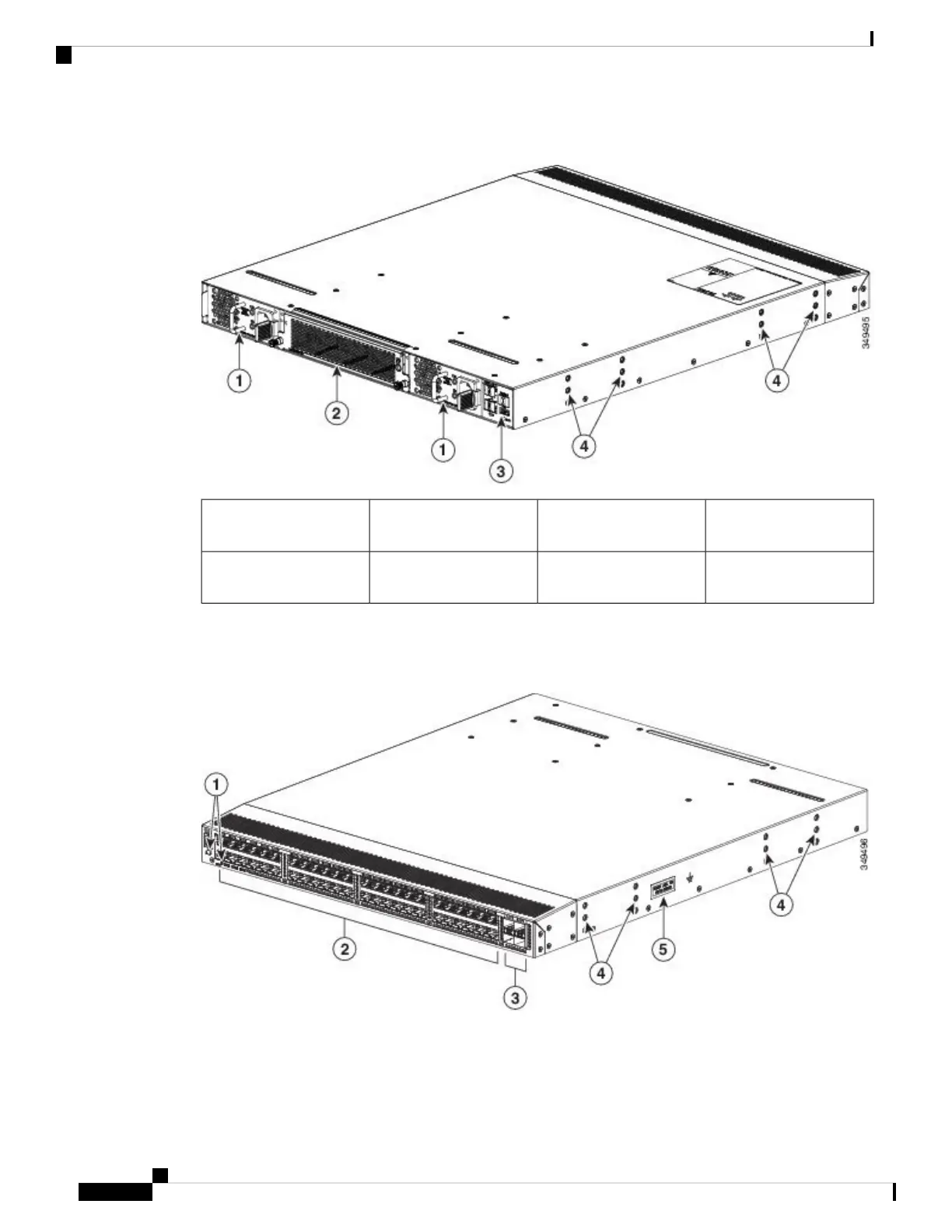

Figure 3: Fan-Side View of the Cisco Nexus 3048TP Chassis
Console, Management,
and USB ports
3AC or DC power supply
(1 or 2)
1
Screw holes for mounting
brackets
4Fan tray (1)2
The following figure shows the port-side chassis features that you use when installing the chassis or replacing
its modules.
Figure 4: Port-Side View of the Cisco Nexus 3048TP Chassis
