100-Gigabit QSFP28
ports (32)
4Lane select button2
The following figure shows the port-side chassis features that you use when installing the chassis or replacing
its modules.

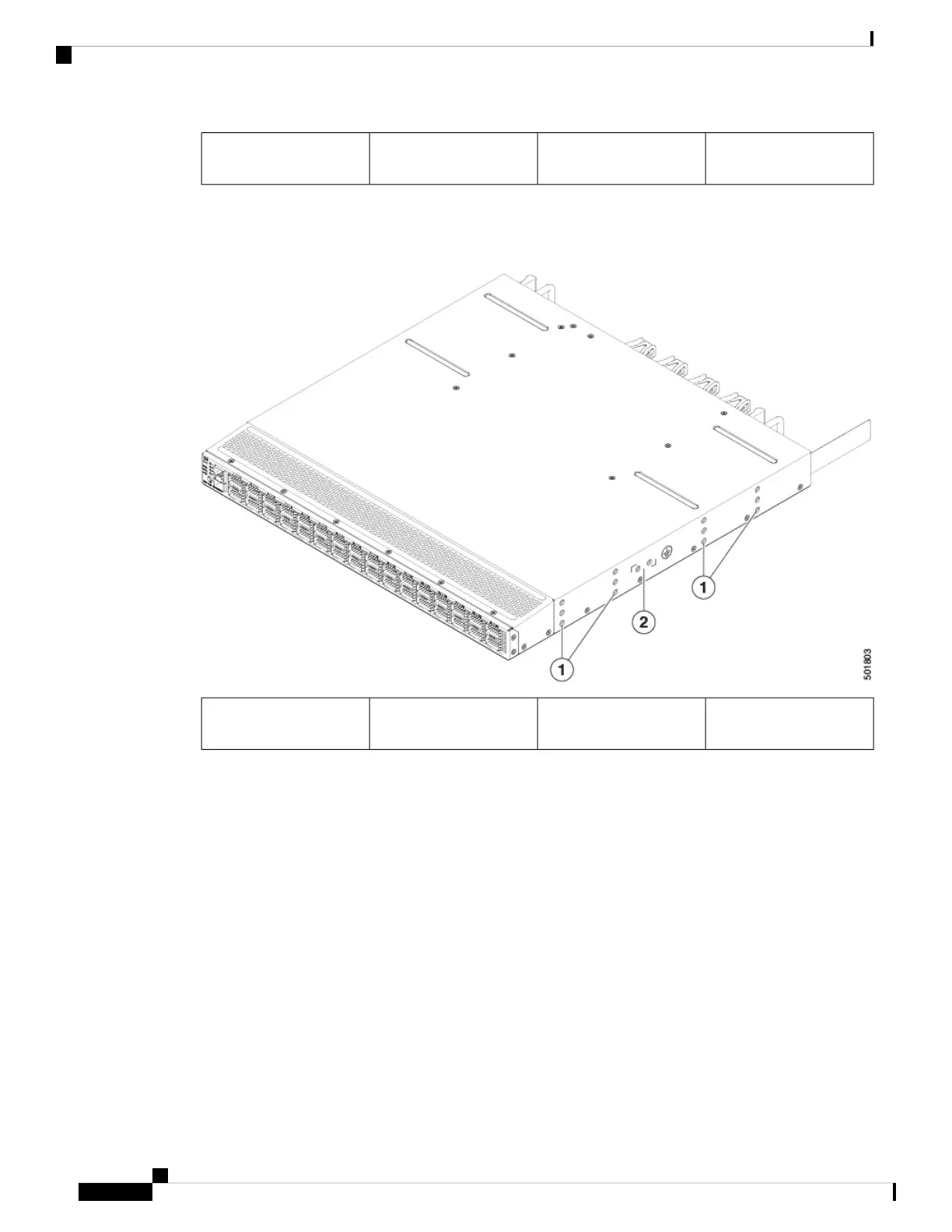

Figure 11: Side View of the Cisco Nexus 3132C-Z Chassis
Grounding pad2Screw holes for mounting
brackets
1
Overview of the Cisco Nexus 3164Q Switch
The Cisco Nexus 3164Q (N3K-C3164Q-40GE) is a 2 rack unit (RU) switch with 64 fixed 40-Gigabit enhanced
quad small form-factor pluggable (QSFP+) ports that can run in either 40-Gigabit native mode or 4 x 10-Gigabit
mode, 1 RJ-45 management port, 1 RS-232 console port, and 1 USB port. This switch supports both port-side
exhaust and port-side intake airflow schemes. The switch requires one AC or DC power supply for operations,
but it can have a second power supply for redundancy.
The following figure shows the fan-side chassis features that you use when installing the chassis or replacing
its modules.
