Cisco Nexus 5000 Series Hardware Installation Guide
Chapter 1 Overview
Cisco Nexus 5500 Platform Switches

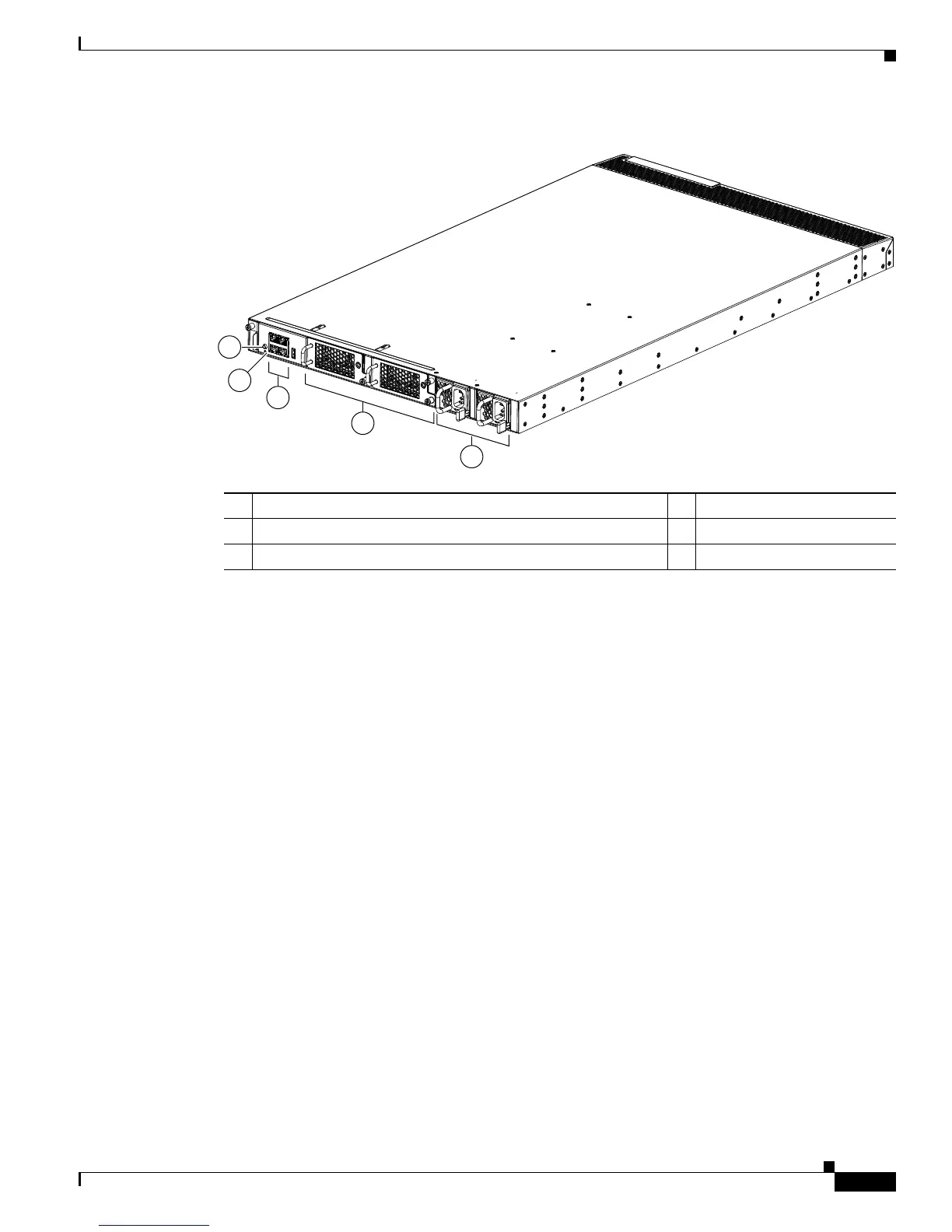

Figure 1-16 Cisco Nexus 5548 Switch Front View
The rear of the Cisco Nexus 5548 switch chassis has 32 fixed 10-Gigabit ports and 1 slot for an optional
expansion module. On the Cisco Nexus 5548UP switch, the 32 fixed ports are 10-Gigabit Ethernet and
FCoE ports (port numbering is shown with an orange label). On the Cisco 5548P switch, the 32 fixed
ports are 10-Gigabit Ethernet ports (port numbering is shown with a gray label). Figure 1-17 shows the
rear of the Cisco Nexus 5548 switch.
1 ID LED 4 Two fan modules
2 Status LED 5 Two power supplies
3 Management (10/100/1000) ports, console port, and USB port
239197
4
3
5
1
2
