Cisco Nexus 5000 Series Hardware Installation Guide
Chapter 1 Overview
Cisco Nexus 5000 Platform Switches

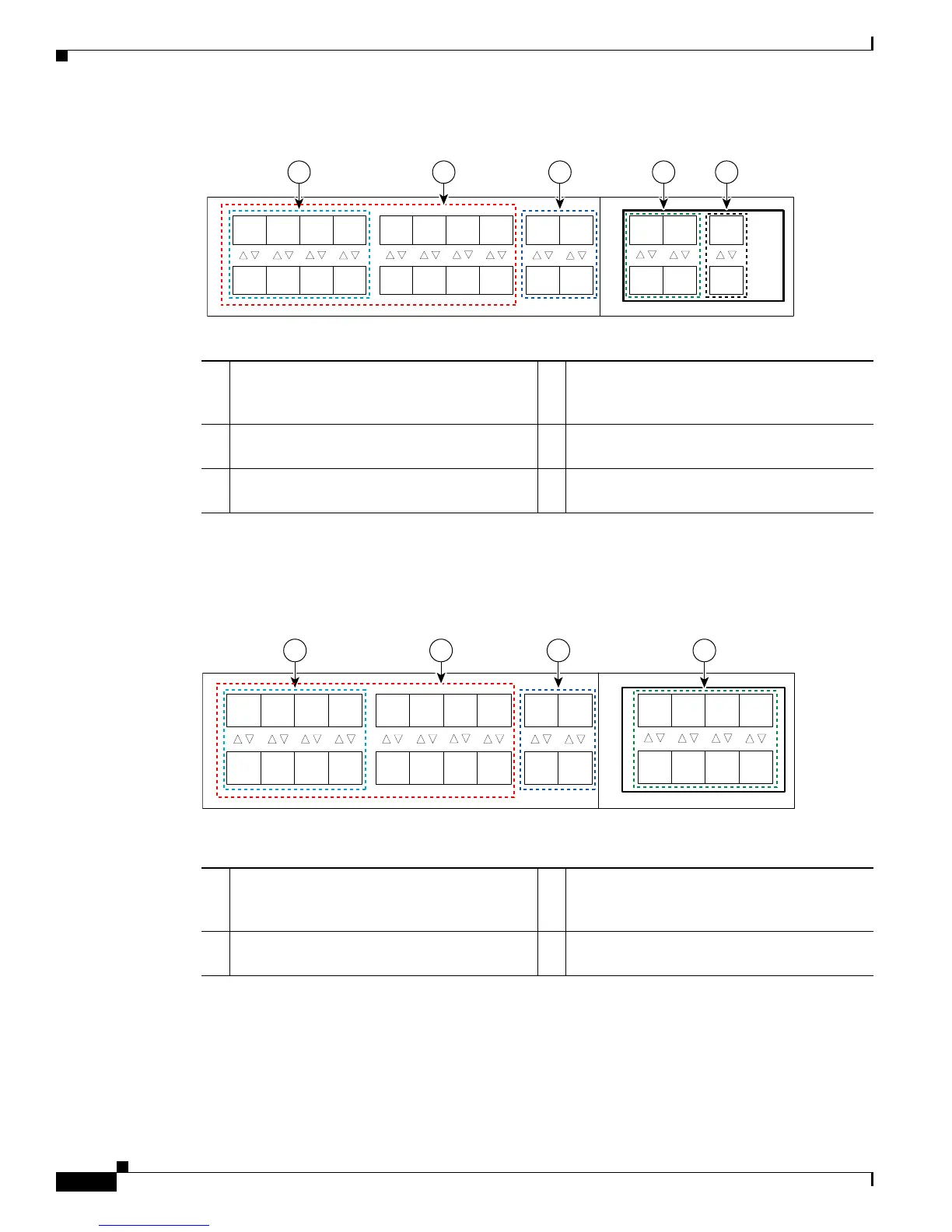

Figure 1-53 Port Numbering of the Cisco Nexus 5010 Switch with the N5K-M1600 GEM
Figure 1-54 shows how ports are numbered and grouped by function with the N5K-M1008 GEM
installed.
Figure 1-54 Port Numbering of the Cisco Nexus 5010 Switch with the N5K-M1008 GEM
Power Supplies
The Cisco Nexus 5010 switch uses a front-end power supply with front-to-back (port-side exhaust)
airflow. The chassis has slots for two power supplies. Two power supplies can be used for redundancy,
but the Cisco Nexus 5010 switch is fully functional with one power supply. Figure 1-55 shows the power
supply, which has two LEDs: one for power status and one for failure condition.
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
A B C D E
192242
A Group 1, ports 1 through 8: 10-Gigabit
Ethernet and 1-Gigabit Ethernet-capable
unencrypted ports
D Group 2, ports 1 through 4: Encrypted
Ethernet ports
B Group 1, ports 1 through 16: Unencrypted
Ethernet ports
E Group 2, ports 5 and 8: Unencrypted Ethernet
ports
C Group 1, ports 17 through 20: Encrypted
Ethernet ports
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
A B C D
192243
A Group 1, ports 1 through 8: 10-Gigabit
Ethernet and 1-Gigabit Ethernet capable
unencrypted ports
C Group 1, ports 17 through 20: Encrypted
Ethernet ports
B Group 1, ports 1 through 16: Unencrypted
Ethernet ports
D Group 2, ports 1 through 8: Fibre Channel
ports
