1-21
Cisco Nexus 5000 Series Hardware Installation Guide
Chapter 1 Overview
Cisco Nexus 5500 Platform Switches

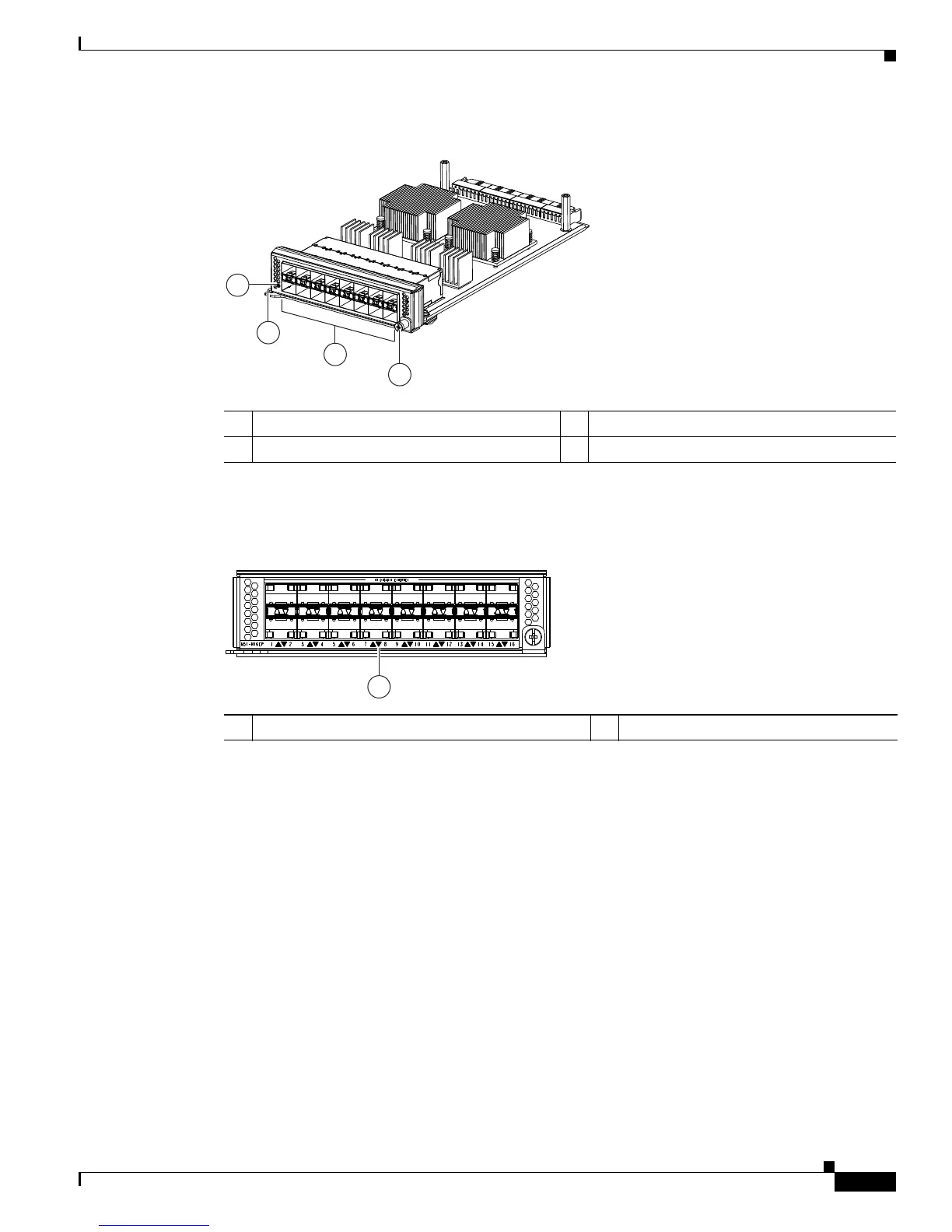

Figure 1-18 Components Used to Install the N55 M16P GEM
Figure 1-19 shows the front of the module and how its ports are numbered.
Figure 1-19 Port Numbering for the N55 M16P GEM
N55 M8P8FP Generic Expansion Module
The N55 M8P8FP Generic Expansion Module (GEM) provides 8 1- or 10-Gigabit Ethernet and FCoE
ports using the SFP+ interface and 8 ports of 8-, 4-, 2-, or 1-Gbps native Fibre Channel connectivity
using the SFP interface.
Figure 1-20 shows the N55 M8P8FP expansion module.
1 Status LED 3 16 10-Gigabit Ethernet ports
2 Ejector lever 4 Captive screw that locks the ejector lever
239324
2
4
3
1
1 Port numbering from top to bottom and left to right
239325
1
