Expansion Modules
The Cisco MDS 9200 Series has two slots that can be used for the following optional expansion modules:
• Fibre Channel plus Ethernet expansion module
• Ethernet expansion module
• N5K-M1008 Generic Expansion Module (GEM)
• N5K-M1060 GEM
The chassis supports hot swapping of the expansion modules.
This section includes the following topics:
• Fibre Channel Plus Ethernet Expansion Module, page 1-32
• Ethernet Expansion Module, page 1-33
• N5K-M1008 Generic Expansion Module, page 1-34
• N5K-M1060 Generic Expansion Module, page 1-34
Fibre Channel Plus Ethernet Expansion Module
The Fibre Channel plus Ethernet expansion module is a field-replaceable unit (FRU) that supports four
SFP+ transceiver modules and four 4-, 2-, or 1-Gbps Fibre Channel transceivers. Figure 1-30 shows the
features that you use when installing the Fibre Channel plus Ethernet expansion module.

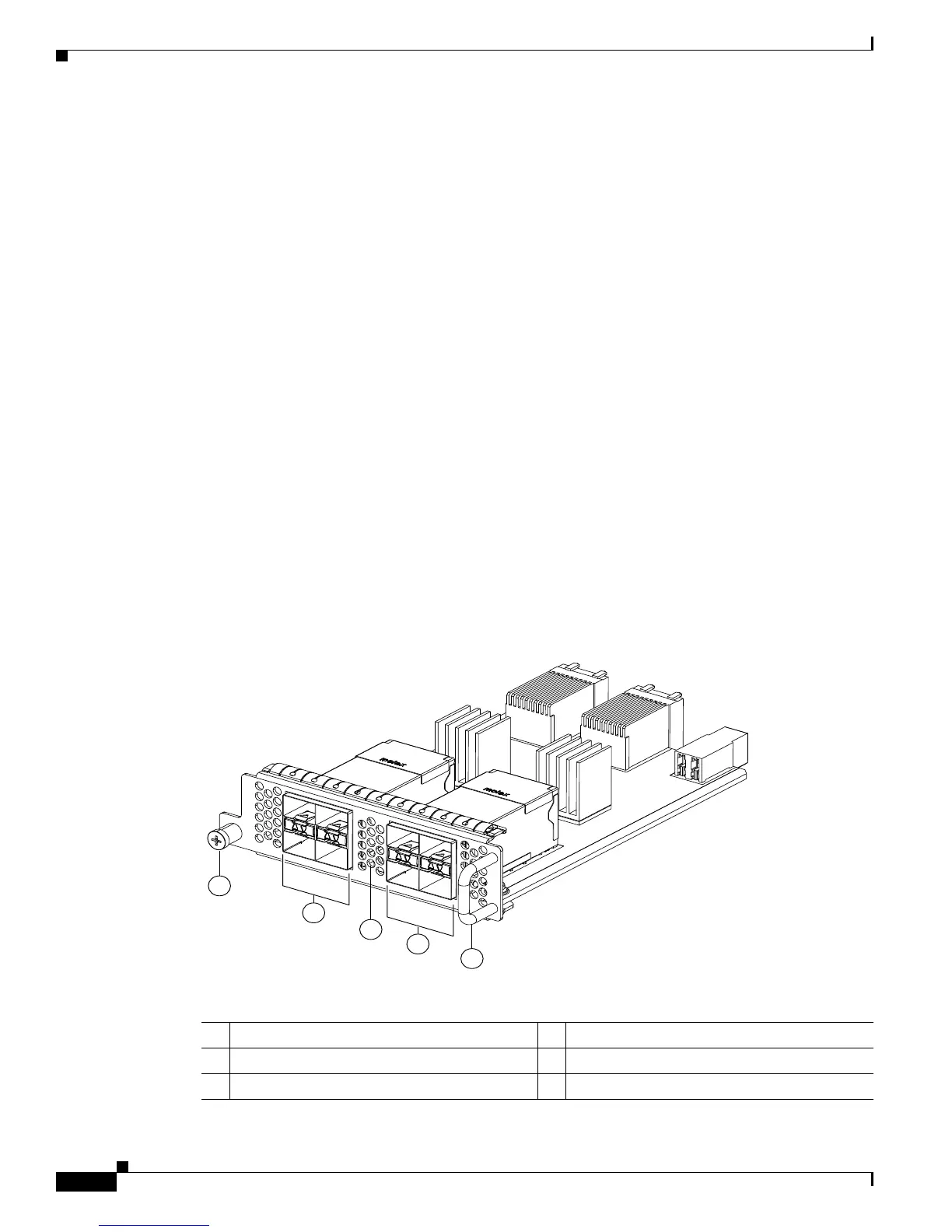

Figure 1-30 Fibre Channel Plus Ethernet Expansion Module Features
186384
2
4
1
5
3
1 Captive screw 4 Four 4-, 2-, and 1- Gbps Fibre Channel ports
2 Four 10-Gigabit Ethernet ports 5 Handle
3 Status LED
