Cisco Nexus 93600CD-GX Series User Manual

Step 1 Remove the fiber-optic cables from the transceiver module before removing the transceiver module.

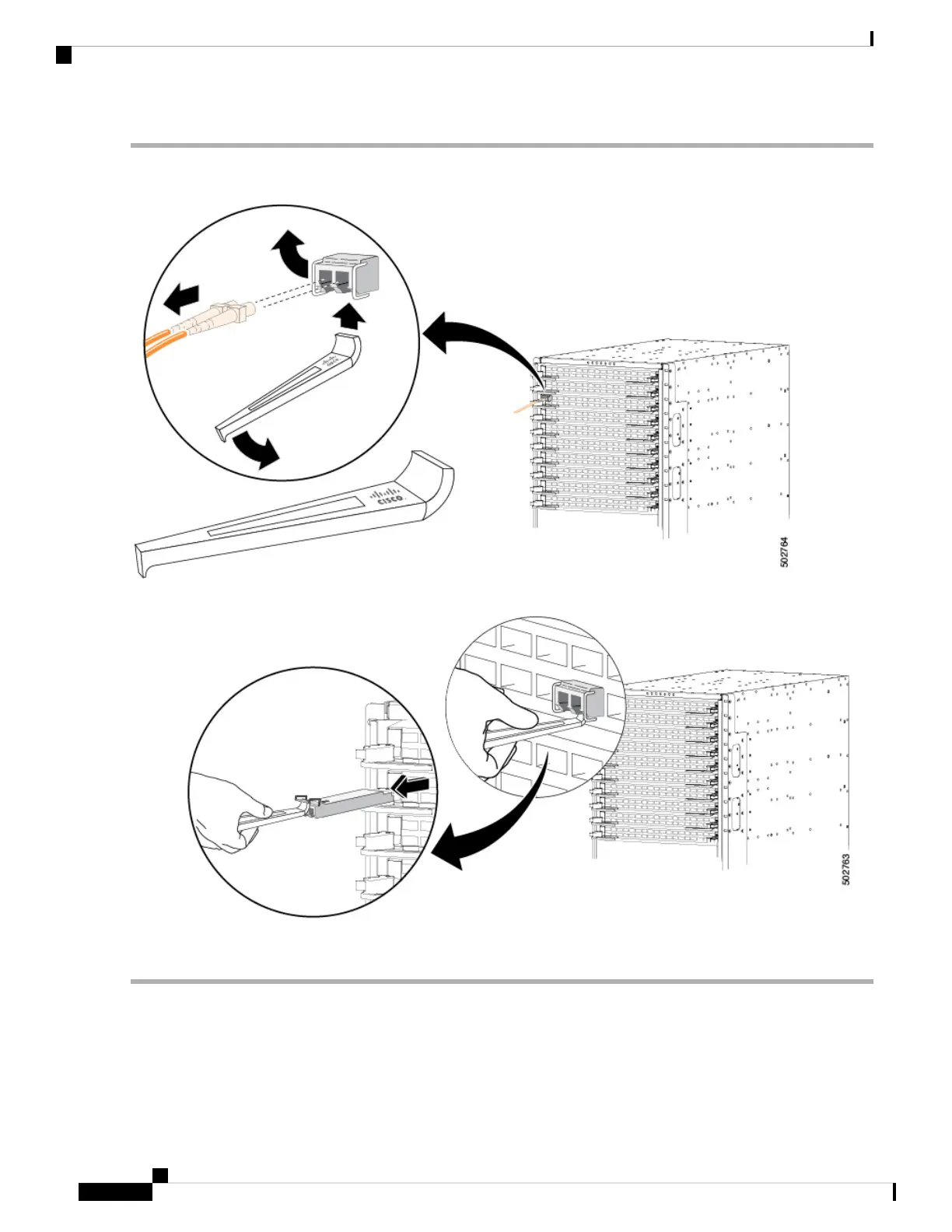

Step 2 Use the wide side of the optics extraction tool to release the bale latch (see the following image).
Step 3 Use the narrow end of the optics extraction tool to carefully remove the transceiver module (see the following
image).
Step 4 Place the transceiver module in an antistatic bag or other protective environment.
Cisco Nexus 93600CD-GX ACI-Mode Switch Hardware Installation Guide
36
Connecting the Switch to the ACI Fabric
Optic Transceiver Removal Using the Optics Extraction Tool
