Cisco PIX Security Appliance Hardware Installation Guide
78-15170-03
Chapter 4 PIX 515/515E
Installing a Circuit Board in the PIX 515/515E

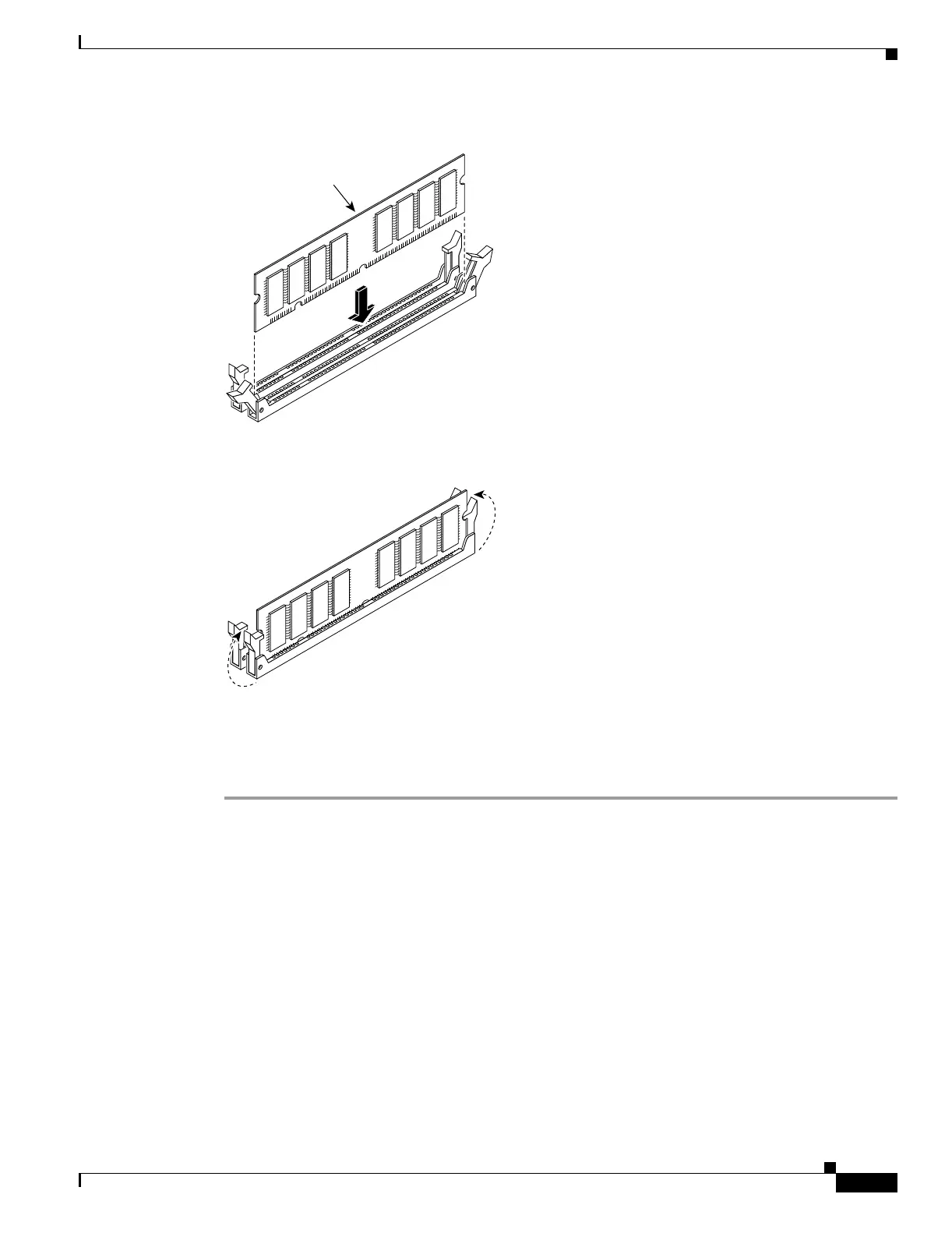

Figure 4-18 Inserting a Memory Module in the PIX 515/515E
Figure 4-19 Securing a Memory Module in the PIX 515/515E
When you finish installing new memory, replace the chassis cover. Reattach the screws. If desired, rack
mount the chassis and attach all cables and cords as discussed in previous sections. After the chassis is
installed, you can view the amount of memory in the system startup messages or with the show version
command.
Installing a Circuit Board in the PIX 515/515E
This section includes the following topics:
• Fast Ethernet Circuit Board, page 4-20
• VPN Accelerator Circuit Board, page 4-22
24299
DIMM
24300
