Chapter 5 PIX 520
Installing a Memory Upgrade

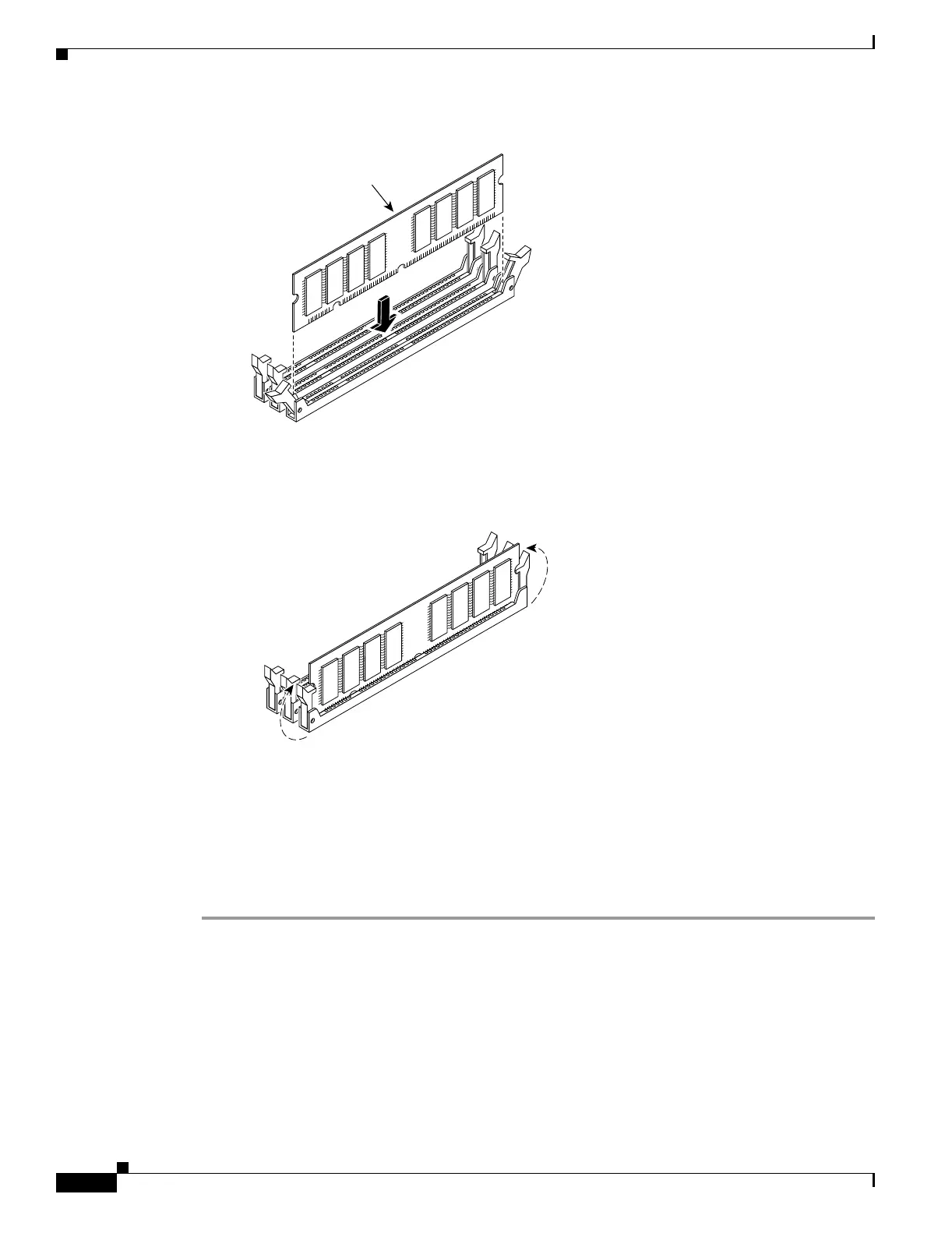

Figure 5-15 Inserting a DIMM Memory Strip in the PIX 520
Figure 5-16 Securing a DIMM Memory Strip in the PIX 520
•
When you finish inserting new RAM memory, replace the chassis cover on the chassis. Reattach the
screws. If desired, rack mount the PIX security appliance and attach all cables and cords as
discussed in previous sections. After the PIX security appliance is installed, you can view the
amount of RAM memory in the system startup messages or with the show version command in the
command reference online at:
http://cisco.com/en/US/products/sw/secursw/ps2120/prod_command_reference_list.html.
17997
DIMM
Bank 0
Bank 2
Bank 1
17998
Bank 0
Bank 2
Bank 1
