Chapter 2
Product Overview
5
Powerline AV Network Adapter
Wall-Mounting Placement
The Adapter has four wall-mount slots on its back panel.
The distance between two adjacent slots is 60 mm
(2.36 inches).
Two screws are needed to mount the Adapter.
Suggested Mounting Hardware
2-2.5 mm
4 mm 1-1.5 mm
Note: Mounting hardware illustrations are not †
true to scale.
NOTE: Linksys is not responsible for damages
incurred by insecure wall-mounting hardware.
Follow these instructions:
Determine where you want to mount the Adapter. 1.
Make sure that the wall you use is smooth, flat, dry,
and sturdy. Also make sure the location is within reach
of an electrical outlet.
Drill two holes into the wall. Make sure the holes are 2.
60 mm (2.36 inches) apart.
Insert a screw into each hole and leave 3 mm 3.
(0.12 inches) of its head exposed.
Maneuver the Adapter so the two wall-mount slots 4.
line up with the two screws.
Place the wall-mount slots over the screws and slide 5.
the Adapter down until the screws fit snugly into the
wall-mount slots.

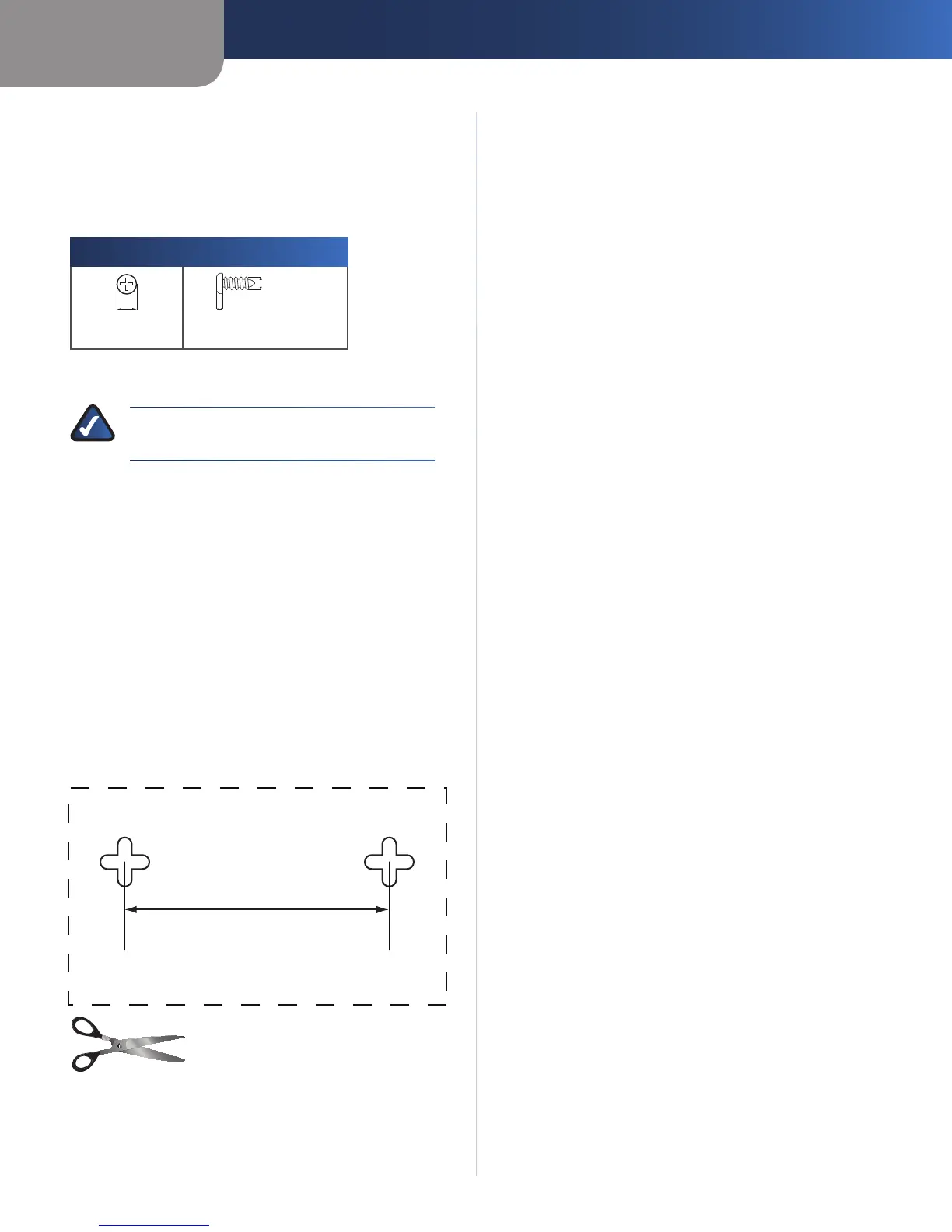

Wall Mounting Template
Print this page at 100% size, and cut along the dotted line.
Check the template’s accuracy by measuring the distance
between the wall-mount slots with a ruler. This distance
should be 60 mm. Then place the template on the wall to
drill precise spacing.
