Camera guide
Always use the provided power cable
and adapter.
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
RJ45
HDMI

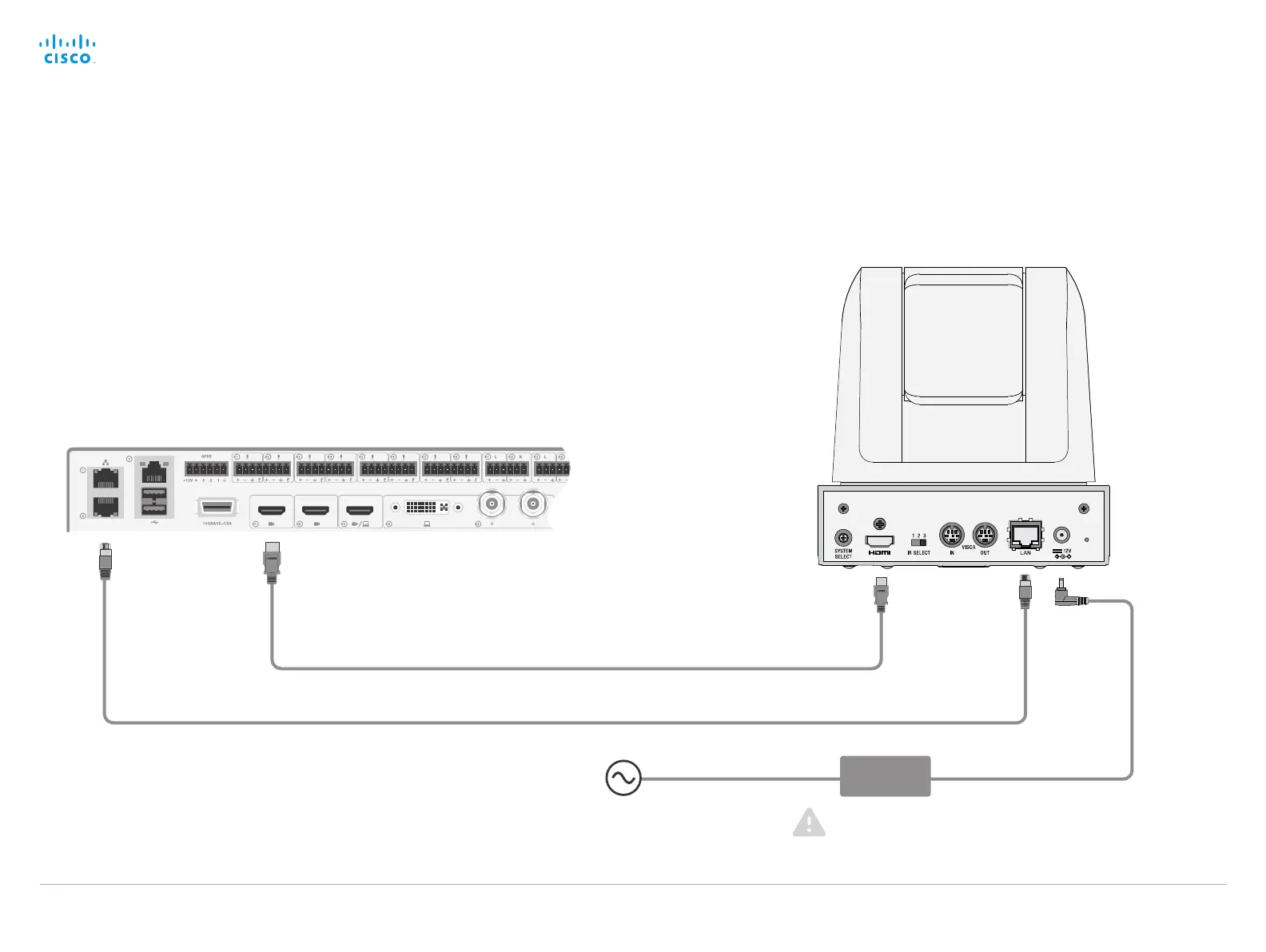

Connect PTZ-12 to SX80 Codec
• Connect the video cable (HDMI) between the camera and codec.
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to the HDMI output.
• Connect the camera control cable (Ethernet).
Connect between the codec’s 2nd or 3rd Ethernet port to the
Network port (Ethernet) on the PTZ-12 connector panel.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco
Telepresence SX80 installation guide.
