Connect PTZ 4K to Codec Pro
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
Always use the provided power cable
and adapter.
RJ45
HDMI

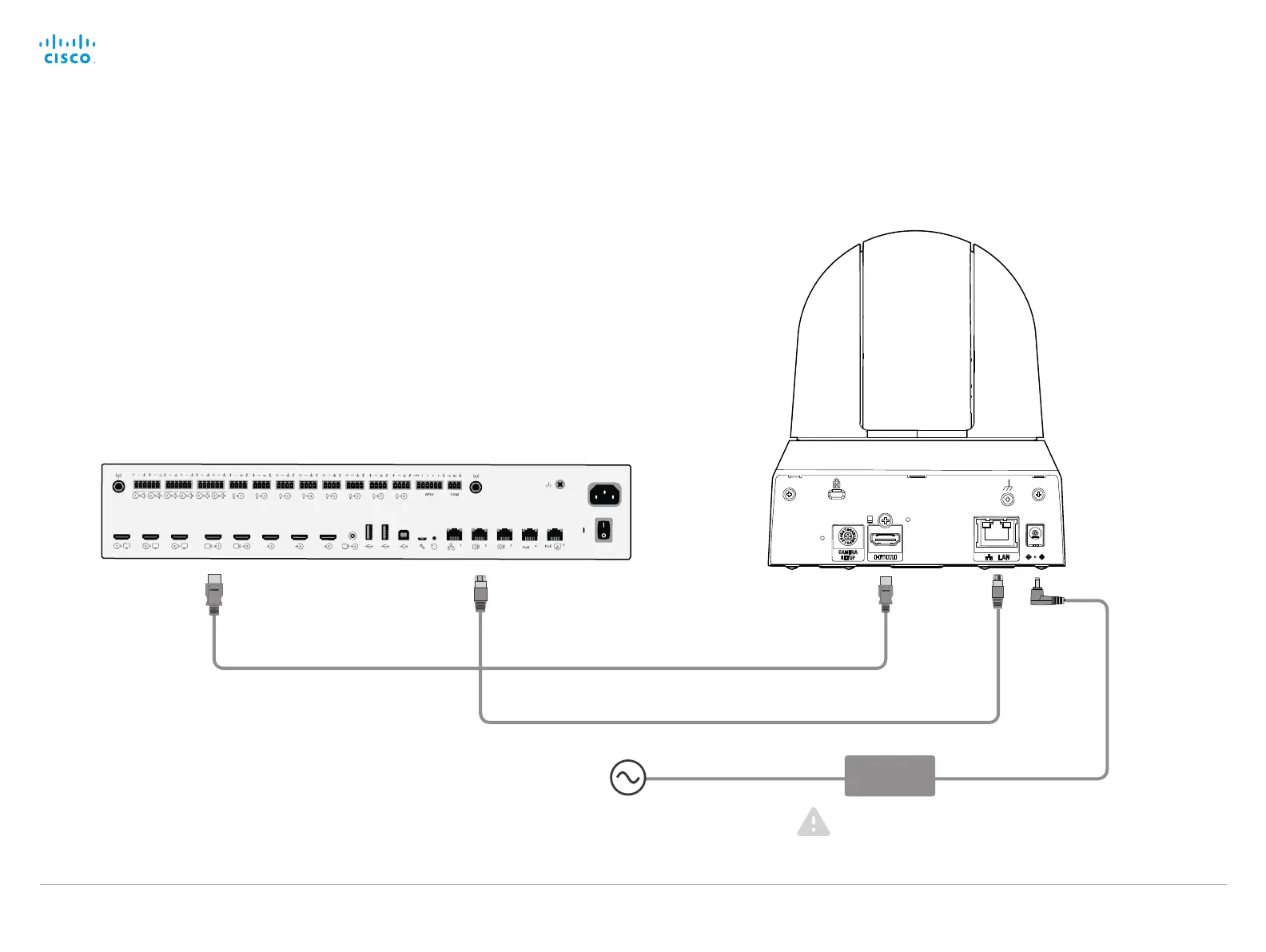

• Connect the video cable (HDMI) between the camera and codec.
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to the HDMI output.
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec.
Codec: The connector is marked with the camera control symbol.
Camera: Connect to the Ethernet port.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco Webex
Codec Pro PTZ 4K installation guide.
