Cisco Router Cisco IOS XR User Manual

3-9
Cisco IOS XR Getting Started Guide
OL-10957-02
Chapter 3 Bringing Up the Cisco IOS XR Software on a Multishelf System
Configuring the External Cisco Catalyst 6509 Switches

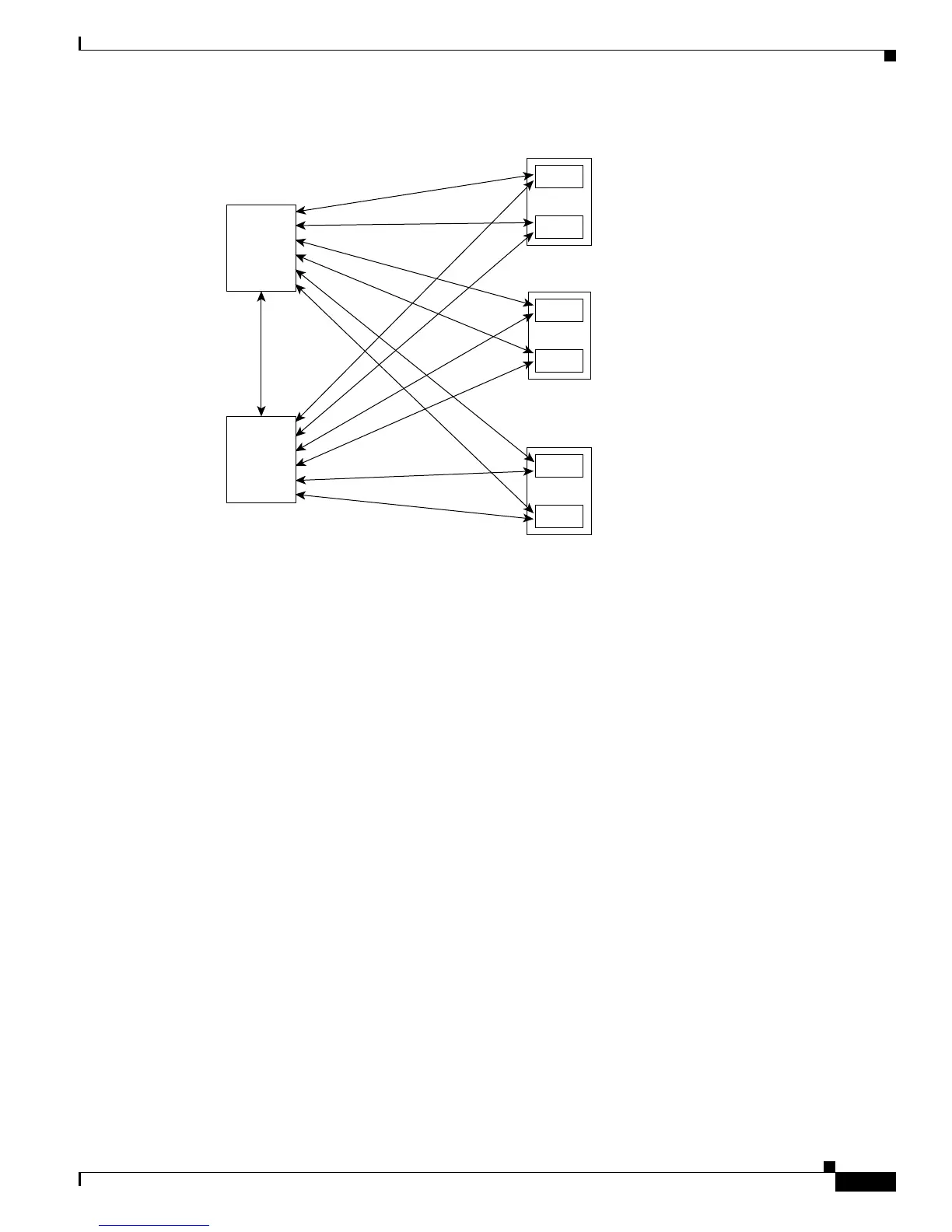

Figure 3-4 Control Ethernet Network Connections in a Single-FCC System
Prerequisites
The following sections describe the software and hardware requirements for bringing up Catalyst 6509
switches in a multishelf system.
Software Requirements
Each Cisco Catalyst 6509 switch requires the same software:
• Cisco IOS Release 12.2(14r)S9 with SUP720 Supervisor Engine controller module
• System Bootstrap (ROMMON), Version 1.3 or later
• BOOTLDR: s72033_rp Software (s72033_rp-PSV-M), Version 12.2(17d)SXB7
Both switches should use the same software. The filename of the software is
72033-psv-mz.122-17d.SXB8.bin, and is available on CCO at:
http://www.cisco.com/kobayashi/sw-center/lan/cat6000.shtml
Hardware Requirements
• Two external Cisco Catalyst 6509 switches correctly cabled to the Cisco CRS-1 multishelf router.
Catalyst
Ethernet
Switch
Line Card
Chassis
138147
RP
RP
RP
RP
Fabric Card
Chassis
SCGE
SCGE
Line Card
Chassis
Catalyst
Ethernet
Switch
