Appendix B Connector Pin Assignments
Cable Pin Assignments

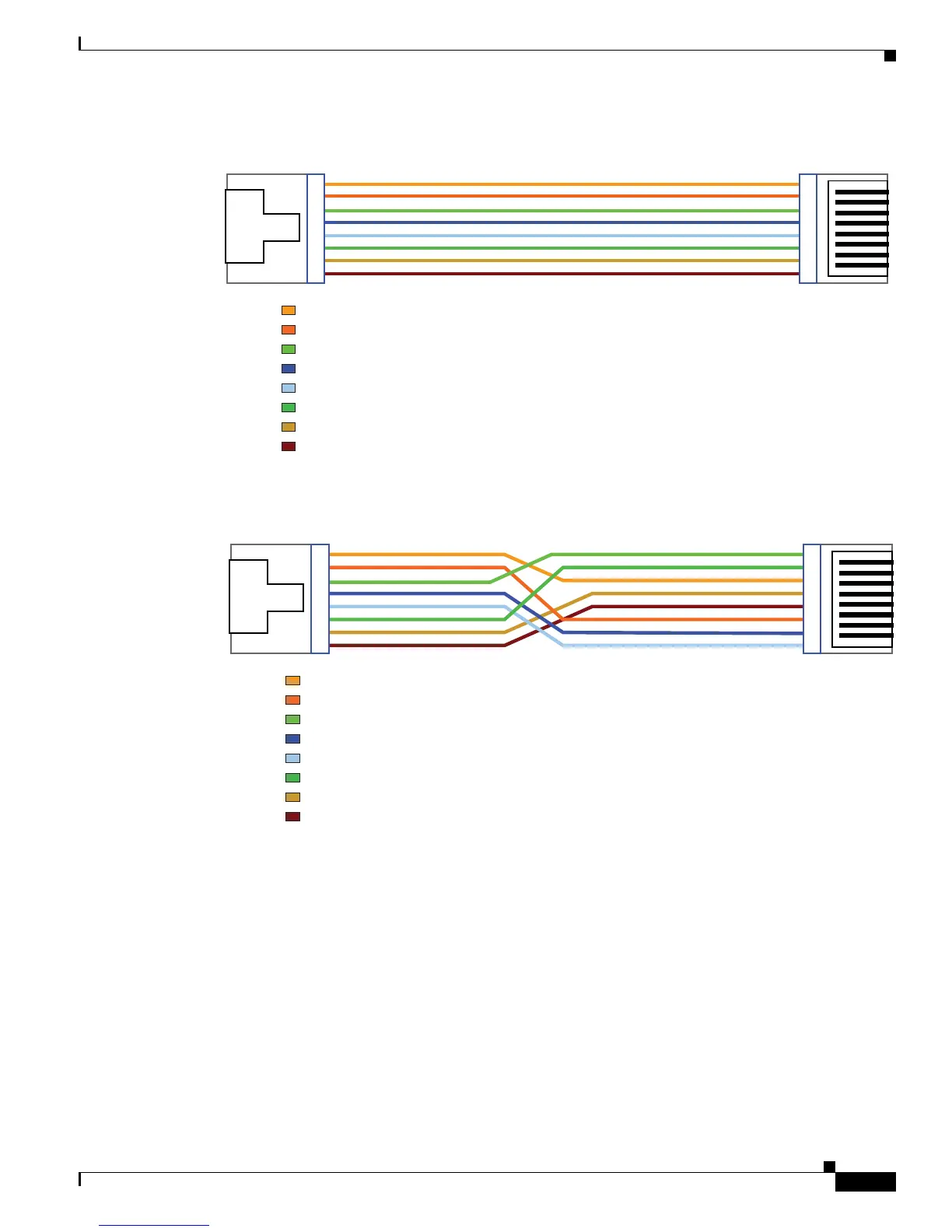

Figure B-4 Pin Assignments and Wiring for an RJ-45 Straight-Through Cable
Figure B-5 Pin Assignments and Wiring for an RJ-45 Crossover Cable
211778
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Brown
White/Brown
White/Blue
White/Green
White/Orange
Orange
Blue
Green
211779
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Brown
White/Brown
White/Blue
White/Green
White/Orange
Orange
Blue
Green
