Smart Network Application (SNA)
Services
528
Cisco 350, 350X and 550X Series Managed
Switches, Firmware Re
lease 2.4, ver 0.4
25

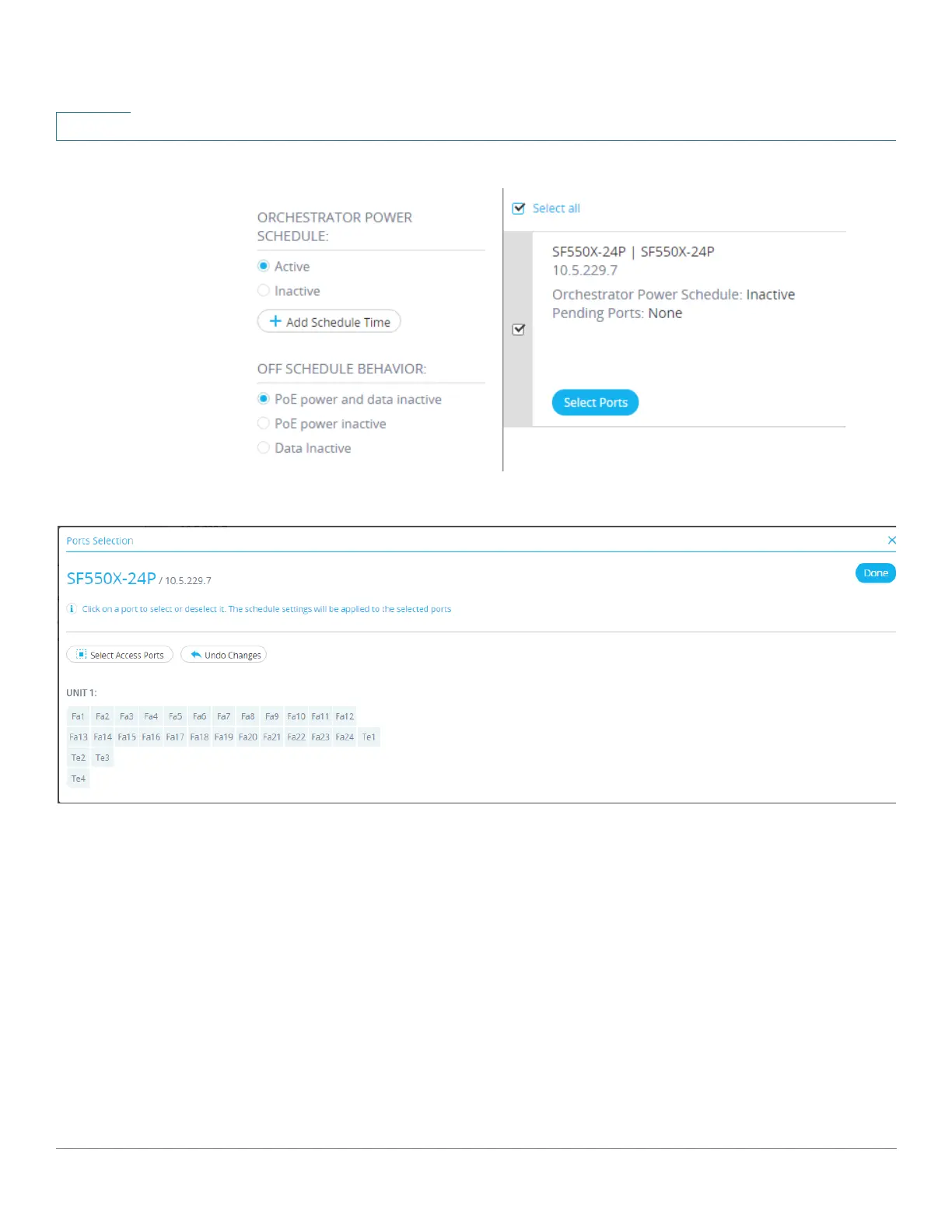

The following is displaye
d:
STEP
3
Click
Select Ports
.
STEP
4
Select one or more ports and click
Done
.
753
755
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1: Quick Getting Started
12
Before You Begin
12
Rack Mounting Switch
13
Power over Ethernet Considerations
14
Configuring Your Switch Using the Console Port
21
USB Port
24
Chapter 2: General Information
34
Basic or Advanced Display Mode
34
Quick Start Device Configuration
36
Interface Naming Conventions
37
Window Navigation
38
Search Facility
41
Chapter 3: Dashboard
42
Grid Management
42
System Health
44
Resource Utilization
45
Identification
46
Port Utilization
47
Poe Utilization
48
Latest Logs
49
Suspended Interfaces
49
Traffic Errors
52
Chapter 4: Configuration Wizards
53
Getting Started Wizard
53
VLAN Configuration Wizard
55
ACL Wizard
56
Chapter 5: Status and Statistics
59
System Summary
60
CPU Utilization
62
Interface
63
Etherlike
64
Port Utilization
65
Gvrp
65
802.1X Eap
67
Acl
68
Hardware Resource Utilization
69
Health and Power
70
Switched Port Analyzer (SPAN)
77
Diagnostics
81
Rmon
85
View Logs
96
Chapter 6: Administration
99
System Settings
100
User Accounts
101
Idle Session Timeout
103
Time Settings
103
System Log
103
File Management
107
Plug-N-Play (PNP)
107
Reboot
111
Discovery - Bonjour
113
Discovery - LLDP
114
Discovery - CDP
114
Locate Device
114
Ping
115
Traceroute
116
Chapter 7: Administration: File Management
118
System Files
118
Firmware Operations
120
File Operations
124
File Directory
132
DHCP Auto Configuration/Image Update
132
Chapter 8: Administration: Stack Management
142
Overview
142
Types of Units in Stack
144
Stack Topology
145
Unit ID Assignment
147
Master Selection Process
149
Stack Changes
149
Unit Failure in Stack
151
Stack Ports
153
Software Auto Synchronization in Stack
155
Stack Management
159
Chapter 9: Administration: Time Settings
162
System Time Configuration
163
SNTP Modes
164
System Time
165
SNTP Unicast
167
SNTP Multicast/Anycast
170
SNTP Authentication
170
Time Range
171
Recurring Time Range
173
Chapter 10: Administration: Discovery
174
Bonjour
174
LLDP and CDP
175
Discover - LLDP
177
Discovery - CDP
198
Chapter 11: Port Management
207
Workflow
207
Port Settings
208
Error Recovery Settings
212
Loopback Detection Settings
213
Link Aggregation
215
Poe
231
Green Ethernet
240
Chapter 12: Smartport
248
Overview
248
How the Smartport Feature Works
254
Auto Smartport
254
Error Handling
258
Default Configuration
258
Relationships with Other Features
259
Common Smartport Tasks
259
Configuring Smartport Using the Web-Based Interface
261
Built-In Smartport Macros
266
Chapter 13: VLAN Management
277
Regular Vlans
285
GVRP Settings
297
Voice VLAN
304
Chapter 14: Spanning Tree
324
STP Flavors
324
STP Status and Global Settings
325
STP Interface Settings
327
Multiple Spanning Tree Overview
332
MSTP Properties
332
Vlans to a MSTP Instance
333
MSTP Instance Settings
334
MSTP Interface Settings
335
Chapter 15: Managing MAC Address Tables
338
Static Addresses
339
Dynamic Addresses
340
Chapter 16: Multicast
342
Multicast Forwarding Overview
342
Properties
348
MAC Group Address
349
IP Multicast Group Address
350
Ipv4 Multicast Configuration
352
Ipv6 Multicast Configuration
358
IGMP/MLD Snooping IP Multicast Group
364
Multicast Router Port
365
Forward All
365
Unregistered Multicast
366
Chapter 17: IP Configuration
368
Overview
368
Loopback Interface
370
Ipv4 Management and Interfaces
370
Ipv6 Management and Interfaces
399
Domain Name System
424
Chapter 18: IP Configuration: Ripv2
430
Overview
430
How Rip Operates on the Device
431
Configuring RIP
436
Access Lists
440
Chapter 19: IP Configuration: VRRP
443
Overview
443
VRRP Topology
444
Configurable Elements of VRRP
446
Configuring VRRP
449
Chapter 20: IP Configuration: SLA
453
Overview
453
Using SLA
456
Chapter 21: Security
460
Radius
465
Password Strength
476
Management Access Method
481
Management Access Authentication
486
SSL Server
488
SSH Client
491
TCP/UDP Services
491
Storm Control
492
Port Security
496
802.1X Authentication
498
Denial of Service Prevention
509
Chapter 22: Security: 802.1X Authentication
519
Overview
519
Properties
535
Port Authentication
537
Host and Session Authentication
540
Authenticated Hosts
541
Chapter 23: Security: Secure Sensitive Data Management
548
Introduction
548
SSD Management
549
SSD Rules
549
SSD Properties
554
Configuration Files
557
SSD Management Channels
561
Menu CLI and Password Recovery
562
Configuring SSD
562
Chapter 24: Security: SSH Server
566
Overview
566
Common Tasks
567
SSH User Authentication
568
SSH Server Authentication
569
Chapter 25: Security: SSH Client
571
Overview
571
SSH User Authentication
577
SSH Server Authentication
578
Change User Password on the SSH Server
580
Chapter 26: Security: Ipv6 First Hop Security
581
Ipv6 First Hop Security Overview
582
Router Advertisement Guard
586
Neighbor Discovery Inspection
586
Dhcpv6 Guard
587
Neighbor Binding Integrity
587
Ipv6 Source Guard
590
Attack Protection
591
Policies, Global Parameters and System Defaults
593
Common Tasks
594
Default Settings and Configuration
596
Configuring Ipv6 First Hop Security through Web GUI
597
Chapter 27: Access Control
615
Overview
615
MAC-Based Acls Creation
619
Ipv4-Based ACL Creation
621
Ipv6-Based ACL Creation
626
ACL Binding
629
Chapter 28: Quality of Service
632
Qos Features and Components
633
General
637
Qos Basic Mode
648
Qos Advanced Mode
651
Qos Statistics
663
Chapter 29: SNMP
666
Overview
666
Engine ID
674
Views
676
Groups
677
Users
679
Communities
681
Trap Settings
683
Notification Recipients
683
Notification Filter
688
Chapter 30: Smart Network Application (SNA)
689
SNA Sessions
690
SNA Graphics
691
Top Right-Hand Menu
693
Topology View
694
Right-Hand Information Panel
703
Operations
717
Overlays
722
Tags
725
Search
729
Dashboard
731
Notifications
733
Device Authorization Control (DAC)
736
DAC Workflow
736
