53
Chapter 5: Configuring the Switch through the Web Utility
DiffServ
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
DiffServ Policy Map
This function creates a policy map that can be attached to multiple interfaces.
Modify Name and Description. Configures the name and a brief description of a policy map. (Range: 1-32
characters for the name; 1-256 characters for the description)
Edit Classes. Opens “Policy Rule Settings” for the selected class entry. Modify the criteria used to service
ingress traffic.
Add Policy. Opens “Policy Configuration”. Enter a policy name and description and click Add to open “Policy Rule
Settings”. Enter the criteria used to service ingress traffic.
Remove Policy. Deletes a specified policy.
Click Add Policy to create a new policy, or select a policy and click Edit Classes to change the policy rules of the
selected policy, or Remove Policy to delete the policy.
Adding a Policy
Policy Name. Name of policy map. (Range: 1-32 characters)
Description. A brief description of a policy map. (Range: 1-256 characters)
Add. Adds the specified policy.
Back. Returns to previous screen without making any changes.
Enter the policy name and description into the textfields provided in the Add Policy screen, then click Add
Setting Rules
Class Name. Name of class map.
Action. Shows the service provided to ingress traffic by setting a CoS, DSCP, or IP Precedence value in a
matching packet.

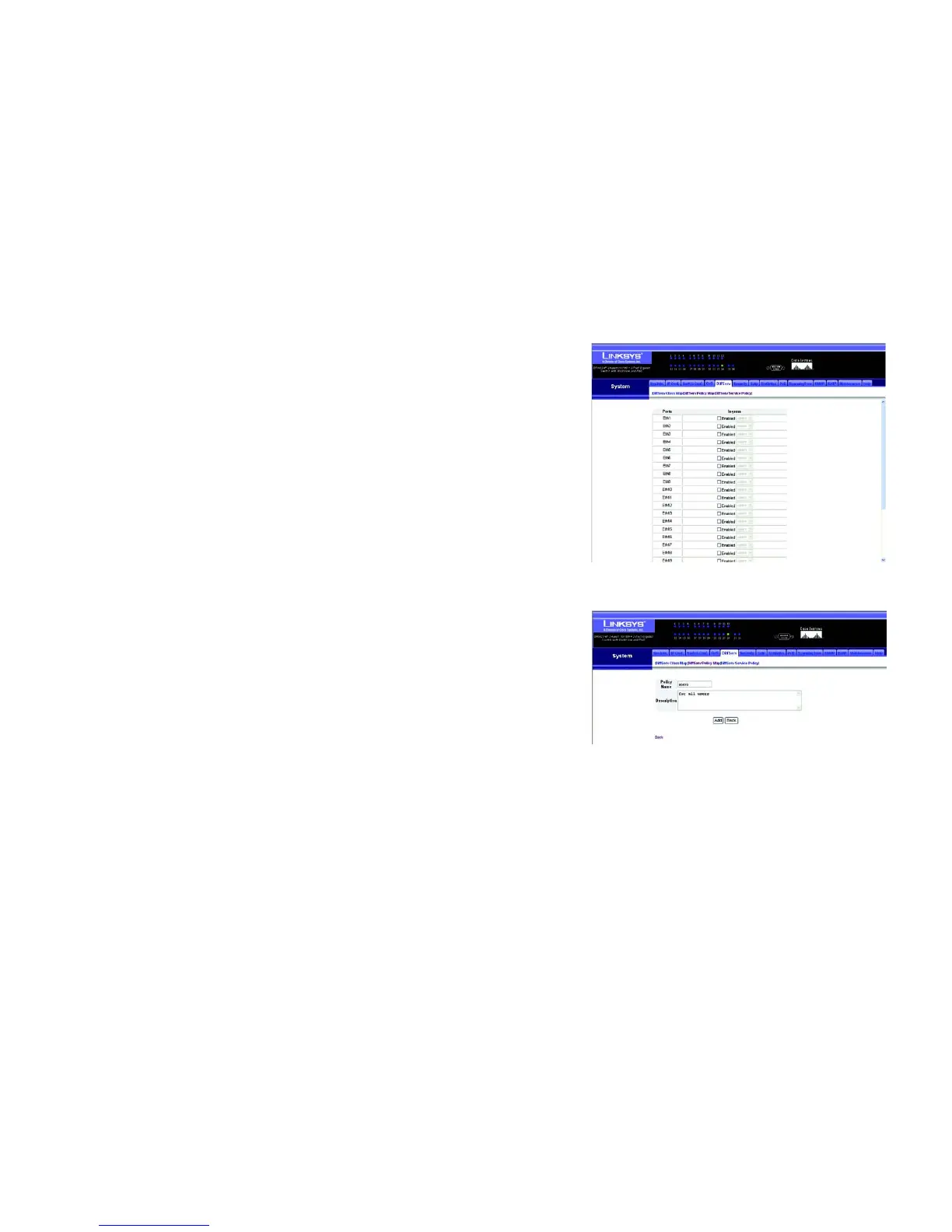

Figure 5-35: DiffServ - Diffserv Policy Map
Figure 5-36: DiffServ Policy Map - Adding a Policy
