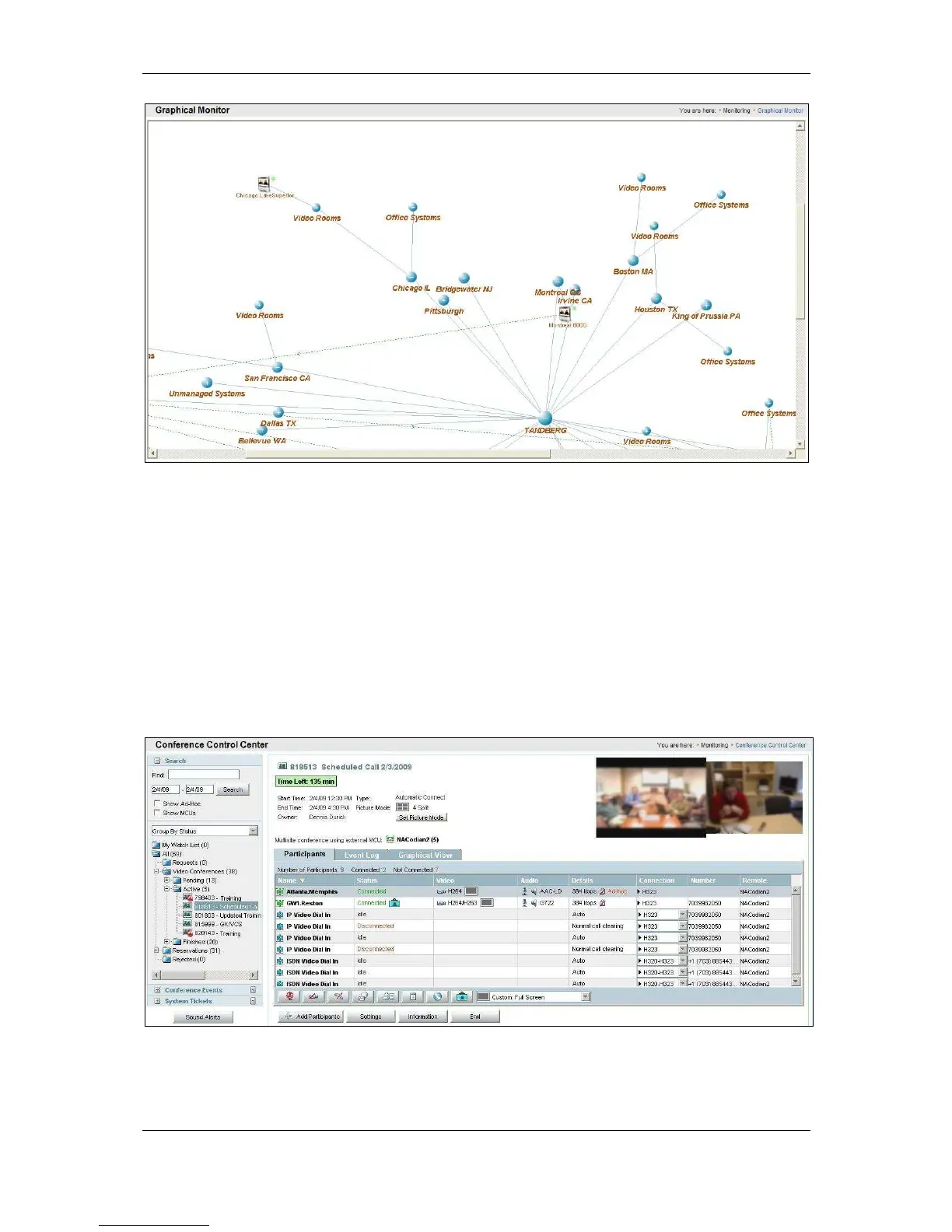

Figure 43 Graphical Map Monitor
Graphical map monitor
The Graphical Map Monitor is a variant of the Graphical Monitor in which, instead of all systems
being shown on one page, each folder has its own page and administrators can overlay graphics
behind the icons and images; for example, to show geography or system location information.
Monitoring an ongoing scheduled call
Using the Conference Control Center, it is possible to get an overview of all ongoing conferences in
a single location. CCC has information about upcoming calls, and performs diagnostics on ongoing
conferences to alert you (using sound and colored icons) about their status. These diagnostics allow
conference operators to monitor large numbers of conferences across the entire network
simultaneously without having to manage each device separately.
From the CCC View, the list of conferences is provided on the right, color coded based on their current
status. Clicking on a conference in the Details panel on the right.
Figure 44 The Details panel shows the status, video snapshots, activity logs.
In the Details panel, you can view the status, video snapshots, activity logs from the call, and have full
access to interact with the call participants.
