Cisco UCS S3260 Service Note

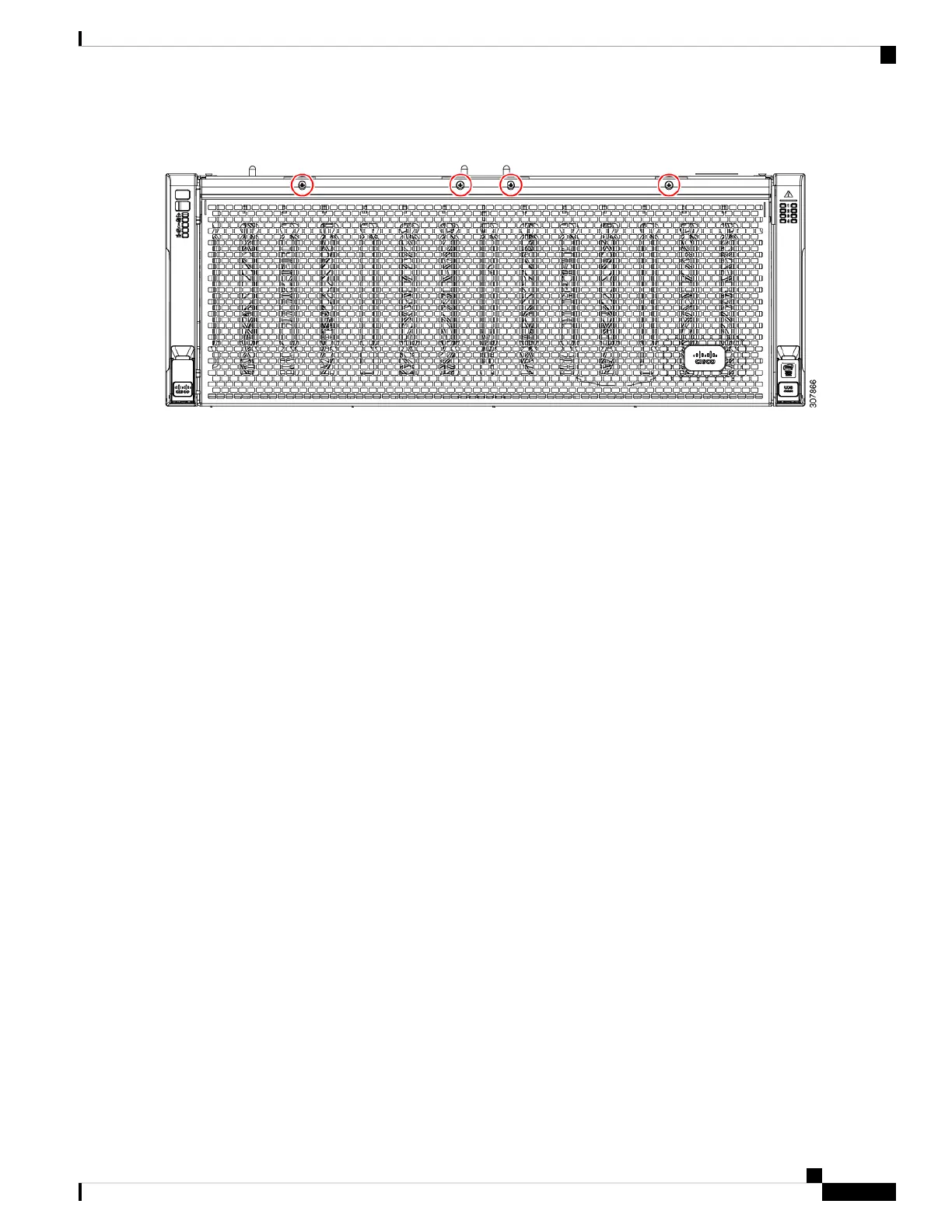

Figure 6: Location of Drive Cage Mounting Screws on Chassis Front Panel
Step 7 Open the double doors for the drive cage.
Step 8 Remove the drive cage.
a) Disconnect the motherboard sensor connector from the motherboard by hand.
b) Using a long standard screwdriver, disconnect the ribbon cable from the each of the FPC motherboard connectors
by swiping the connector towards the chassis front panel.
The FPC connectors have small hinges that open by pivoting toward the chassis front panel. When a
connector opens, its ribbon cable is disconnected. The ribbon cable is attached to the inside of the drive
cage, which can add resistance when you remove the drive cage.
Note
c) Using a screwdriver, rotate each of the screws counter-clockwise until it disengages.
d) Lift the drive cage out of the chassis.
If the ribbon cables for the FPC connectors cause resistance when you lift the drive cage, pull the cables to detach
them from the drive cage.
The following image shows the screws and components.
Cisco UCS S3260 Storage Server PCBA Disassembly For Commission Regulation (EU) 2019/424 Service Note
9
Recycling the PCB Assembly (PCBA)
Recycling the PCB Assembly (PCBA)

Cisco UCS S3260 Specifications

General

Drive Bays	Up to 56
Maximum Storage Capacity	Up to 600 TB
Power Supply	Up to 4 hot-plug power supplies
Product Type	Storage Server Chassis
Supported Drives	SAS, SATA
Processors	Up to two Intel Xeon Scalable processors
Memory	Up to 1.5 TB DDR4 RAM
Power Supplies	Redundant 80+ Platinum power supplies
Total Drive Bays	56
Management	Cisco UCS Manager
Compatibility	Cisco UCS system
Form Factor	4U rack
