Cisco XR 12000 Series Installation Guide

35
Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Removing and Installing SFP Modules

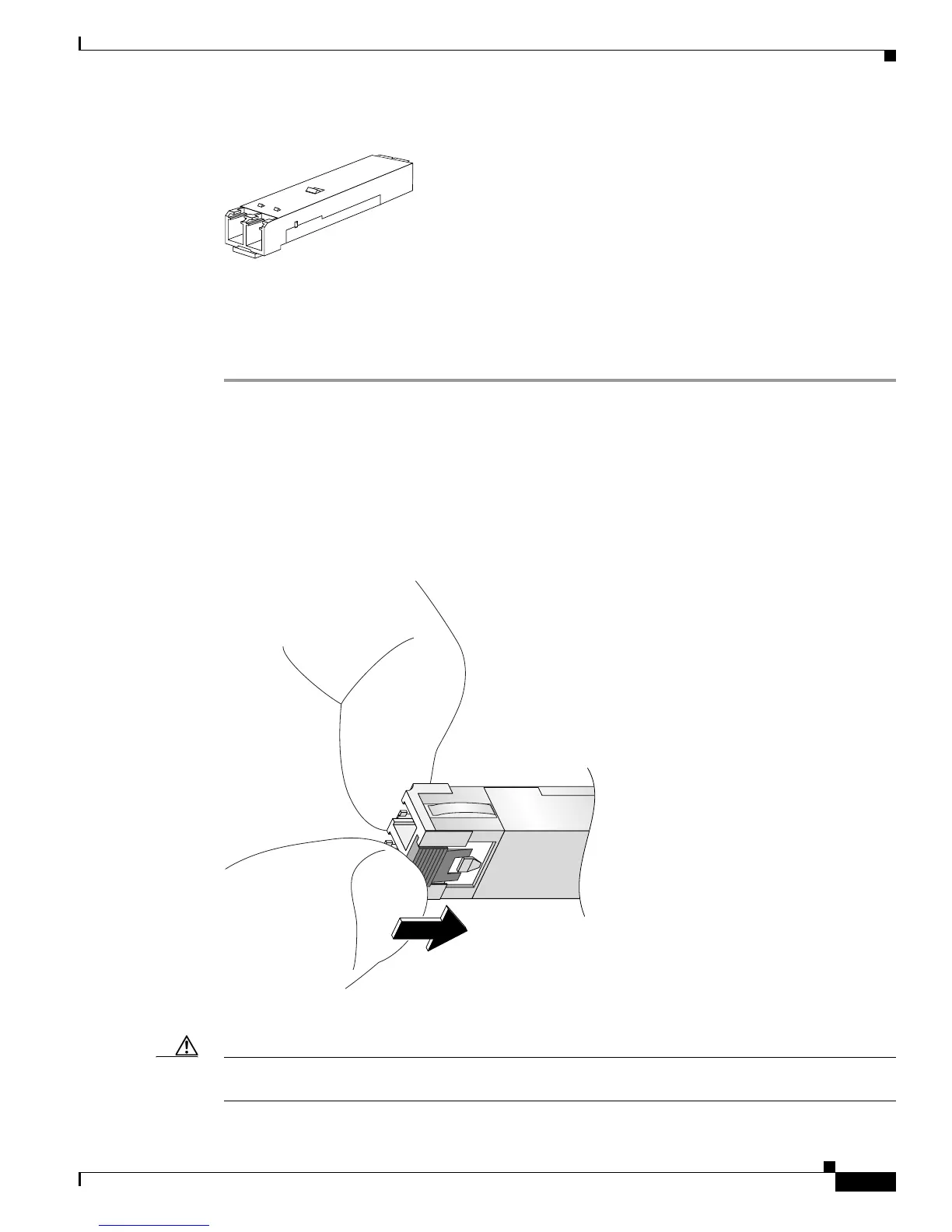

Figure 26 Slide Tab SFP Module
Removing a Slide Tab SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to
the ports on the line card.
Step 3 Grasp the SFP module between your thumb and index finger.
Step 4 With your thumb, push the slide tab on the bottom front of the SFP module in the direction of the line
card to disengage the module from the line card port. (See Figure 27.)
Figure 27 Disengaging the Slide Tab
Step 5 With the tab still pushed, carefully pull the SFP module from the port as shown in Figure 28.
Caution You must disengage the SFP module by pushing on the slide tab before you can pull out the SFP module.
If you pull on the SFP module without disengaging the tab, you can damage the SFP module.
84651
84652
