Cisco XR 12000 Series Installation Guide

36
Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Removing and Installing SFP Modules

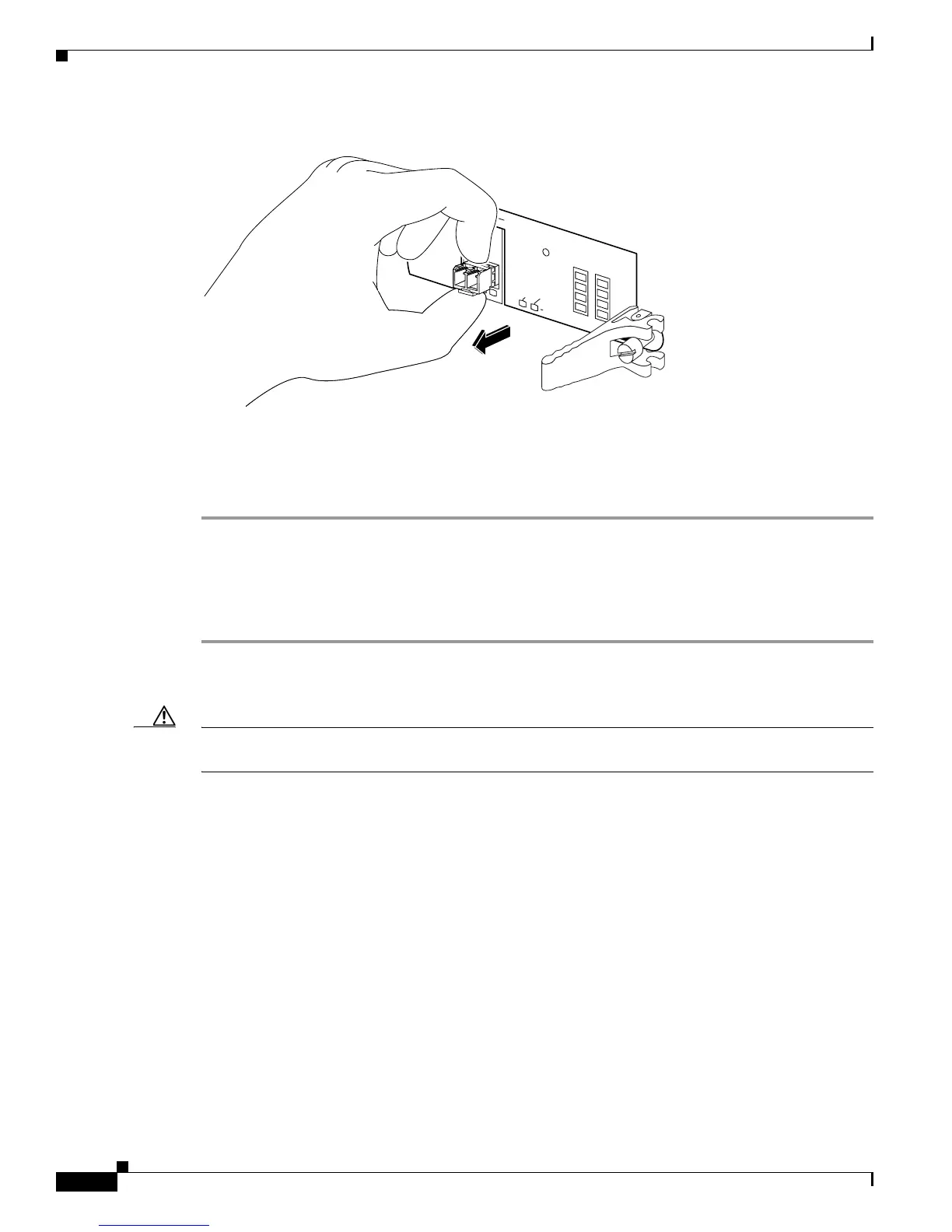

Figure 28 Removing a Slide Tab SFP Module
Step 6 Place the removed SFP module on an antistatic mat, or immediately place it in a static shielding bag if
you plan to return it to the factory.
Step 7 Protect your line card by inserting clean SFP module cage covers into the optical module cage when
there is no SFP module installed.
Installing a Slide Tab SFP Module
To install this type of SFP module into a line card, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Hold the SFP module with the hardware label facing up.
Caution The SFP module must be inserted with the hardware label facing up to avoiding damaging the module
or the line card.
Step 3 Insert the SFP module into the appropriate slot and gently push on it until it snaps into the slot tightly.
(See Figure 29.)
84650
ACTIVE
CARRIER
RX PACKET
WRAP
PASS THRU
3
4OC48/SRP-SFP
