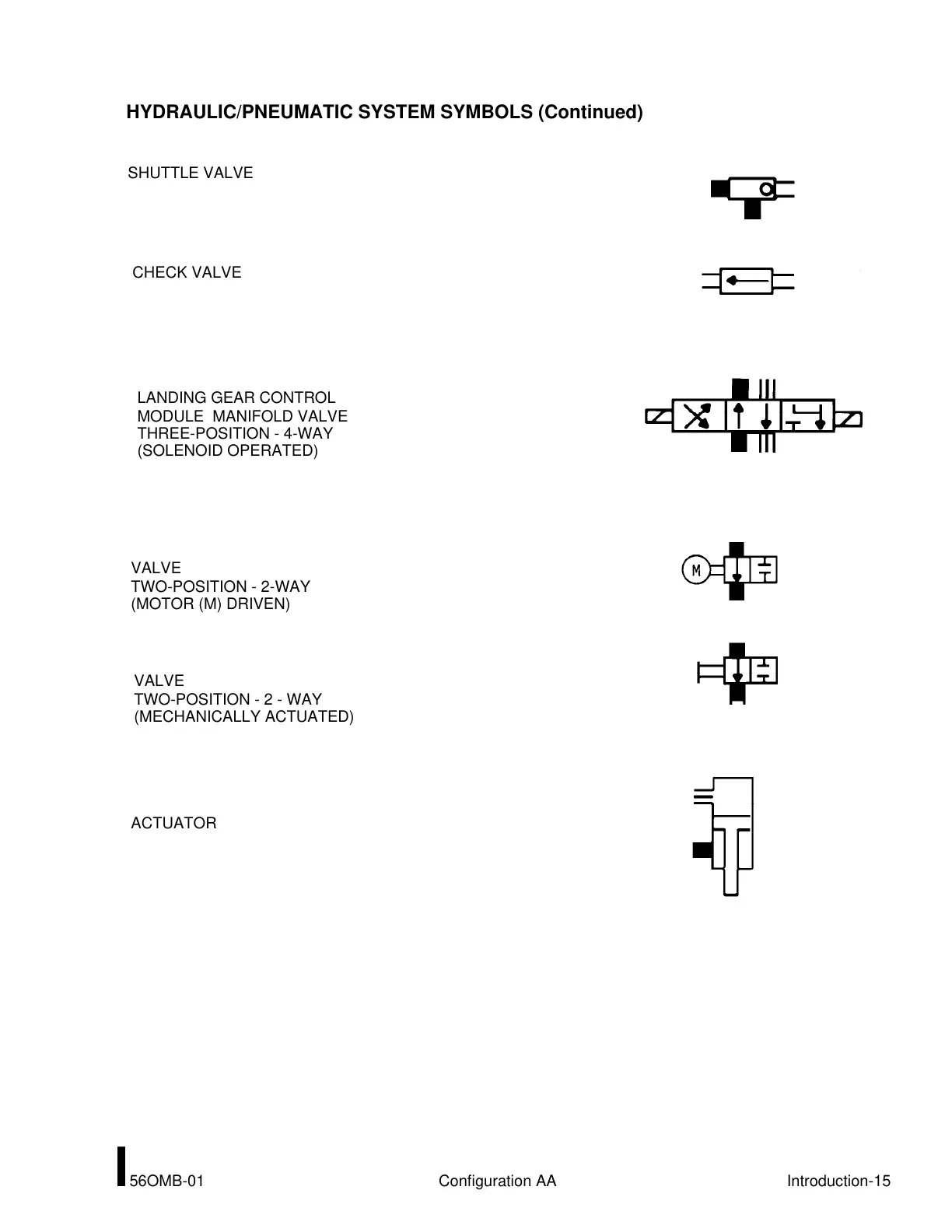

HYDRAULIC/PNEUMATIC SYSTEM SYMBOLS (Continued)
SHUTTLE VALVE
CHECK VALVE
LANDING GEAR CONTROL
MODULE MANIFOLD VALVE
THREE-POSITION - 4-WAY
(SOLENOID OPERATED)
VALVE
TWO-POSITION - 2-WAY
(MOTOR (M) DRIVEN)
VALVE
TWO-POSITION - 2 - WAY
(MECHANICALLY ACTUATED)
ACTUATOR
I 56OMB-01 Configuration AA Introduction-15
