Citation Encore 560 - Engine Oil System Schematic

SECTION II
AIRPLANE AND SYSTEMS
MODEL 560
                                                                  

                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                


                                                                

                                                                  
DEFINITIONS:
AGB - ACCESSORY GEAR BOX
MOP - MAIN OIL PRESSURE (DIFFERENTIAL)
MOT - MAIN OIL TEMPERATURE
BRG - BEARING
                                                                                                                              

                                                                                                                            


                                                                                                                            


                                                                                                                            


                                                                                                                            

                                                                                                                              

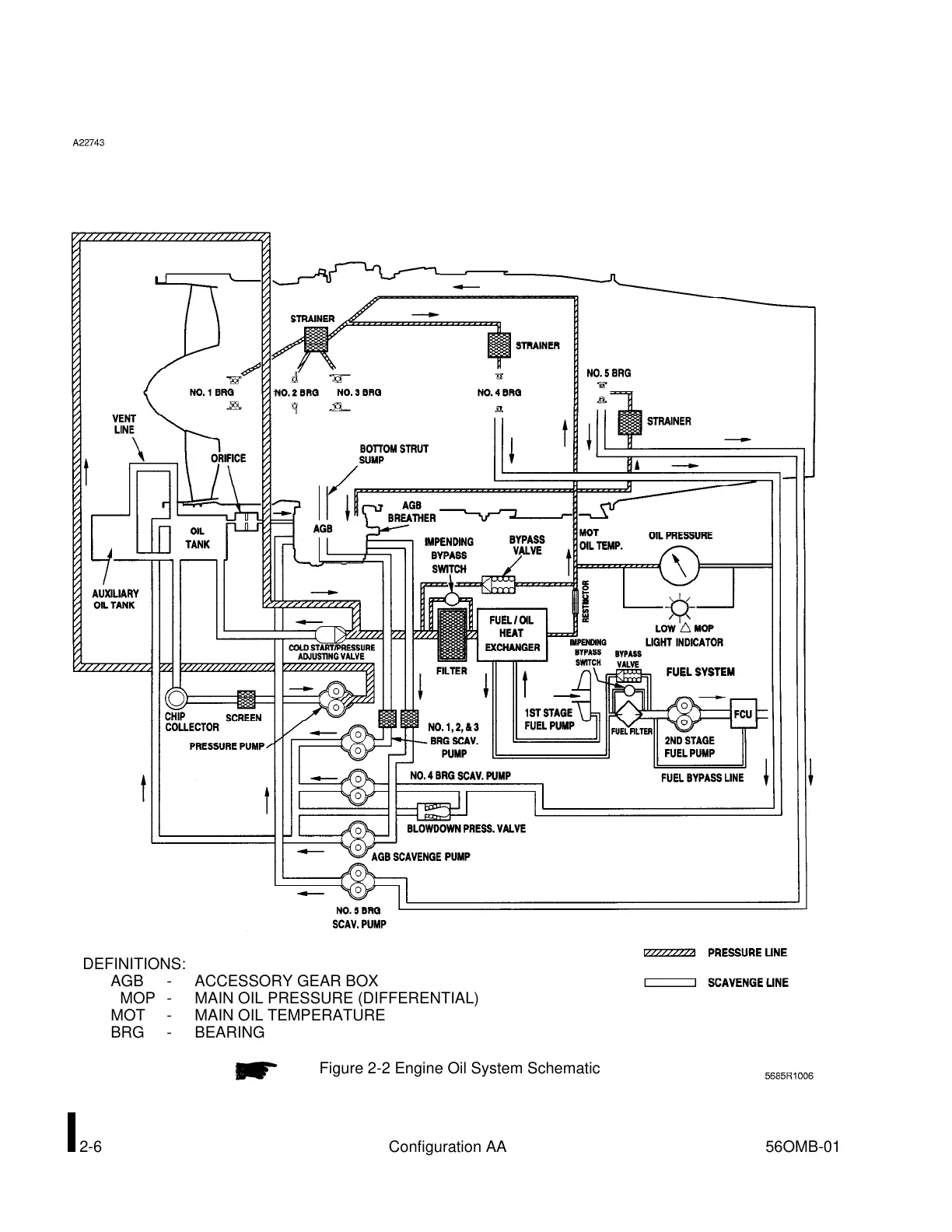

Figure 2-2 Engine Oil System Schematic
I 2-6 Configuration AA 56OMB-01
