Citation Encore 560 - Hydraulic System Schematic

SECTION II
AIRPLANE AND SYSTEMS
MODEL 560
                                                                                                                              

                                                                                                                            


                                                                                                                            


                                                                                                                            


                                                                                                                            


                                                                                                                            

                                                                                                                              

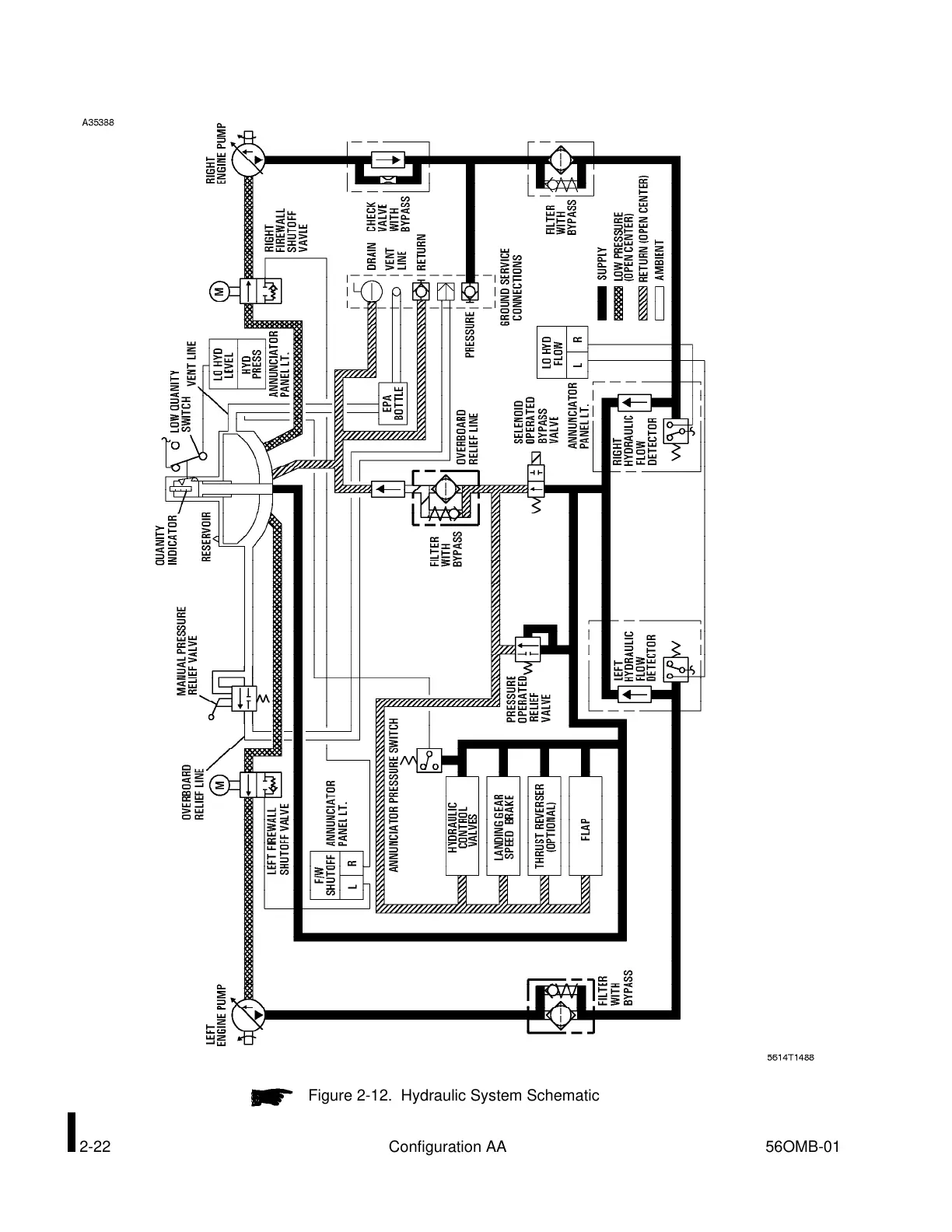

Figure 2-12. Hydraulic System Schematic
I 2-22 Configuration AA 56OMB-01
