SECTION IV
MODEL 560 OPERATING INFORMATION
           

         

           
5610X1001
                                             

                                           


                                           


                                           


                                           


                                           


                                           


                                           

                                             
NOTE: SHADED AREAS INDICATE
ESSENTIAL AREAS TO BE
ANTI-ICED.
                                                                             

                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           


                                                                           

                                                                             
MINIMUM DIRECT
SPRAY AREAS: ENGINE INLETS, ENGINE EXHAUST,
RAM AIR INLETS, BRAKES, PITOT HEADS,
STATIC PORTS, WINDSHIELD,
CABIN WINDOWS, AND AOA VANES.

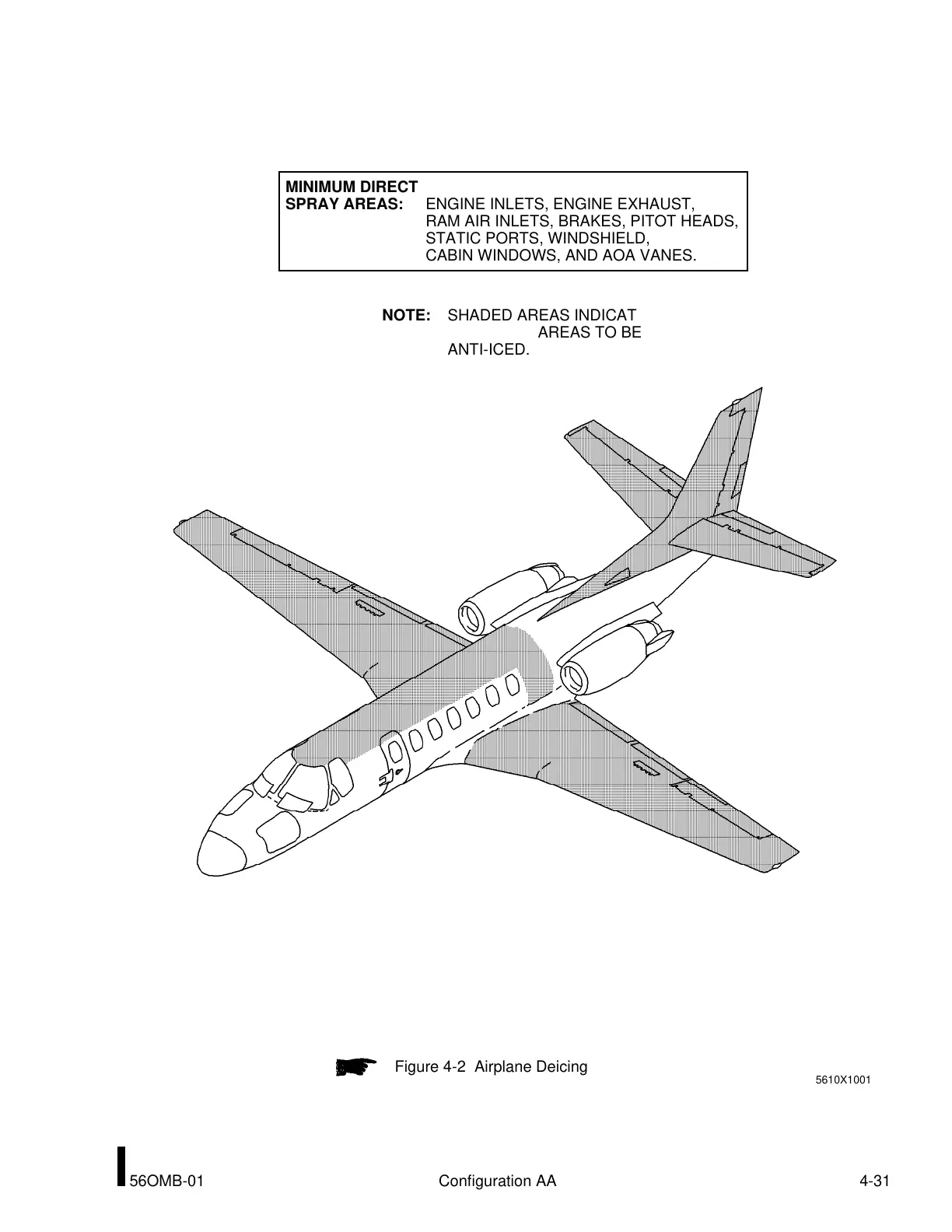

Figure 4-2 Airplane Deicing
I 56OMB-01 Configuration AA 4-31
