MODEL 560 INTRODUCTION
                                                                                                                              

                                                                                                                            


                                                                                                                            


                                                                                                                            


                                                                                                                            


                                                                                                                            

                                                                                                                              

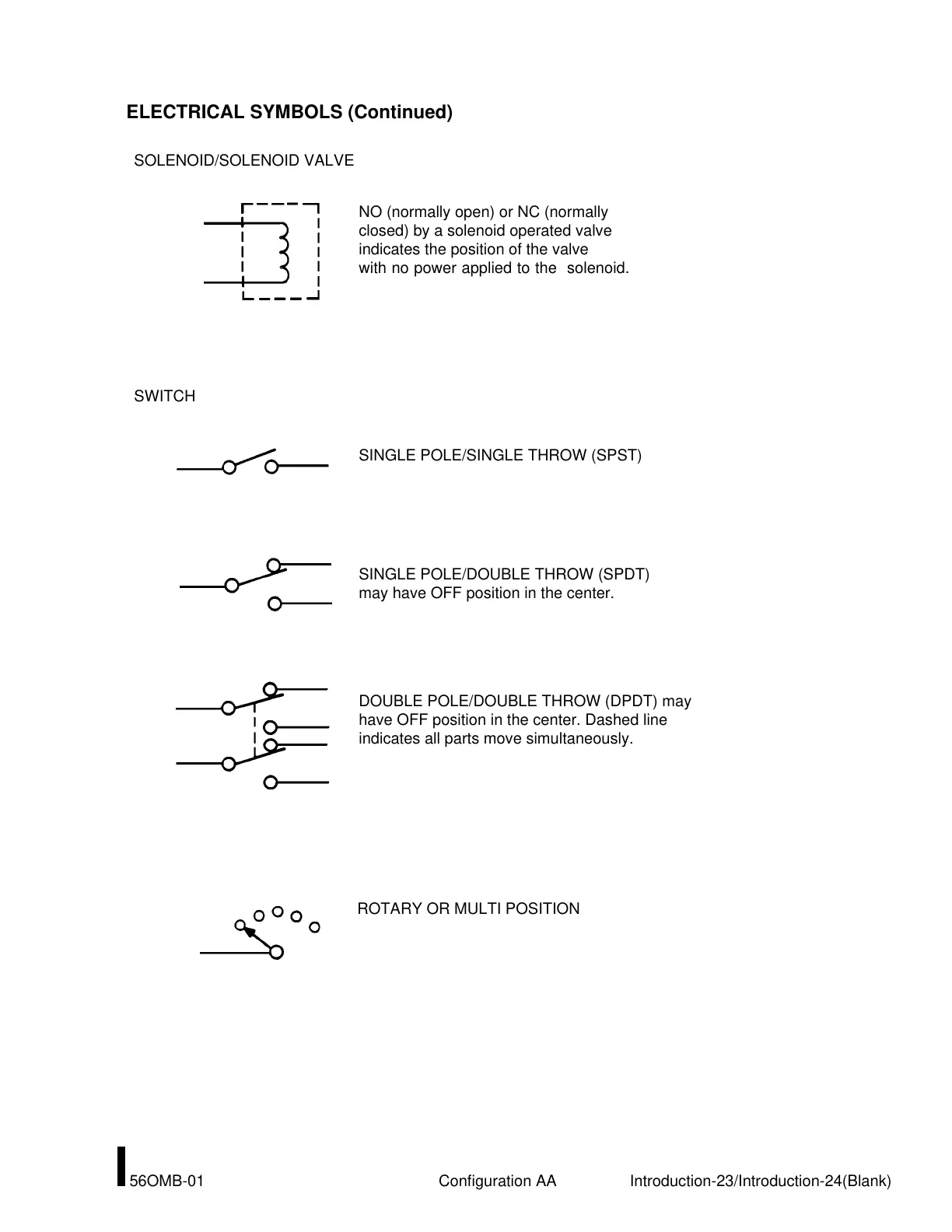

ELECTRICAL SYMBOLS (Continued)
ROTARY OR MULTI POSITION
DOUBLE POLE/DOUBLE THROW (DPDT) may
have OFF position in the center. Dashed line
indicates all parts move simultaneously.
SWITCH
SINGLE POLE/SINGLE THROW (SPST)
SINGLE POLE/DOUBLE THROW (SPDT)
may have OFF position in the center.
NO (normally open) or NC (normally
closed) by a solenoid operated valve
indicates the position of the valve
with no power applied to the solenoid.
SOLENOID/SOLENOID VALVE
I 56OMB-01 Configuration AA Introduction-23/Introduction-24(Blank)
