5. PARALLEL INTERFACE
5.1 Specifications
(1) Data input system : 8 bit parallel (DATA 1-8)
(2) Control signal : ACK, STB, BUSY, RESET,
(3) Compatible Connector : Printer side : 57LE-40360 (AMPHENOL or equivalent)
Cable side : 57-30360 (AMPHENOL or equivalent)

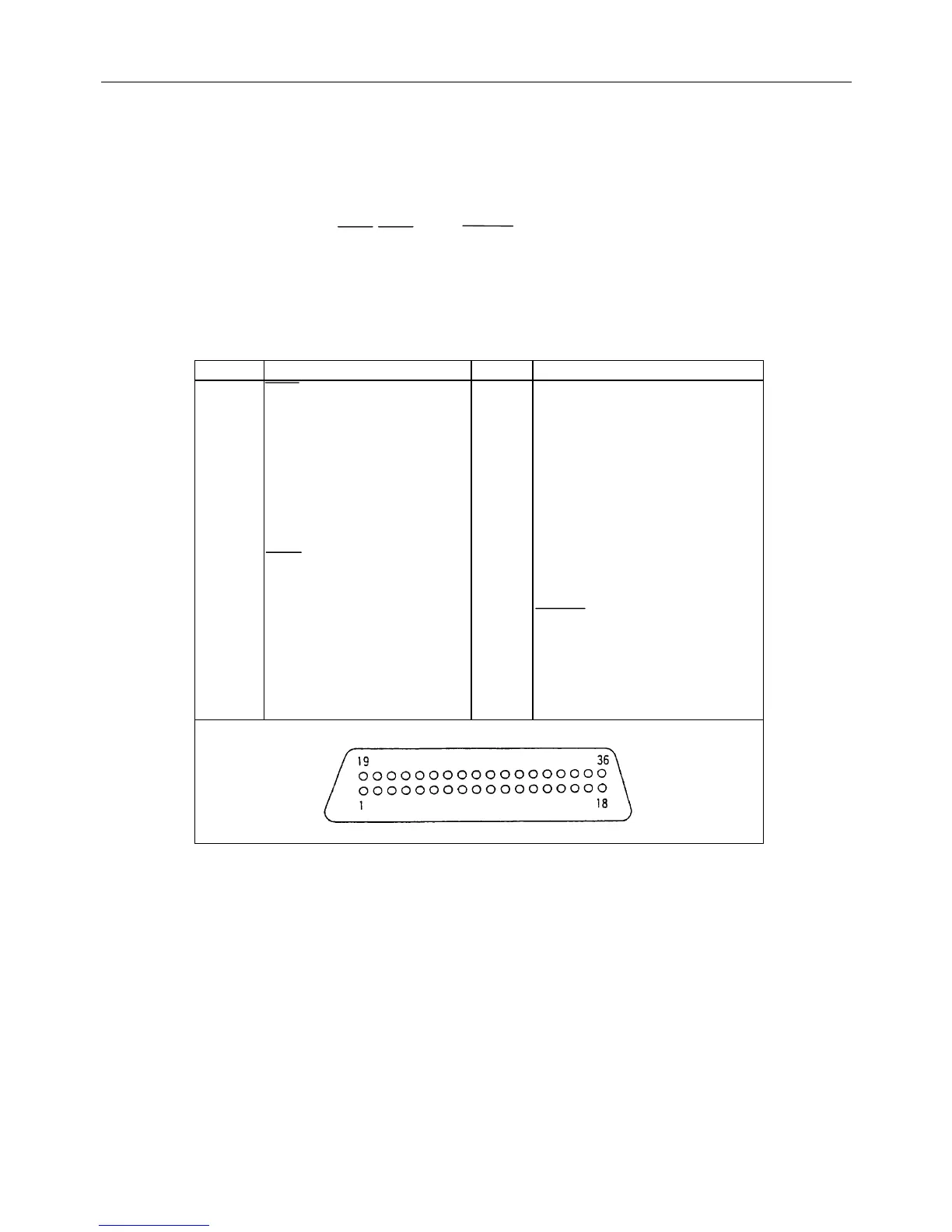

5.2 Connector Pin Assignment
PIN SIGNAL NAME PIN SIGNAL NAME
1 STB 19 TWISTED PAIR GND
2 DATA 1 20 TWISTED PAIR GND
3 DATA 2 21 TWISTED PAIR GND
4 DATA 3 22 TWISTED PAIR GND
5 DATA 4 23 TWISTED PAIR GND
6 DATA 5 24 TWISTED PAIR GND
7 DATA 6 25 TWISTED PAIR GND
8 DATA 7 26 TWISTED PAIR GND
9 DATA 8 27 TWISTED PAIR GND
10 ACK 28 TWISTED PAIR GND
11 BUSY 29 TWISTED PAIR GND
12 GND 30 TWISTED PAIR GND
13 HI-LEVEL 31 RESET
14 GND 32
15 33 GND
16 GND 34
17 FRAME GND 35
18 36
