Chapter 2 Printer Operation
Setting the Media

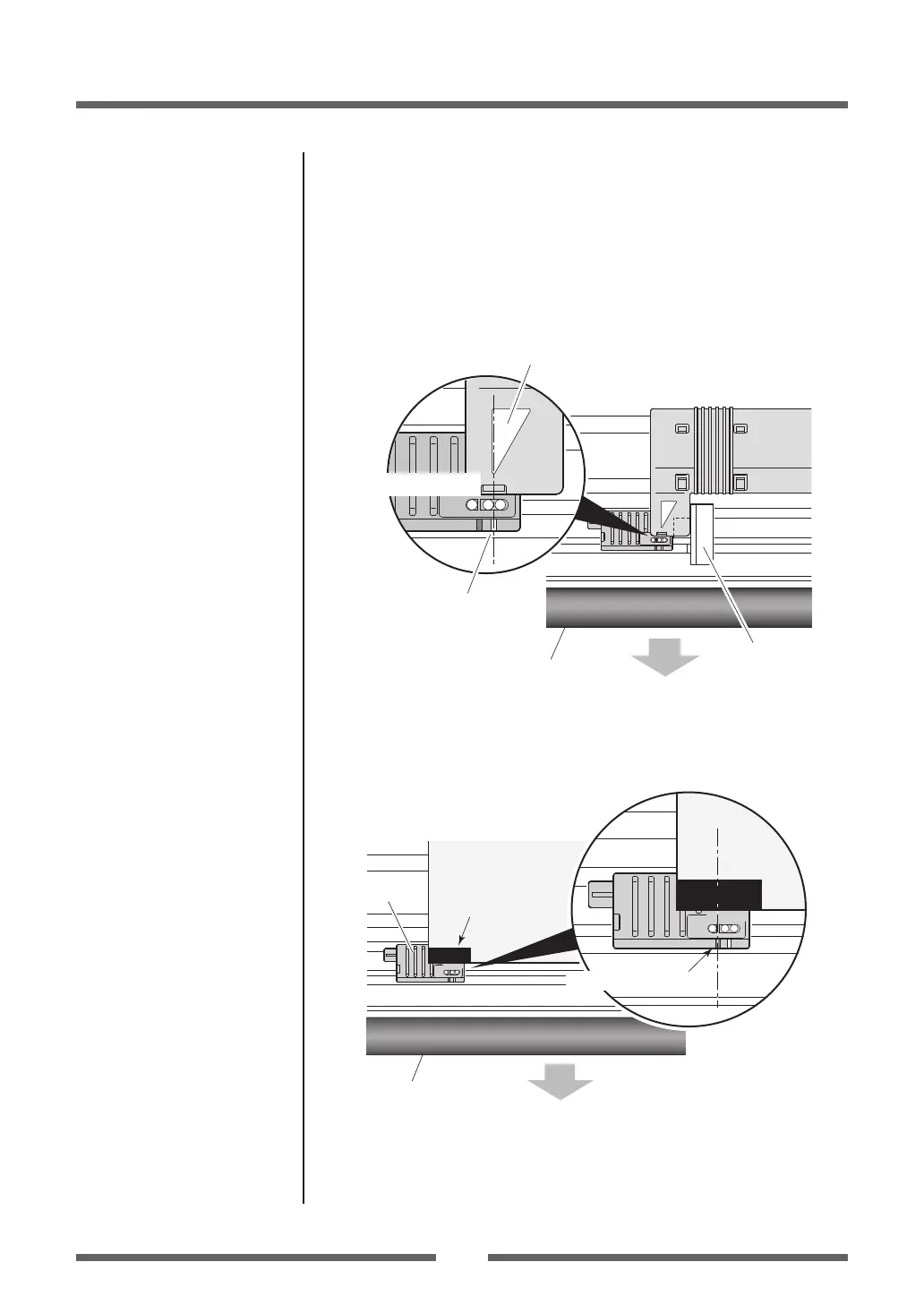

6. Setting sensor positions
When using a transparent sensor
Move the bottom sensor close to the center of the width of the media,
then align the upper sensor marker and the bottom sensor marker
(white) using the movable media guide.
When using media that is 4 inches wide, position the upper sensor
and the bottom sensor all the way to the right (large blue-head open
lever side).
Movable
media guide
Upper sensor
Bottom sensor
Transparent
sensor marker
Upper sensor marker
Front
Aligned with the marker
Platen
When using a reective sensor
Adjust the position of the sensor so that the reective sensor marker
of the bottom sensor is at the center of the black mark of the media
as shown below.
Front
Black mark
Media
Bottom sensor
Reective sensor marker
Black mark
Platen
* When using a reective sensor, install the upper sensor in such a
manner that the upper sensor marker is not in the same position
of the reective sensor marker. Paper end detection may be
impossible if installation is not done in this manner.
Adjusting the Reective sensor
(p.57)
Sensor Selection Method
(Transparent

Reflective) (p.55)
Adjusting the Transparent sensor
(p.56)

Citizen CL-E720 Specifications

General

Print Method	Direct Thermal / Thermal Transfer
Print Resolution	203 dpi
Media Thickness	0.06 mm to 0.25 mm
Media Sensors	Reflective and transmissive
Ribbon Length	360 m
Connectivity	USB
Weight	2.5 kg
Print Speed	Up to 8 ips (200 mm/s)
