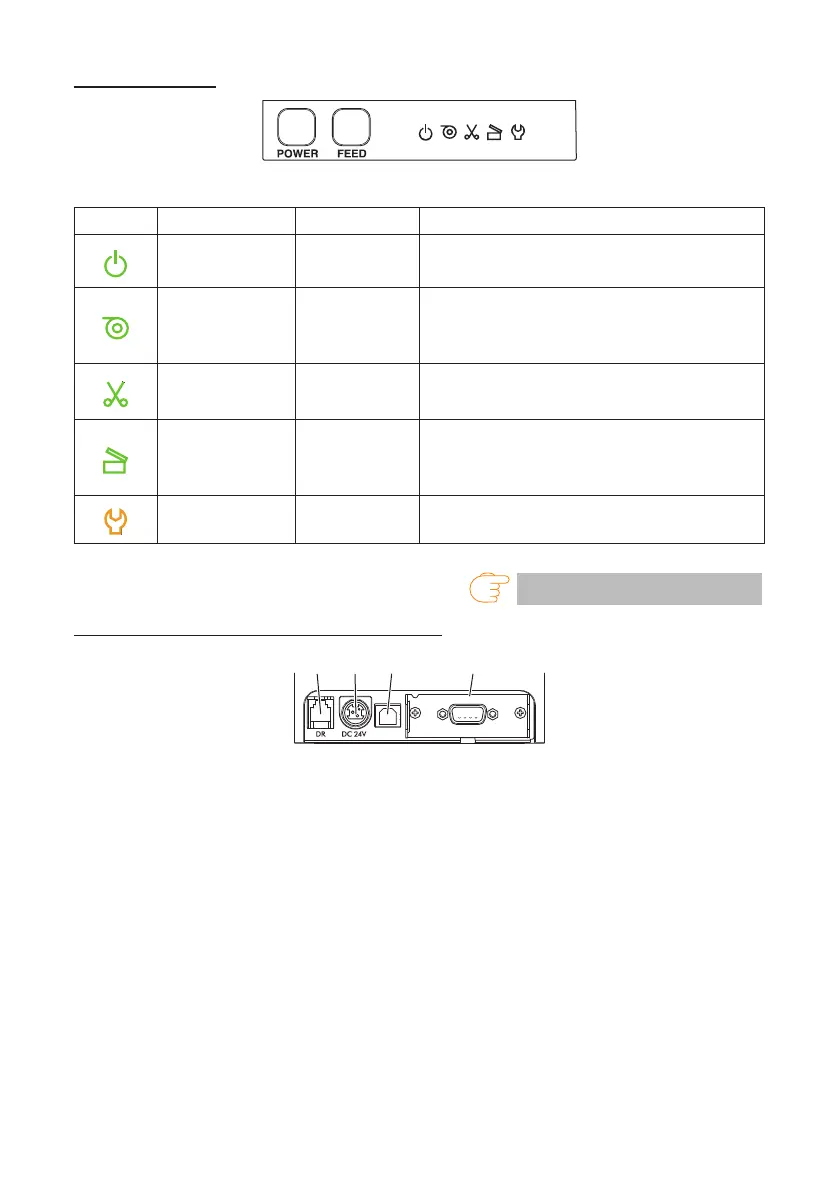

Operation panel
The operation panel has ve LEDs and two buttons.
LED name Color Description
POWER LED Green
Lights when the power is on, turns off when the power
is off.
PAPER LED Green
Lights or ashes when no paper or low paper is
detected.
May also light or ash when other abnormalities are
detected.
CUTTER LED Green
Flashes when a cutter error is detected.
May also light or ash when other abnormalities are
detected.
COVER LED Green
Lights or ashes when an open paper cover is
detected.
May also light or ash when other abnormalities are
detected.
SERVICE LED Orange
Flashes when an unrecoverable printer abnormality
is detected.
Refer to 4.5 Error Indications
Rear connectors (serial interface example)
RS: Serial RS-232C + USB
234 1
1. Interface connector (serial, USB, etc.)
Connect to the interface cable.
2. Cash drawer kick-out connector
Connect to the cable from the cash drawer.
3. Power connector
Connect to the AC adapter cable.
4. USB connector
