Black Mark (printed on the reverse)

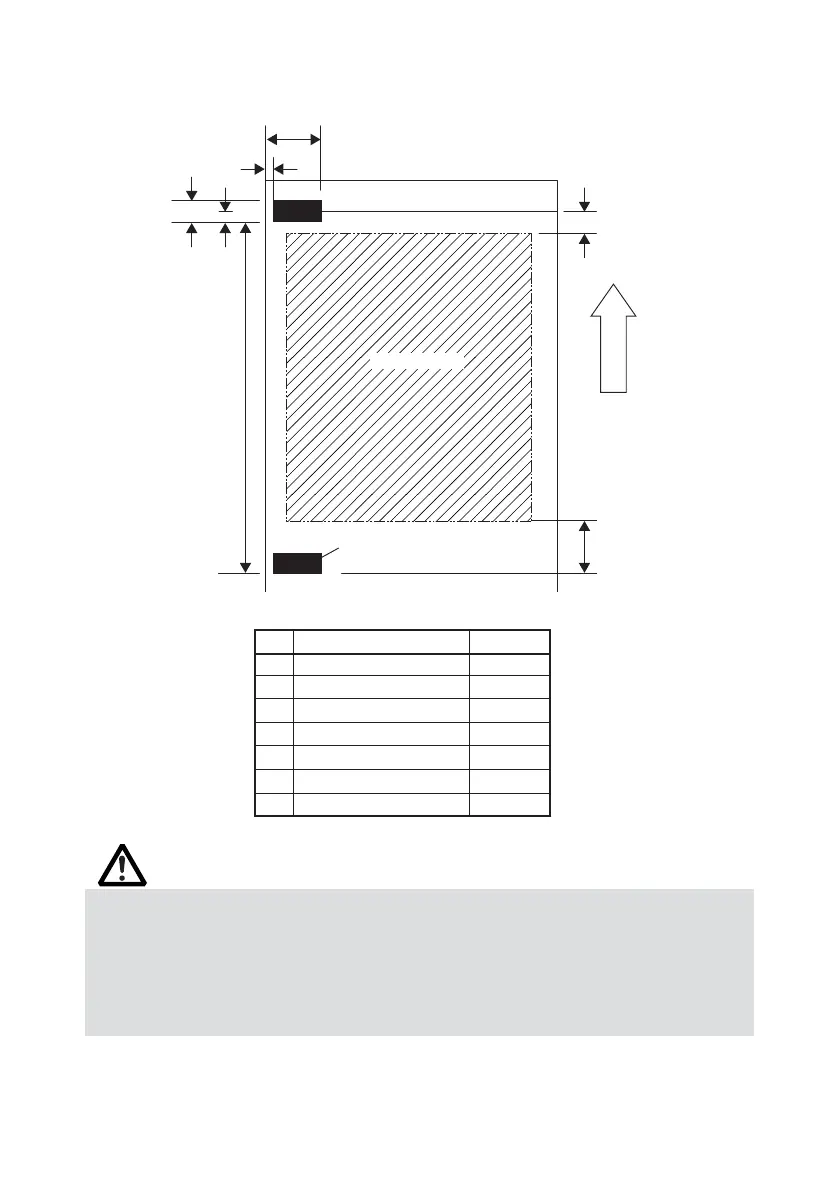

c) Black mark paper (BM paper)
D
B
C
A
E
F
G
Cut position
Paper feeding
direction
Printable area
Mark Item Dimensions
A Right edge of black mark 15 or more
B Left edge of black mark 0 to 1.5
C Black mark height 5
D Cut position in black mark 2.5
ETop margin 7 + 1
F Black mark pitch 30 to 165
GBottom margin 7 + 1
Unit: mm
CAUTION!
1) PCS value of black mark must be 0.9 or more.
2) When using the black mark paper, consider the margin of +/- 2 mm for the print position
against the standard position and +/- 5 mm for print length.
3) Refer to the above drawing for the printable area and have enough margings specified
in the marks E and G. If the print data size is out of the printable area, the printer
should skip to next page.
4) When using preprinted paper, consider the layout of the paper.
