— 22 —
5. OTHER

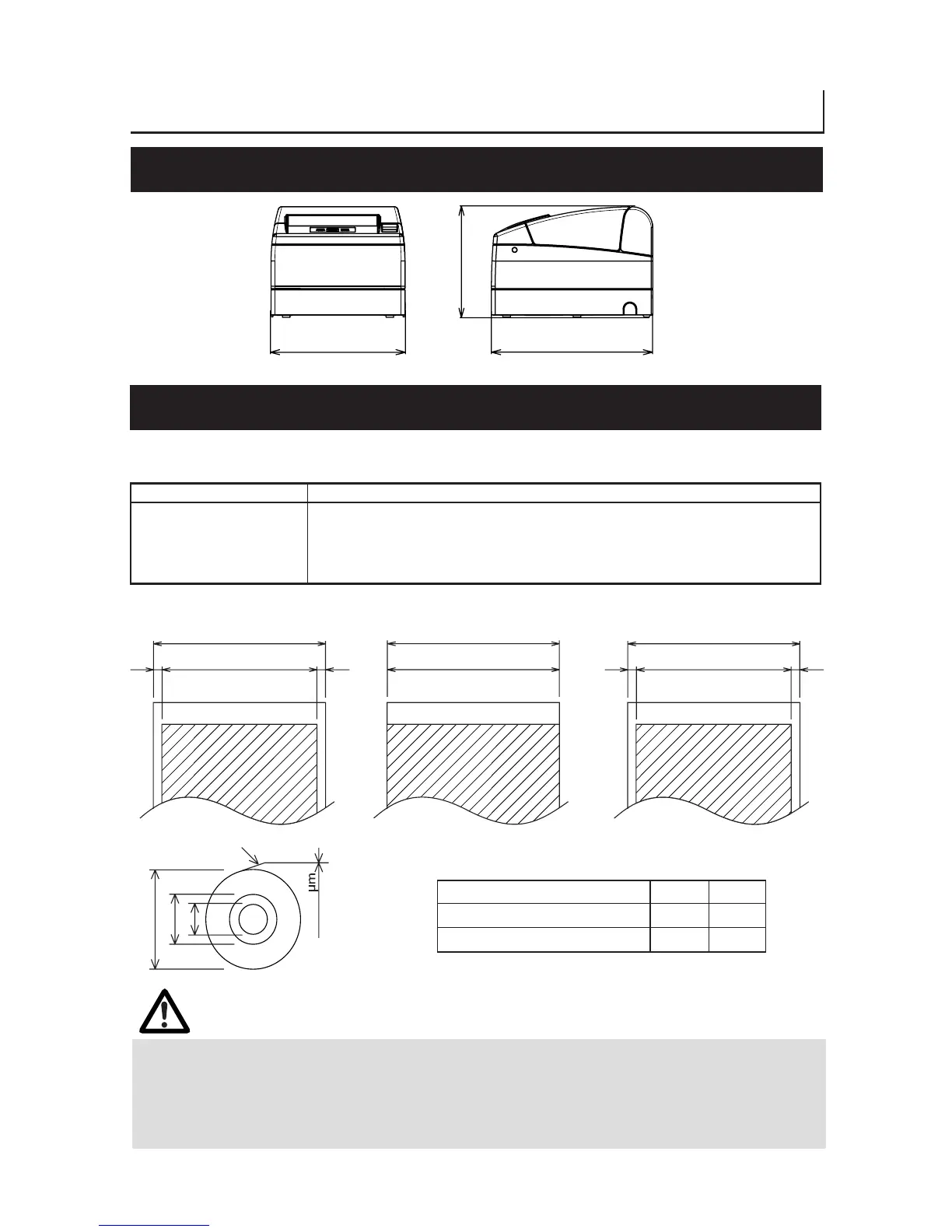

5.1 External Views and Dimensions
213
177
147
CAUTION!
DO NOT use the following type of paper roll.
■ Paper with folds.
■ Paper with bent corners.
■ Paper pasted or glued to the core.
■ In-wound paper roll (print side in).
(Unit: mm)
d
D
65~150
44
44
5.2 Printing Paper
Use the print paper shown in the following table or the paper with equivalent quality.
Paper Type Product Name
Recommended thermal F230AA, P220AG, HP220A, HP220AB-1, P220AB, P220AE-1,
paper roll PB670 (Red/Black), PB770 (Blue/Black) from Mitsubishi Paper
TF50KS-E2D from Nippon Paper
PD150R, PD160R from Ohji Paper
(Unit: mm)
Paper width 112
Maximum print area 104
Maximum print area 82.5
φ102 or less
Printing surface
Paper width 82.5
Paper width 80
Maximum print area 72
0
−1
0
−1
0
−1
Paper thickness (µm) 65-75 75-150
Core inner diameter d (mm) φ12 φ25.4
Core outer diameter D (mm) φ18 φ32
