Citrix | ADC Quick Start Guide: MPX 16000T appliance
5
Citrix ADC MPX 16000T appliance
The Citrix ADC MPX 16000T appliance is a 2U appliance. This platform has two 16-core processors
and 128 GB (8x16 GB RDIMM) of memory.
For information on the software releases supported on the ADC hardware platforms, see
https://docs.citrix.com/en-us/citrix-hardware-platforms/MPX/MPX-hardware-software-compatibility-
matrix.html.
Front panel
The following figure shows the front panel of the MPX 16000T appliance.

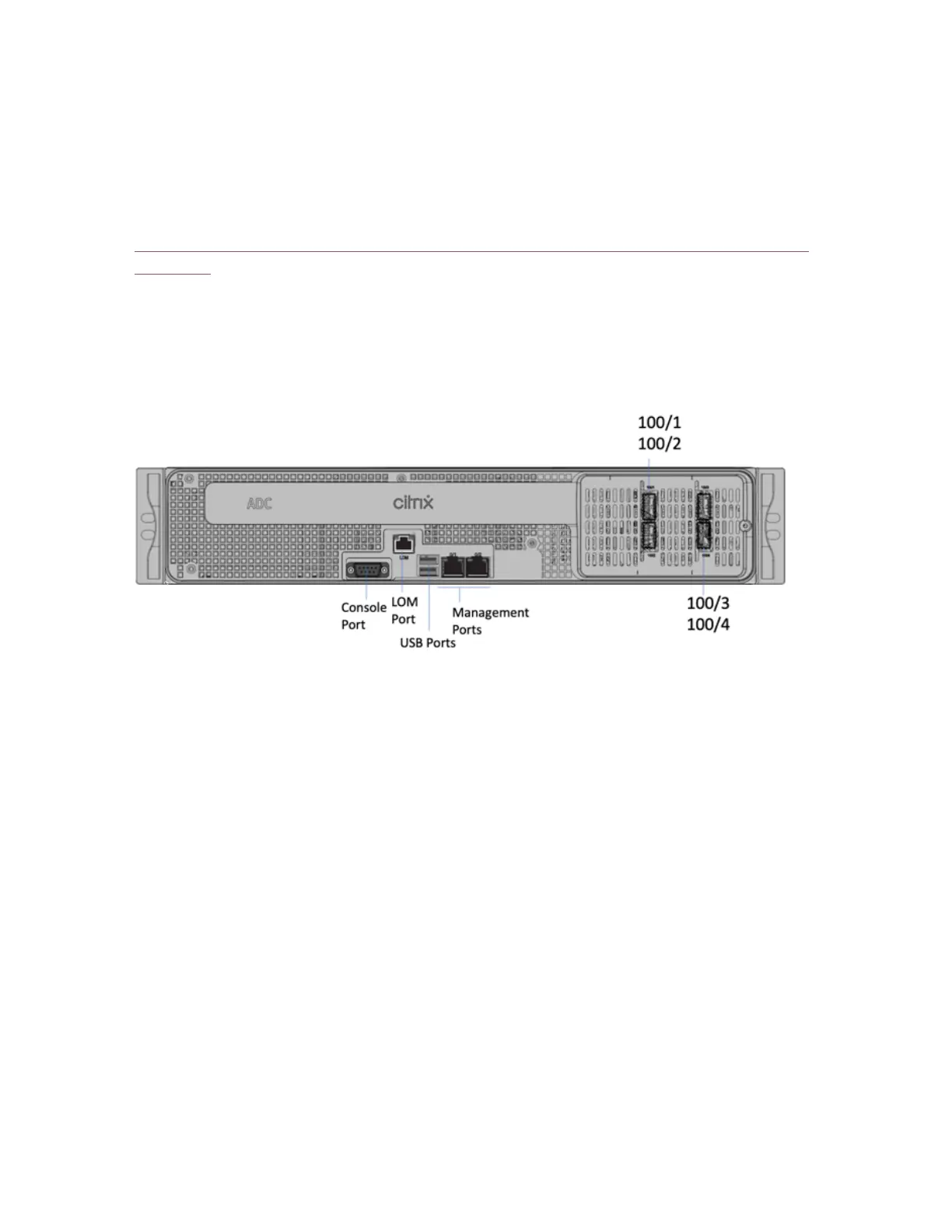

Figure 1. Citrix ADC MPX 16000T, front panel
The Citrix ADC MPX 16000T appliance has the following ports:
• RS232 serial Console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and
manage the appliance independently of the ADC software.
• Two 10/100/1000Base-T RJ45 copper Ethernet management ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for ADC administration functions.
• Two USB ports (reserved for a future release).
• Four 100G QSFP56 ports, numbered 100/1 to 100/4.

Citrix MPX 16000T Specifications

General

Brand	Citrix
Model	MPX 16000T
Category	Network Hardware
Language	English
