Citrix | ADC Quick Start Guide: MPX 16000T appliance
Back panel

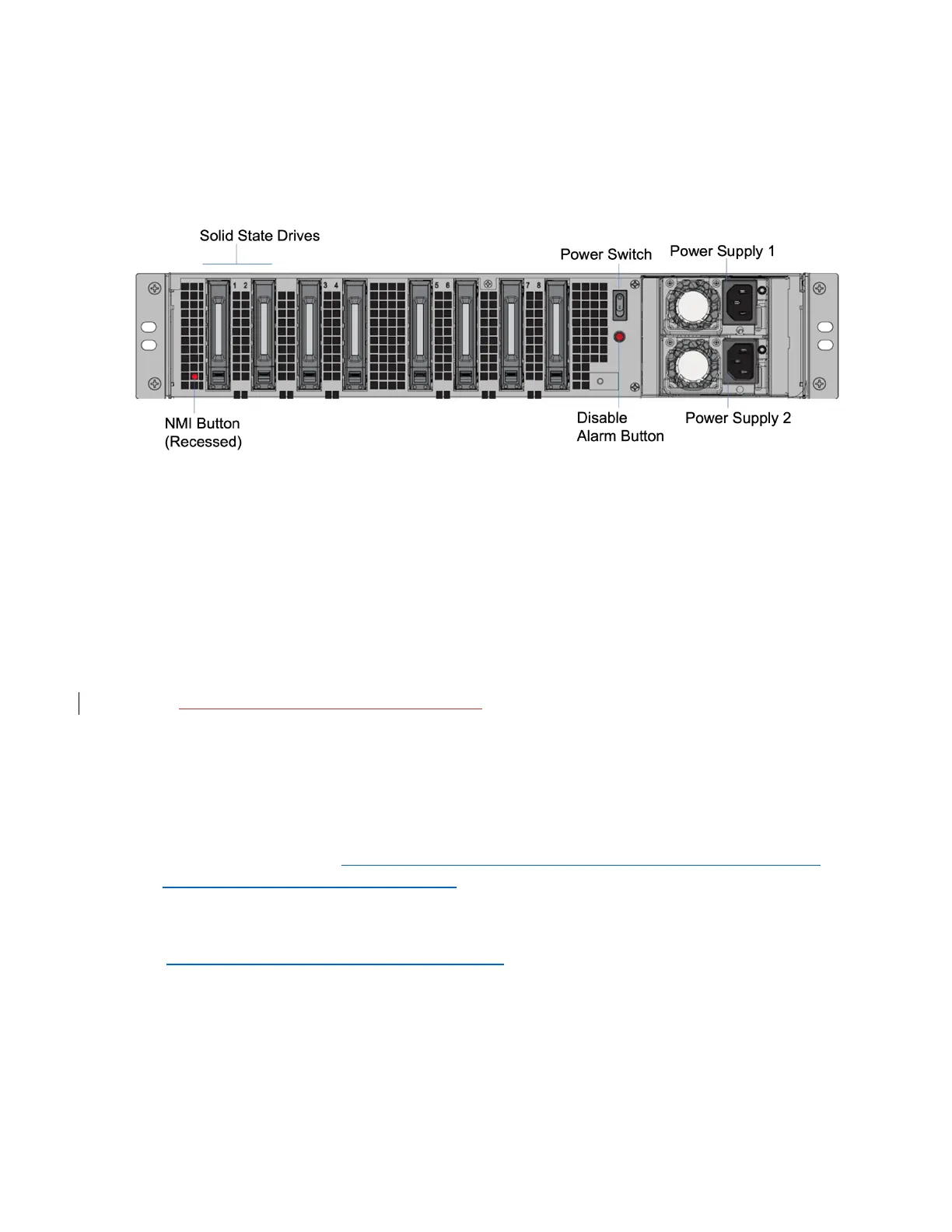

The following figure shows the back panel of the MPX 16000T appliance.
Figure 2. Citrix ADC MPX 16000T, back panel
The following components are visible on the back panel of the MPX 16000T appliance:
• One 960 GB removable solid-state drive (SSD).
• Power switch, which turns power to the appliance on or off.
o If the OS is functional, press the switch for less than two seconds to power down the
system with a graceful shutdown.
o If the OS is not responsive, press and hold the power switch for more than 4 seconds
to force the power off.
• Two power supplies, 100-240 VAC. Each power supply has an LED indicating its status, described
in Connecting the appliance to a power source.
• Disable alarm button, press this button to silence the power alarm when one of two power supplies
loses input power or when a power supply is malfunctioning.
• Non-Maskable Interrupt (NMI) Button, used at the request of Technical Support to initiate a core
dump. To press this red button, which is recessed to prevent unintentional activation, use a pen,
pencil, or other pointed object. The NMI Button is also available remotely over the network in the
LOM GUI, in the Remote Control menu. For more information about the lights out management
port of the appliance, see https://docs.citrix.com/en-us/citrix-hardware-platforms/MPX/netscaler-
MPX-lights-out-management-port-lom.html.
Appliance, rack, and electrical precautions
See Safety, cautions, warnings, and other information for the updated list of precautions.
