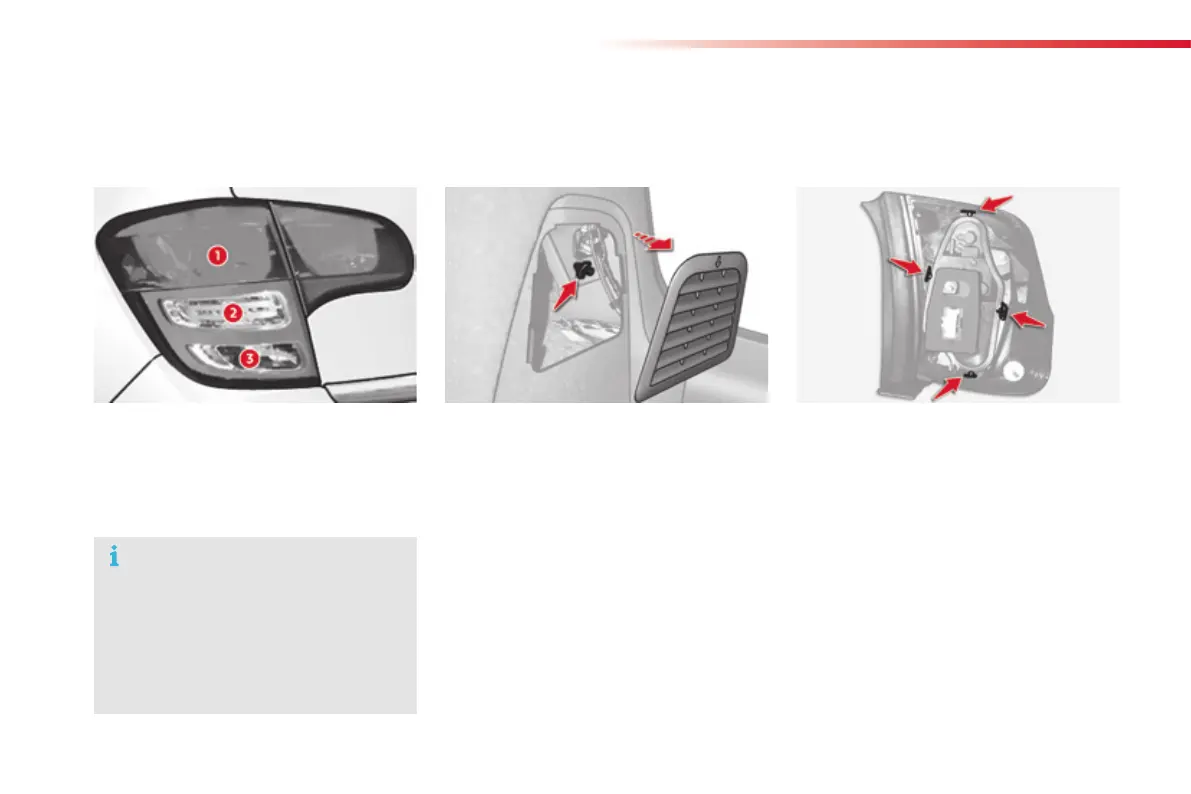

Rear lamps
1. Brake / sidelamps (P21/5W).
2. Direction indicators (PY21W amber).
3. Foglamp, right-hand side (PR21W red)
Reversing lamp, left-hand side (P21W).
Changing bulbs
These four bulbs are changed from inside the
boot:
F spread the four tabs and remove the bulb
holder,
F turn the bulb a quarter of a turn and
change it.
To refit, carry out these operations in reverse
order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
F open the boot,
F remove the access flap from the
corresponding side trim panel,
F unscrew the butterfly nut securing the lamp
unit,
F unclip the lamp unit connector,
F extract the lamp unit carefully pulling in its
middle towards the outside,
Amber or red bulbs, such as those
for the direction indicators and rear
foglamp, must be replaced by bulbs of
the same rating and colour.
The lamps on the tailgate are dummy
units. They are there for aesthetic
purposes only.
