PRACTICAL INFORMATION
210

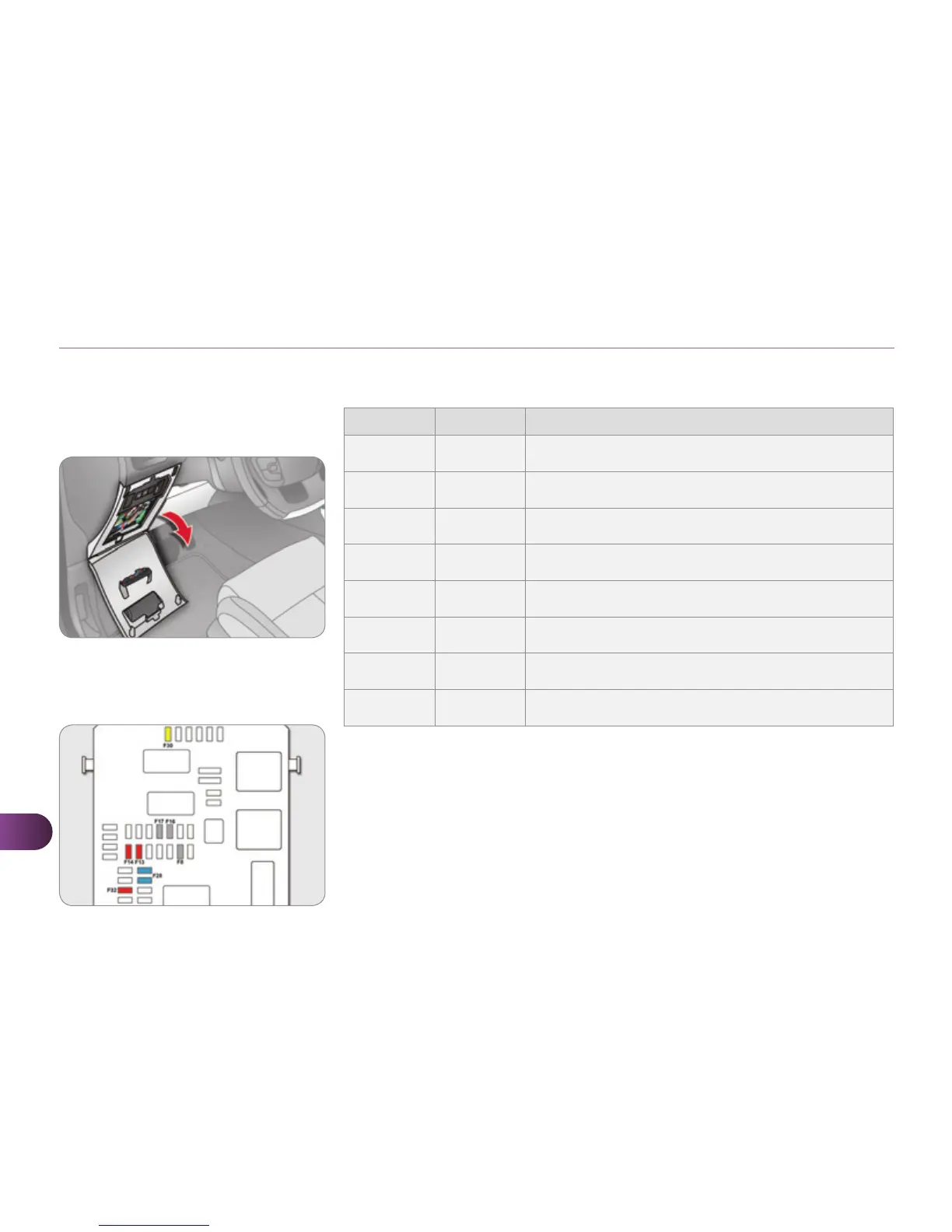

Dashboard fuses
The fuseboxes are located in the lower
dashboard (left-hand side).
Access to the fuses
Refer to the paragraph "Access to
the tools".
Fuse tables
Fusebox 1
Fuse N° Rating Functions
F8 3 A Alarm siren, alarm ECU.
F13 10 A 12 V socket.
F14 10 A 12 V socket in boot.
F16 3 A
Lighting for the large multifunctional storage unit,
rear map reading lamps, glove box illumination.
F17 3 A Sun visor illumination, front map reading lamps.
F28 15 A Audio system, radio (after-market).
F30 20 A Rear wiper.
F32 10 A Hi-Fi amplifi er.
