CITROEN C5 2008 - Front Direction Indicator

164
VI
A
H
I
Front direction indicator
1
Remove the fi xing screw of
cover
A
using a torx tool, tip the
cover over and remove.
2
Remove the fi xing screw of
lamp
B
using a torx tool and pull
the headlamp unit to remove it
from the bumper.
3
Detach the bulb
C
by pressing
on bars
1
and
2
.
4
Disconnect the connector (pull
whilst pressing on the grey
tongue using a fl at screwdriver).
5
Replace the bulb.
6
Connect the connector (push the
grey tongue in well).
7
Replace the headlamp unit in the
bumper.
8
Screw the headlamp unit in.
9
Position the cover using its
guides and screw in.
Bulbs:
HP24W
Dipped beam
1
Lift up the pegs
F
to remove the
cover on the headlamp.
2

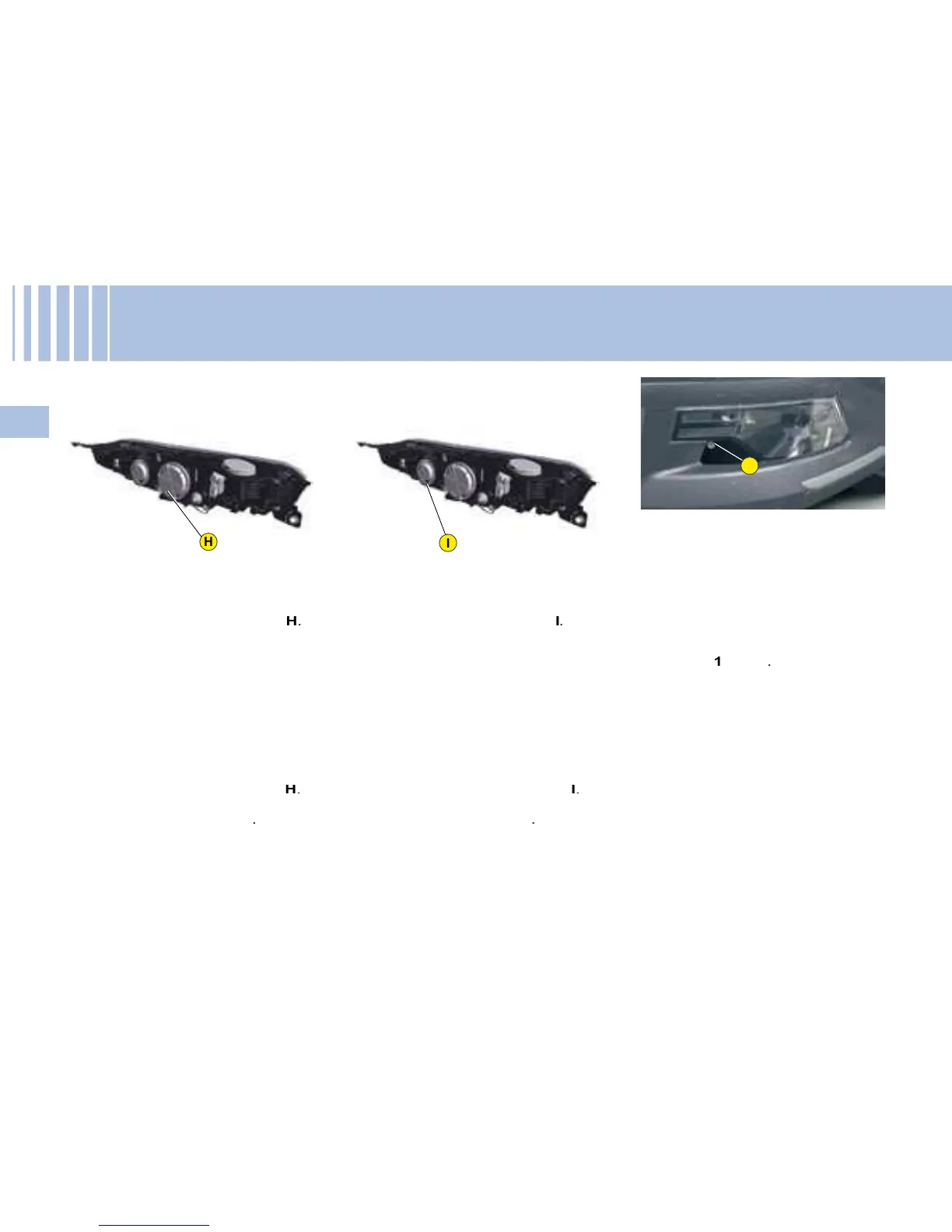

Remove the protective cap
H
.
3
Disconnect the connector by
pressing it between the thumb
and index fi nger.
4
Free the bulb from its two metal
clamps.
5
Take out the bulb.
6
Replace the bulb, exerting a
slight axial force.
7
Reconnect the connector, until
it is all the way in.
8
Replace the protective cap
H
.
9
Replace the cover and fi x it in
place using the pegs
F
.
Bend lighting
1
Lift up the pegs
F
to remove the
cover on the headlamp.
2
Remove the protective cap
I
.
3
Disconnect the connector by
pressing it between the thumb and
index fi nger.
4
Free the bulb from its two metal
clamps.
5
Take out the bulb.
6
Replace the bulb, exerting a
slight axial force.
7
Reconnect the connector, until
it is all the way in.
8
Replace the protective cap
I
.
9
Replace the cover and fi x it in
place using the pegs
F
.
C H A N G I N G B U L B S
H E A D L A M P S
