To use the transverse roof bars,
release the four locking levers located
at the base of the feet of each bar.
From the left-hand side, slide them
in their rails to the required notch,
supporting the foot of the bar with two
hands to slide it correctly.
Lock the four locking levers.
For greater ease, it is
recommended that two people carry
out these operations.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories recommended by
Automobiles CITROËN and follow
the fi tting instructions in the manual
provided by the manufacturer of the
load-carrying roof bars.

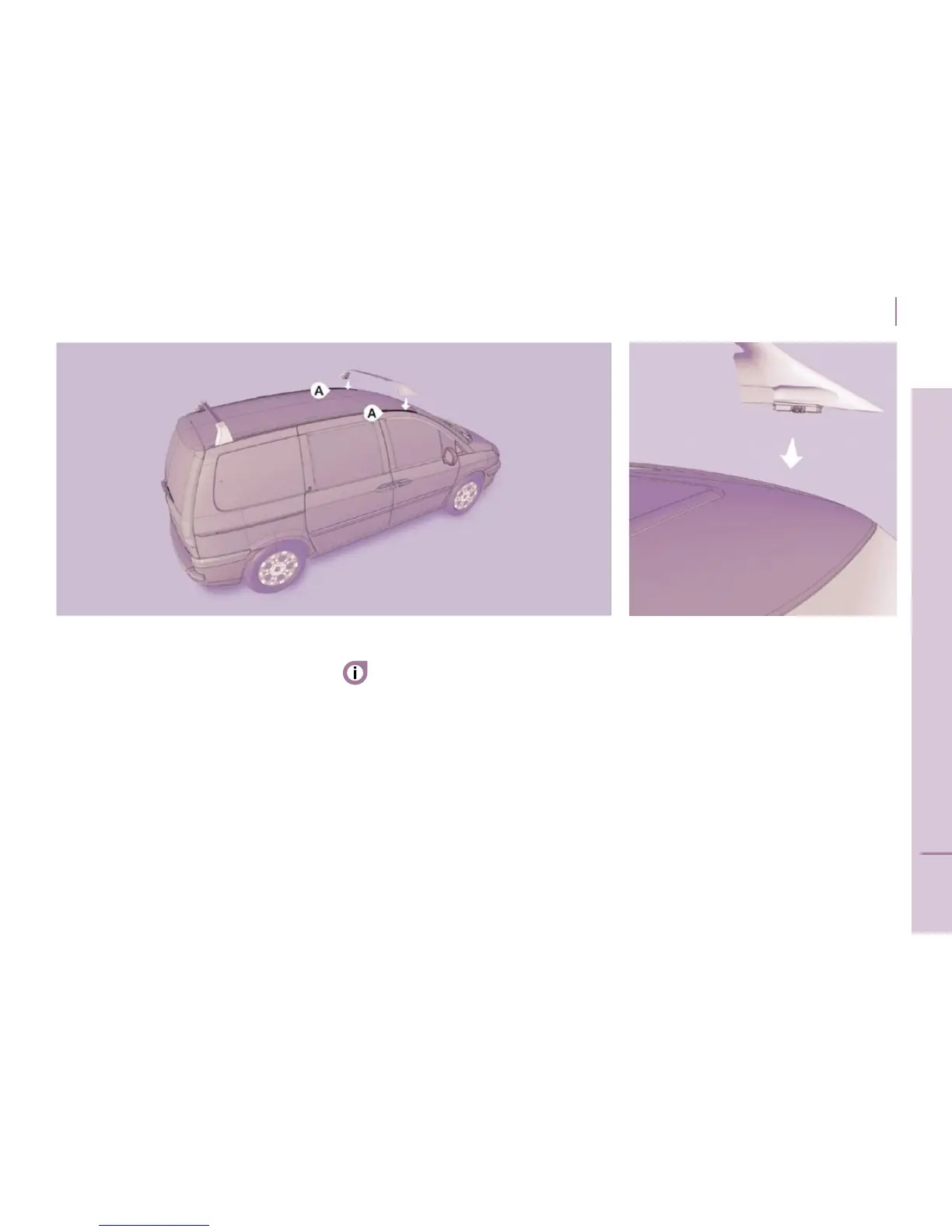

- Remove the bolt, the stop and the
two washers at each location A .
- Move the bars to the locations A .
- Lift the two bars to remove them.
- Imperative: refi t the bolt, the
stop and the two washers at each
location A .
To refi t, proceed in the reverse order.
Removal and refitting of the
roof bars
Maximum authorised weight on the
roof rack: 220 lbs. (100 kg)
