The device is supplied with 10 ft. (3.05 m) of 3/8 inch (0.95 cm) drain and water inlet hoses and connectors, and a
10 ft. (3.05 m) removable hospital grade power cord. Use of the supplied power cord is required to maintain
proper grounding and safe operation of the device. This power cord is required to be plugged directly into a GFCI
receptacle.

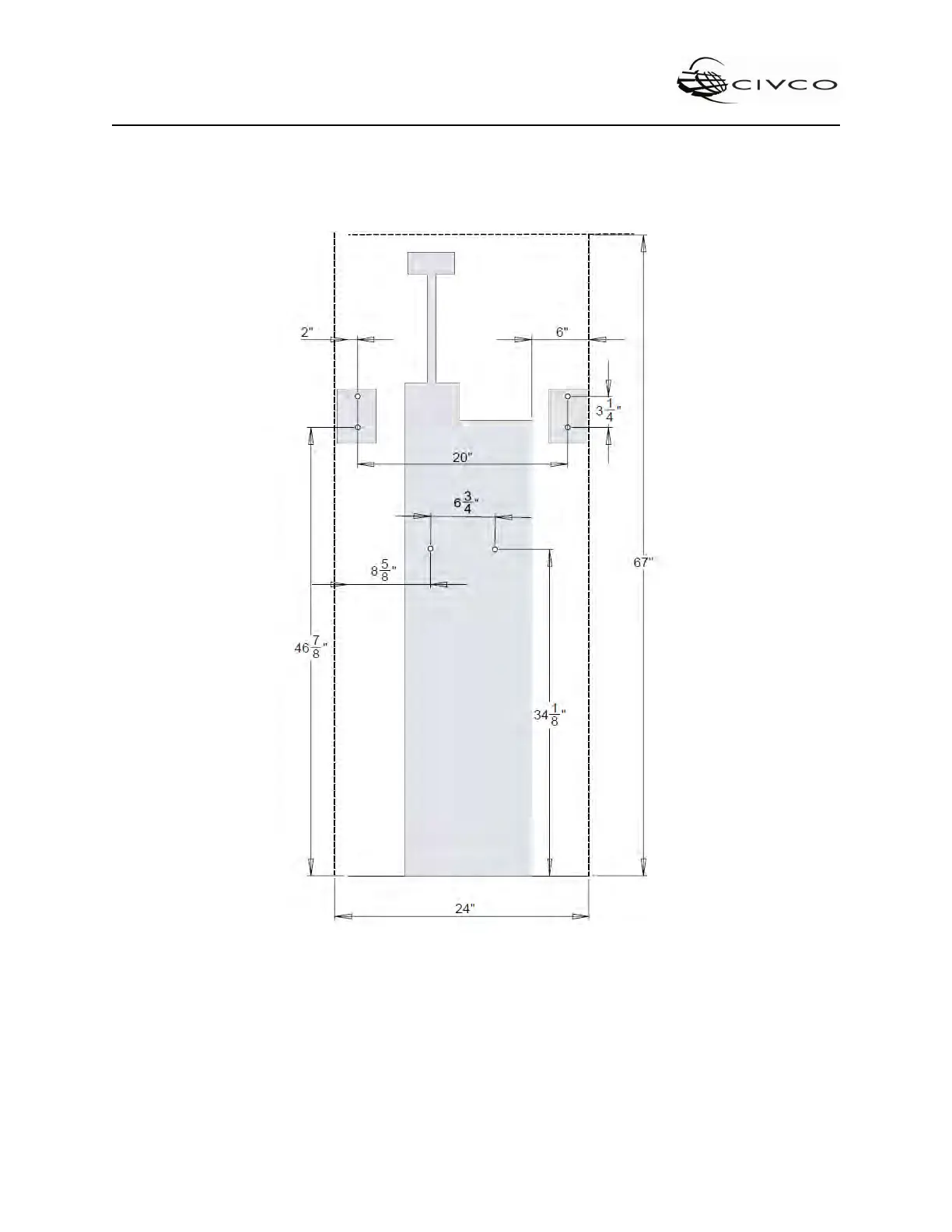

Figure 2
Mounting hole locations and overall space requirements, indicated by dotted lines.
M0067_G 6
ASTRA TEE® Installation Manual
