B. MOUNTING THE UNIT WALL BRACKET
The ASTRA TEE requires clear wall space of 24 inches (61 cm) wide and 67 inches (170.2 cm) high. A wall bracket is
shipped with the unit to hold the unit securely against the wall for added safety. Refer to Figure 2 for mounting
location of the bracket.
Mark the position of the screw holes as per Figure 2 and install the wall bracket (A1053-01) with the EZ Anchors
(A6164-01) supplied as shown below:

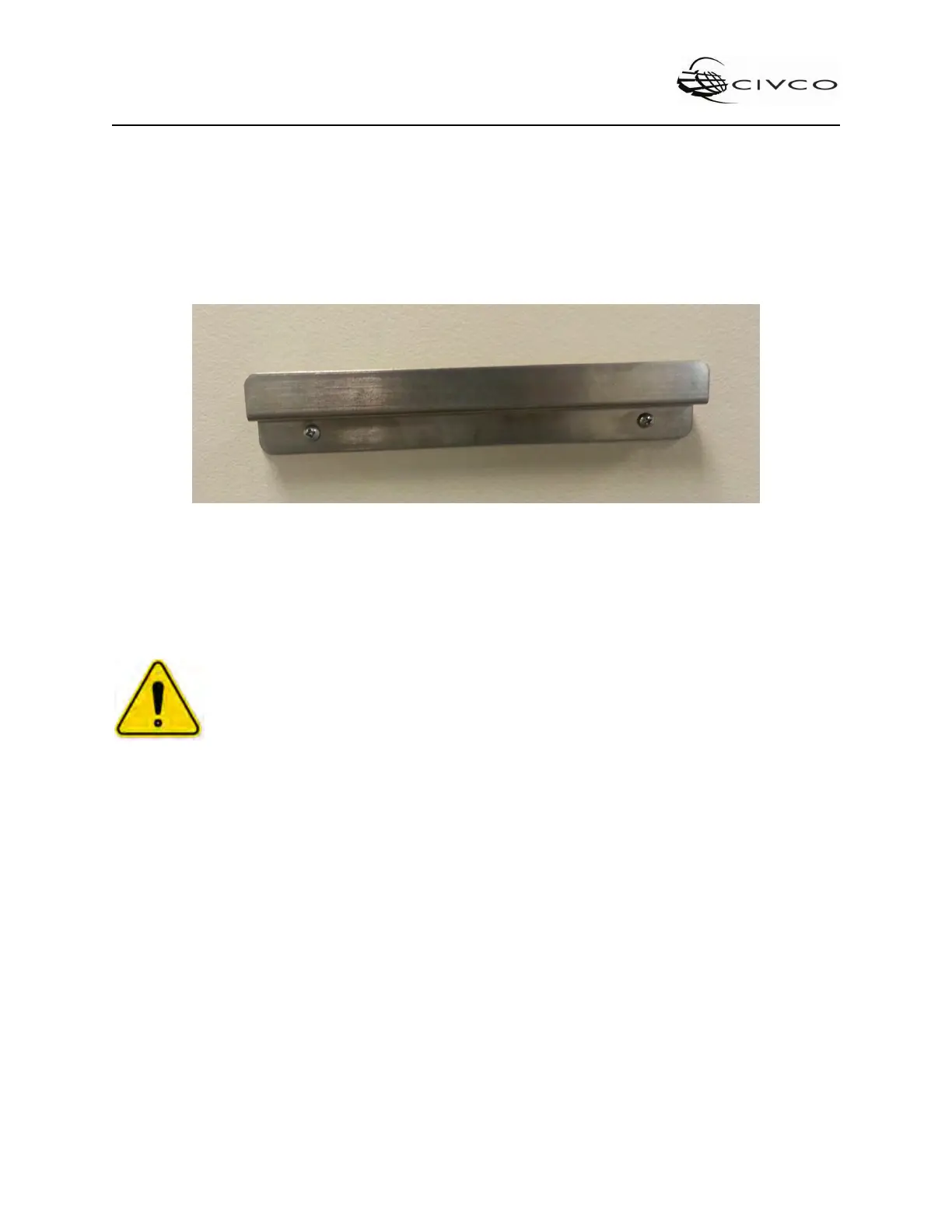

Figure 3
Wall Bracket Installation
Using two people, remove the device from the packaging. Discard packaging following healthcare facility protocols.
Using the lift handles on the sides of the unit, lift the unit slightly over the wall bracket and position into place.
Ensure weight of device is on feet and device is level using the adjustable feet.
CAUTION:
The device weight exceeds 50 lbs (22.7 kg). When lifting loads heavier than 50
lbs (22.7 kg), use two or more people to lift the load.
C. MOUNTING PROBE CONNECTOR HOLDERS
Two probe connector holders (A1064-01) are supplied with the device one placed on each side of the unit, refer
to Figure 2 for mounting locations. Install probe connector holders with the EZ Anchor kit (A6164-01) supplied.
Once mounted to the wall, attach probe connector holder pads; back (A9064-01) and base (A9065-01) in each
holder.
D. PLUMBING INSTALLATION
Ensure the device is installed in a manner which is compliant with all applicable plumbing codes and facility
requirements. Plumbing installation requires a connection to a waste drain and potable cold-water supply. Consult
your facility manager to determine the best installation method for your particular situation.
The device includes two tubing assemblies: one for each of the drain and water supply circuits, each labeled as
such. These assemblies are terminated on one end only. The terminated end is for installation to the right side of
the device. The opposite ends are not terminated. Determine the method of termination as indicated below.
M0067_G 7
ASTRA TEE® Installation Manual
