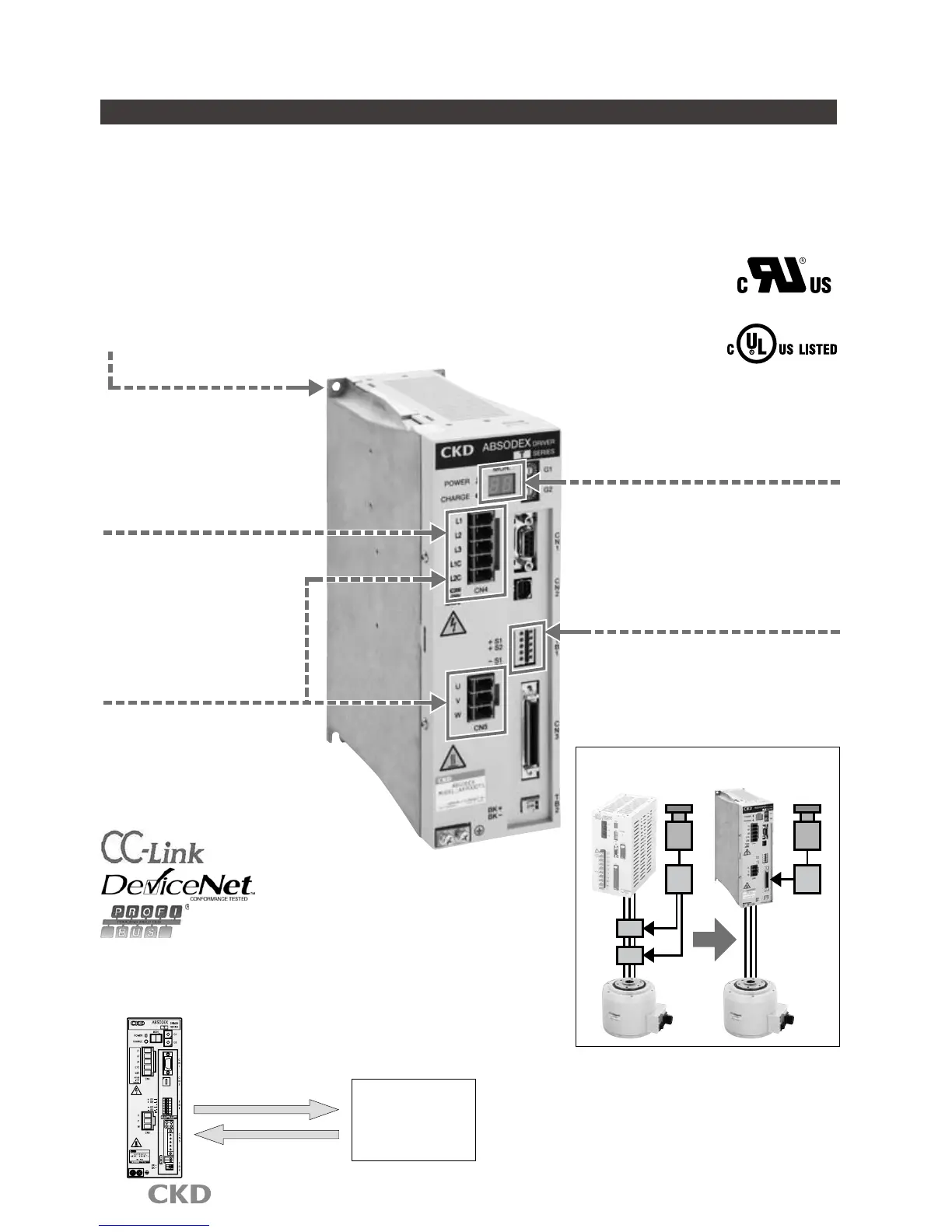

What's new in the TS/TH driver?
Quick response
Improved response and reduced stabilization time
with the faster CPU allows you to reduce tact time
even further.
Compact and light weight
Footprint of large models with max. output torque of
150N•m ore more has been reduced by 65.
(Compared to CKD's GH type driver)
Due to, light weight was made.
An encoder output is added.
By adding the A-B phase output for current position,
position cont rol using p ulse is now easier and
certain.
UL/cUL Certified
The actuator is certified by the
following standards.
・
UL1004-1
・
CSA 22.2 No.100
（
File no.
：
E328765
）
The driver is certified by the
following standards.
UL508C
CSA 22.2 No.14
（
File no.
：
E325064
）
●Mounting hole eliminates the
task of u s ing a mo u ntin g
bracket
● Separate main power
supply and control power
supply
It is now possible to cut off
only the main power supply
● 7 segment LED2-digit display
I m p r o v e d v i s i b i l i t y a n d
ind ica t ion of al a rm det ail s
makes maintenance easier.
T h e s e t v a l u e f o r g a i n
adjustment will be shown on
the LED as well.
● Terminal for safety
Create a power cut off circuit
easily with the STO function.
(safe torque off)
Installation of contactor for cutting
o f f m ot o r p o w er i s n o l o n g e r
required.
● Connector provided
Easy crimping free wiring.
Ris k s o f el ect r ic s hoc k
lowered since the terminal
is not exposed.
STO function
compatible drier
Switch Switch
Contactor
Contactor
Safety
Relay unit
Safety
Relay unit
Non-compatible
driver
Supoorted eldbus
Monitor with serial communication
Program no, position and alarm could be monitored from the
PLC.
CC-Link Ver1.10
DeviceNet
PROFIBUS DP
PLC
AX9000TS/TH-U2（ U3（U4（
Position
Program no.
Speed
Alarm, etc.
Start, stop
program selection, etc.
To Next Page
