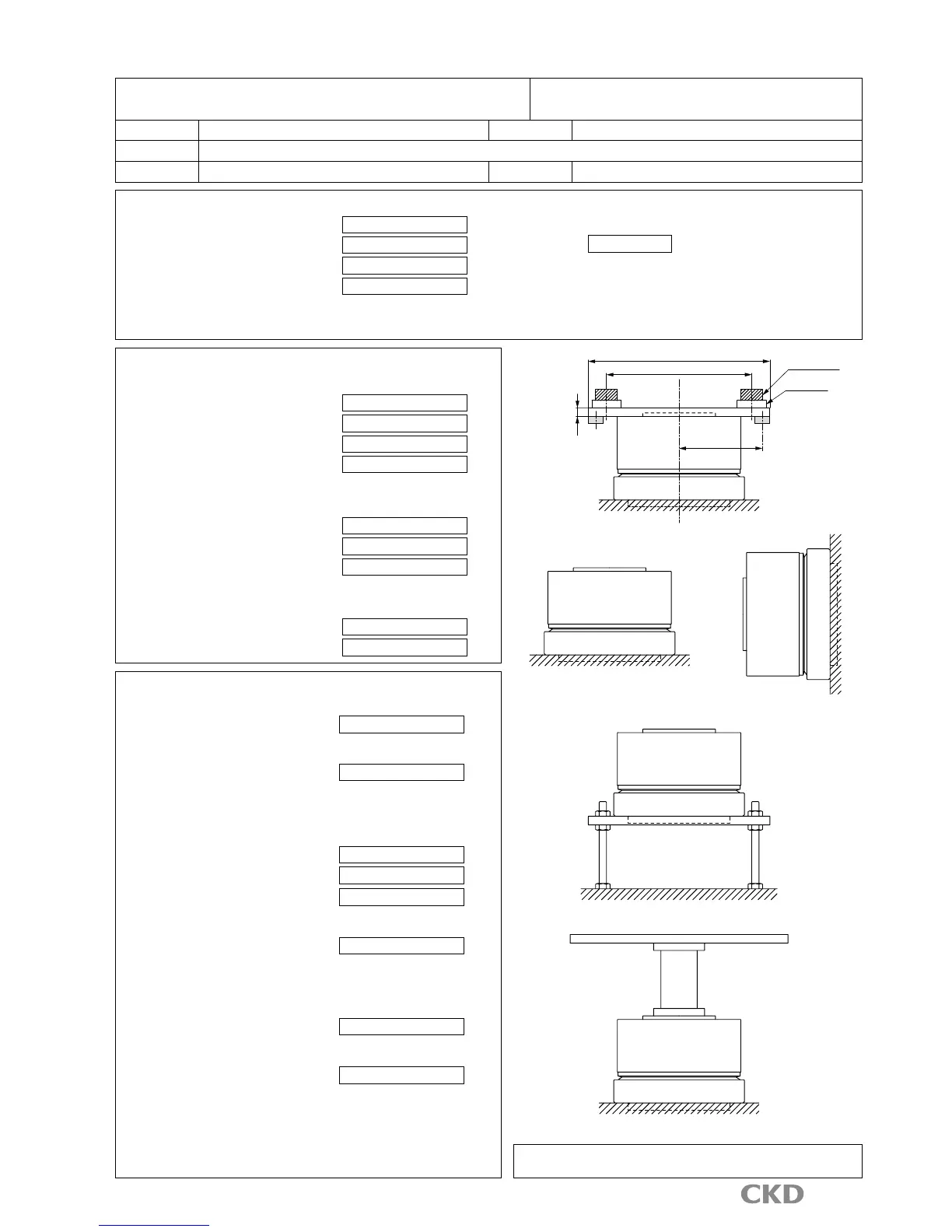

Direct drive actuator selection guide specifications check sheet
Table direct drive
(Note) Contact CKD for chain drives and gear drives.
■ Operating conditions
1. Index 2. oscillator
Movement angleޓ Ψ (°) QTPQQHKPFGZGU
Moving time t1 (sec.)
Cycle time t0 (sec.) cycle time=moving time+dwelling time
(Note) Index time is movement time + settling time.
The settling time differs according to the working condition, but generally is between 0.05 and 0.2s.
Your company name
Division
TEL
Your name
FAX
■ Load conditions
Table
Material
1. steel 2. aluminum
Appearance Dt (mm)
Plate thickness ht (mm)
Weight m1 (kg)
Workpiece
Quantity nw (pc.)
Max. weight mw (kg/pc.)
Installation center
Dp (mm)
Pallet fixture
Quantity np (pc.)
Max. weight mp (kg/pc.)
Others
Installation attitude
1. Horizontal (fig.2) 2. vertical (fig.3)
External job
1. NO / 2. YES
(note)
Dial plate support form bottom
1. NO / 2. YES
Coefficient of friction μ
Work radius Rf (mm)
Device rigidity
1. High 2. Low (note)
(note)
Extension with table shaft
1. NO / 2. YES (fig.5)
Actuator movement
1. NO / 2. YES
(note)
(note)
(Fig.4) installation rigidity: Low
(note)
(Fig.1) load conditions
(Fig.2) installation attitude: Horizontal (Fig.3) installation attitude: Vertical
Extension caused by (fig.5) shaft
Dp
Rf
μ
Dt
ht
Workpiece
Pallet jig
Eccentric load caused by gravity from vertical
installation, external load caused by caulking work.
When using a spline, when unit cannot be fixed directly onto the device
(Fig.4), when there is a mechanism such as a chuck on the table.
When actuator is mounted on X-Y table or vertical
mechanism, etc., and mounted actuator moves.
If 2 is selected for any item, contact CKD
The system overview and reference drawing should be attached for
optimal model selection.
