CKD FLUEREX PF Series User Manual

PF8000F/PF16000F Series

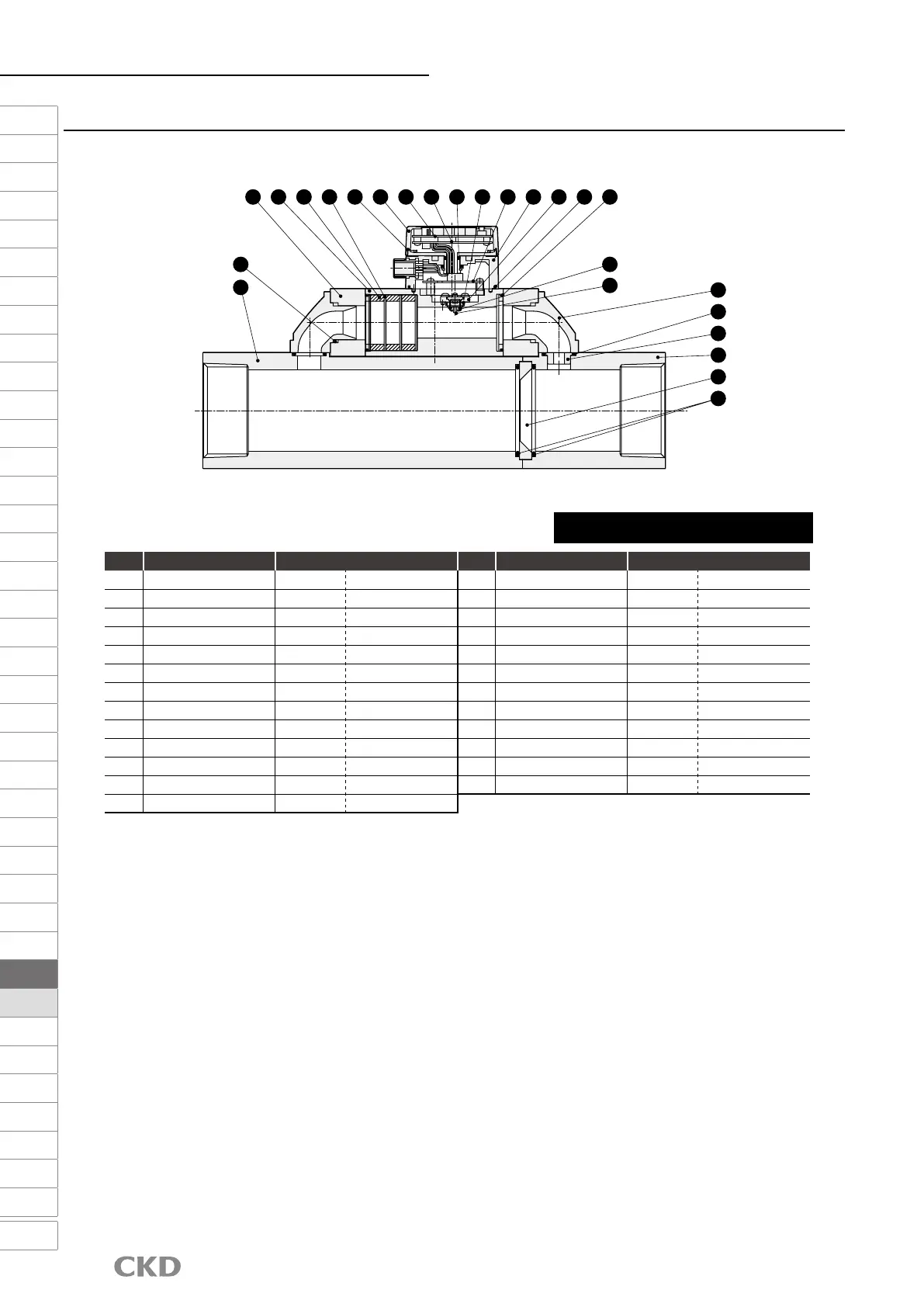

Internal structure and parts list
●
PF8000F/PF16000F
No. Part name Material No. Part name Material
1 Attachment A6063 Aluminum alloy 14 Gasket NBR Nitrile rubber
2 Body A6063 Aluminum alloy 15 O-ring NBR Nitrile rubber
3 Collar A5056 Aluminum alloy 16
Platinum thin lm thermo sensor
4 Mesh SUS304 Stainless steel 17 Platinum thin lm ow rate sensor
5 Packing NBR Nitrile rubber 18 Sub-attachment SCS13 Stainless steel
6 Case A ABS ABS resin 19 O-ring NBR Nitrile rubber
7 Display board 20 Aspirator C3604
Free cutting copper alloy
8 CPU board 21 Main body 2 A6063 Aluminum alloy
9 O-ring NBR Nitrile rubber 22 Orice C3604
Free cutting copper alloy
10 O-ring NBR Nitrile rubber 23 O-ring NBR Nitrile rubber
11 Sensor board 24 Main body 1 A6063 Aluminum alloy
12 Connector case 2 ABS ABS resin
25 O-ring NBR Nitrile rubber
13 Sensor assembly PPS Polyphenylene sulde
Cannot be disassembled
23
22
21
20
19
18
17
24
25 16
151413121110987654321
