CKD FLUEREX PF Series User Manual

PF500F to PF16000F Series
Wiring method
Electric wiring
·Middle ow rate PF500F/PF1000F/PF2000F/PF4000F
·Large ow rate PF8000F/PF16000F
●
Standard/option A2 A3 A6

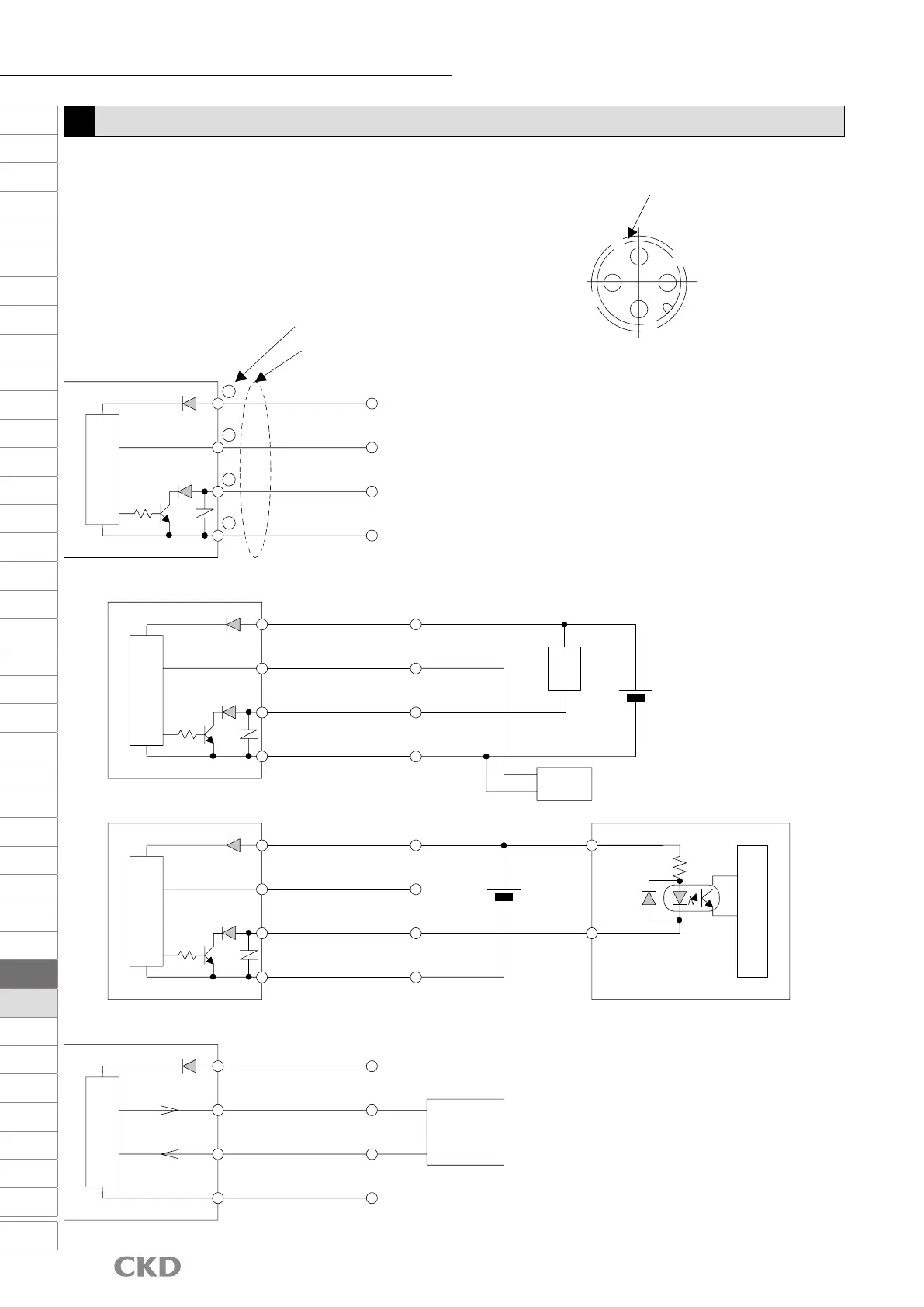

1) Example of connection with relay/resistance load/recorder
2) Example of connection with programmable controller
●
Option A1 4 to 20 mA output
4
3
2
1
Plug (male)
Connector pin No.
Connector No.
Accessory cable (3 m)
--- Connect to (-) of DC power supply: 0 VDC
Pulse for A6 : MAX 30 VDC/50 mA
--- Switch output
--- Analog output: Voltage in proportion to ow rate is output.
GND (blue)
ALARM (black)
ANO (white)
+V (brown)
Main circuit
--- Connect to (+) of DC power supply: 24 VDC ± 10%
+
Recorder
DC power supply
+
+
Load
GND (blue)
ALARM (black)
ANO (white)
+V (brown)
Main circuit
Internal circuit
PC
24+
Input
DC power supply
+
GND (blue)
ALARM (black)
ANO (white)
+V (brown)
Main circuit
· Switch output is not available if 4 to 20 mA output is selected.
+
Receiver
--- Connect to (-) of DC power supply: 0 VDC
--- Connect to 4 to 20 mA input unit
GND (blue)
ANO - (black)
ANO + (white)
+V (brown)
Main circuit
--- Connect to (+) of DC power supply: 24 VDC ± 10%
