CKD FLUEREX PF Series User Manual

PF500F to PF4000F Series

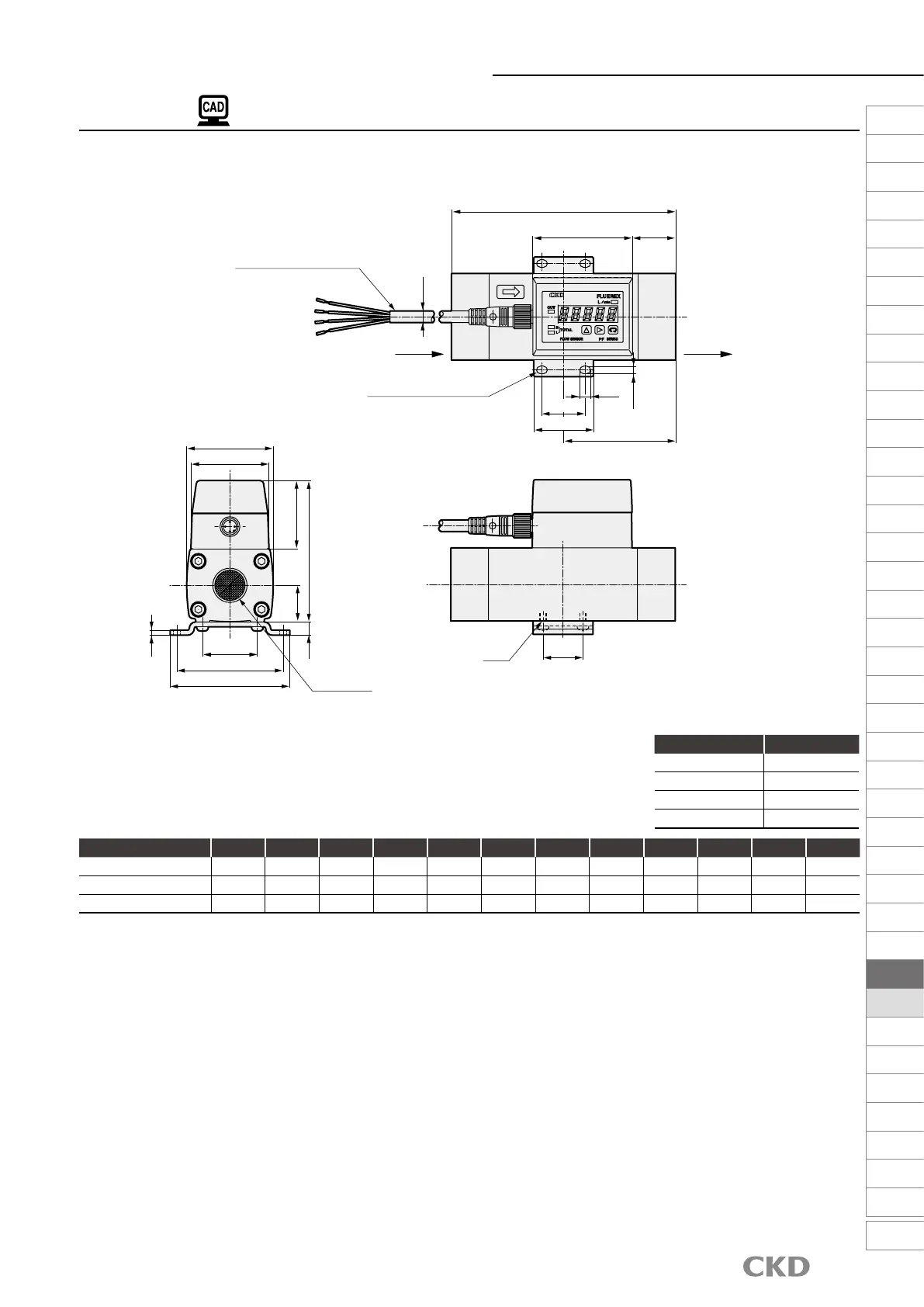

Dimensions
Dimensions
●
PF500F to PF4000F
Model No. Port size
PF*00F-10 Rc3/8
PF*00F-15 Rc1/2
PF*00F-20 Rc3/4
PF*00F-25 Rc1
Model No. A B C D E F G H I J K L
PF500F/PF1000F 135 52 85 22 67.5 26 26 36 33 64 72 M4 depth 4.5
PF2000F 135 55 96 27.5 67.5 26 26 36 33 64 72 M4 depth 4.5
PF4000F 176 65 109 34 88 46.5 28 40 42 74 84 M5 depth 5.5
H
G
Outlet
Cable 3 m (attached part)
Bracket (option)
Inlet
φ6
F
6.5
4.5
E
A
60
8
2-Port size
I
J
K
3
C
41
47
D
B
4-L
24
F.R.L
F (Filtr)
R (Reg)
L (Lub)
PresSW
Shutoff
SlowStart
FlmResistFR
Oil-ProhR
MedPresFR
No Cu/
PTFE FRL
Outdrs FR
F.R.L
(Related)
CompFRL
LgFRL
PrecsR
VacF/R
Clean FR
ElecPneuR
AirBoost
SpdContr
Silncr
CheckV/
other
Jnt/tube
AirUnt
PrecsCompn
Mech/
ElecPresSw
ContactSW
AirSens
PresSW
Cool
AirFloSens/
Contr
WaterRtSens
TotAirSys
(Total Air)
TotAirSys
(Gamma)
RefrDry
DesicDry
HiPolymDry
MainFiltr
Dischrg
etc
Ending
1375
Discontinue
