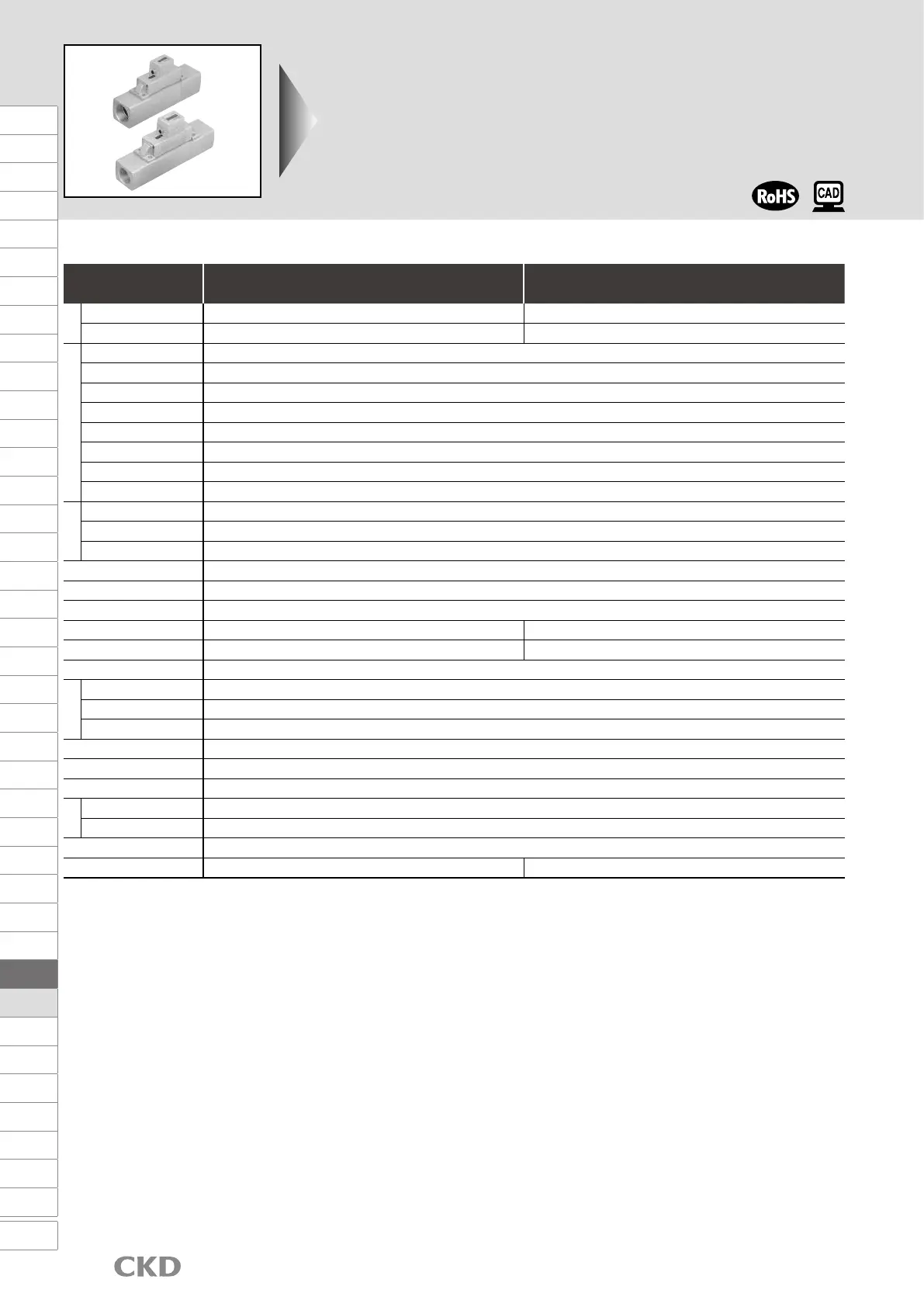

CKD FLUEREX PF Series User Manual

Flow sensor for compressed air (FLUEREX)
Large ow rate
PF8000F/PF16000F
Series
●
Flow rate range: 0.40 to 8.00, 0.80 to 16.00 m³/min (normal)
*1 : If the compressed air contains foreign substances, water or oil, the ow rate cannot be detected and this causes "sensor error".
Install a lter, refrigeration air dryer, and oil mist lter on the upstream side of the ow rate sensor.
*2 :
When the ow rate is below the min. ow rate range, the display becomes 0. The display value out of the ow rate range is outside the guaranteed precision.
*3 : Note that the switch output is not available if option "A1" (4 to 20 mADC) or "A6" (integrated pulse) is selected.
*4 : Refer to descriptions of integrated pulse output on page 1383 for details of pulse output.
*5 : Note that the integrating ow value is reset when the power supply is turned OFF.
Specications
Descriptions PF8000F-40 PF16000F-50
Specs
Flow rate range m³/min (normal) 0.40 to 8.00 0.80 to 16.00
Port size Rc1 1/2 Rc2
Working conditions
Applicable uid Compressed air, nitrogen
Air quality JIS B8392-1: 2012 (ISO 8573-1: 2010) [1:1:1 - 1:6:1] (*1)
Max. working pressure MPa 1.0 (≈150 psi, 10 bar)
Min. working pressure MPa 0.1 (≈15 psi, 1 bar)
Proof pressure MPa 1.5 (≈220 psi, 15 bar)
Ambient temperature °C 0 (32°F) to 50 (122°F)
Ambient humidity 85% RH or less
Fluid temperature °C 0 (32°F) to 40 (104°F)
Accuracy
Linearity ±2.5% FS (0.7 MPa (≈100 psi, 7 bar), 20 °C (68°F))
Pressure characteristics ±1.5% F.S. (0.1 (≈15 psi, 1 bar) to 1.0 MPa (≈150 psi, 10 bar), 0.7 MPa (≈100 psi, 7 bar) reference)
Temperature characteristics ±2.0% F.S. (0 (32°F) to 40°C (104°F), 20°C (68°F) reference)
Pressure loss MPa 0.005 (≈0.73 psi, 0.05 bar) or less (max. ow rate, 0.7 MPa (≈100 psi, 7 bar))
Response time sec 2.5
Display 5-digit LED display Display unit: m
3
/min (normal)
Min. displayed ow (*2) m
3
/min (normal) 0.1 0.2
Display resolution 0.01 0.10
Integrating ow Max. 9 digits (however, H and L are split displayed).
Output
Analog output Standard: 0 to 5 VDC Option: 4 to 20 mADC, 1 to 5 V, 0 to 10 V
Switch output (*3) 1 piece (transistor open collector) Green LED turns ON when switch is ON
Pulse output (option) (*4) 0.10 m³ (normal)/pulse
Power supply voltage V 24 DC (8 W or less)
Cable Included (with 3 m connector/0.5 mm
2
conductor)
Set value hold function (*5) Semi-permanent due to EEPROM
Mounting
Mounting orientation Unrestricted in vertical/horizontal direction
Straight piping section Upstream side 10D/downstream side 5D
Degree of protection IP64 or equivalent
Weight kg 3.8 4.0
F.R.L
F (Filtr)
R (Reg)
L (Lub)
PresSW
Shutoff
SlowStart
FlmResistFR
Oil-ProhR
MedPresFR
No Cu/
PTFE FRL
Outdrs FR
F.R.L
(Related)
CompFRL
LgFRL
PrecsR
VacF/R
Clean FR
ElecPneuR
AirBoost
SpdContr
Silncr
CheckV/
other
Jnt/tube
AirUnt
PrecsCompn
Mech/
ElecPresSw
ContactSW
AirSens
PresSW
Cool
AirFloSens/
Contr
WaterRtSens
TotAirSys
(Total Air)
TotAirSys
(Gamma)
RefrDry
DesicDry
HiPolymDry
MainFiltr
Dischrg
etc
Ending
1376
