CKD FLUEREX PF Series User Manual

PF8000F/PF16000F Series

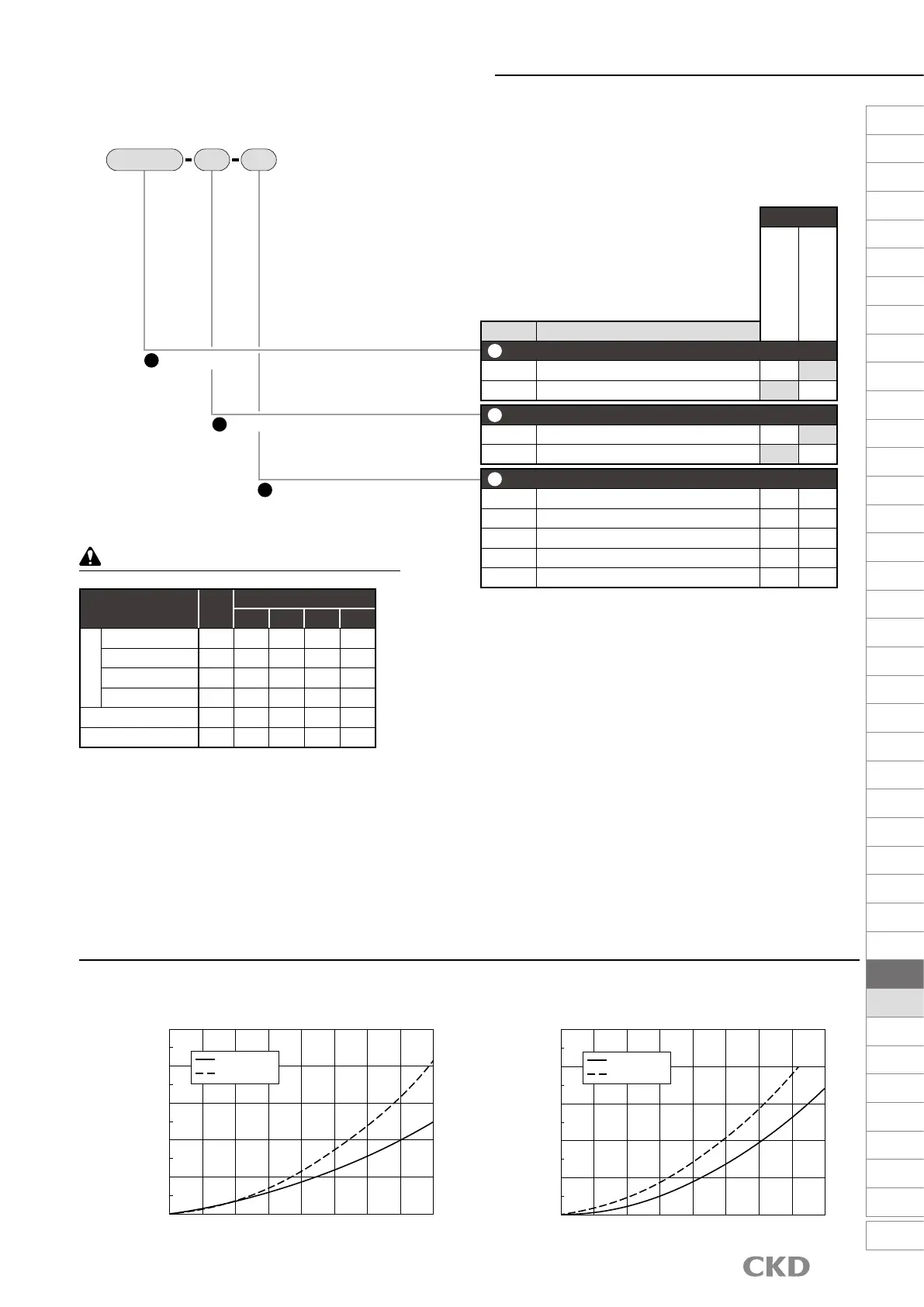

How to order
A140
8000F
PF
Output
*1
Port size
Flow rate range
How to order
Model No.
PF8000F PF16000F
Code Content
A
Flow rate range
8000F 0.40 to 8.00 m³/min (normal)
●
16000F 0.80 to 16.00 m³/min (normal)
●
B
Port size
40 Rc1 1/2
●
50 Rc2
●
C
Output
Blank Analog output 0 to 5 VDC (standard)
● ●
A1 Analog output 4 to 20 mADC
● ●
A2 Analog output 1 to 5 VDC
● ●
A3 Analog output 0 to 10 VDC
● ●
A6 Integrated pulse output
● ●
* For combinations not listed in the table, contact your CKD branch or dealer.
●
PF16000F-50
●
PF8000F-40
Pressure loss
A
B
C
*1
[Example of model No.]
PF8000F-40-A1
Model : PF8000F
●
A
Flow rate range : 0.40 to 8.00 m³/min (normal)
●
B
Port size : Rc1 1/2
●
C
Output : Analog output 4 to 20 mADC
Code Std.
(Option)
A1 A2 A3 A6
Analog output
Blank (0 to 5V)
● ●
A1 (4 to 20 mA)
●
A2 (1 to 5 V)
●
A3 (0 to 10 V)
●
A6 (Pulse output)
●
Switch output
● ● ●
Precautions for model No. selection
0.00 16.0012.008.00 14.0010.006.002.00 4.00
Flow rate [m³/min (normal)]
(0.7 MPa)
(0.4 MPa)
Pressure loss [MPa]
0.000
0.001
0.004
0.003
0.002
0.005
0.00 8.006.004.00 7.005.003.001.00 2.00
(0.7 MPa)
(0.4 MPa)
Flow rate [m³/min (normal)]
Pressure loss [MPa]
0.000
0.008
0.006
0.004
0.002
0.010
F.R.L
F (Filtr)
R (Reg)
L (Lub)
PresSW
Shutoff
SlowStart
FlmResistFR
Oil-ProhR
MedPresFR
No Cu/
PTFE FRL
Outdrs FR
F.R.L
(Related)
CompFRL
LgFRL
PrecsR
VacF/R
Clean FR
ElecPneuR
AirBoost
SpdContr
Silncr
CheckV/
other
Jnt/tube
AirUnt
PrecsCompn
Mech/
ElecPresSw
ContactSW
AirSens
PresSW
Cool
AirFloSens/
Contr
WaterRtSens
TotAirSys
(Total Air)
TotAirSys
(Gamma)
RefrDry
DesicDry
HiPolymDry
MainFiltr
Dischrg
etc
Ending
1377
Discontinue
