CKD PPX Series User Manual

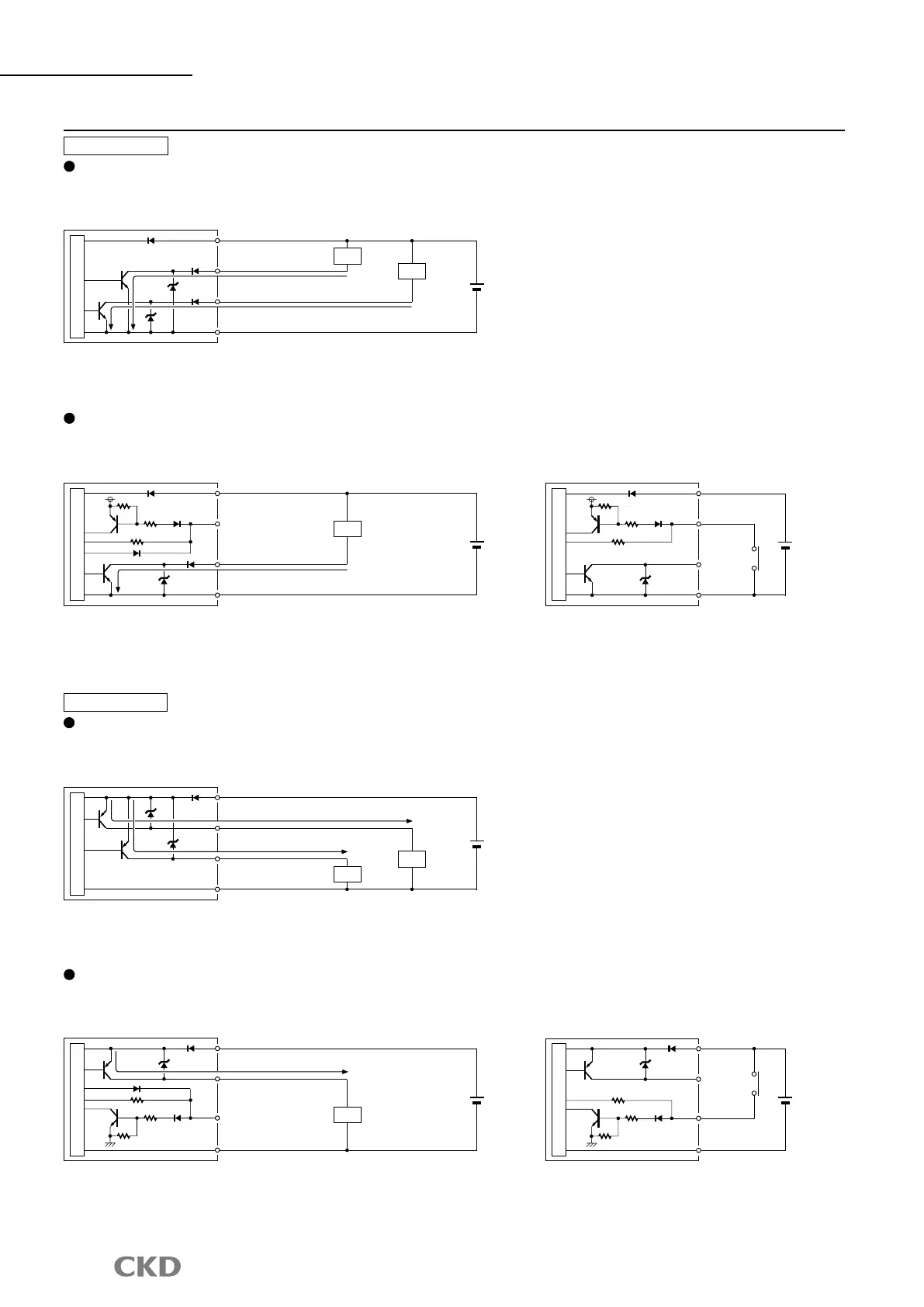

Circuit and connection
Standard type
High function type
Standard type
High function type
<External input connection sample>
<External input connection sample>
PPX Series
NPN output type
PNP output type
(Note 1): Set output load resistor as 250Ω (MAX.), when analog current output.
(Note 2): Note that more than 5V voltage will be generated, when analog current output.
(Note 3): Be careful with input impedance of connecting device, when you use analog voltage output.
Also, note that voltage will be lower because of cable resistor, when cable is extended.
100mA MAX.
100mA MAX.
(Blue) 0V
(White) comparison output 2
(Black) comparison output 1
(Brown) +V
12 to 24 VDC
±10%
-
+
Load
Load
1kΩ
5V
100mA MAX.
(Blue) 0V
(Black) comparison output 1
(White) analog voltage/current
output or external input
(Note 1) (Note 2), (Note 3)
(Brown) +V
12 to 24 VDC
±10%
-
+
Load
1kΩ
5V
(Blue) 0V
(Black)
(White)
External input
(Brown) +V
12 to 24 VDC
±10%
-
+
100mA MAX.
100mA MAX.
(Blue) 0V
(White) comparison output 2
(Black) comparison output 1
(Brown) +V
12 to 24 VDC
±10%
-
+
Load
Load
100mA MAX.
1kΩ
(White) analog voltage/current
output or external input
(Note 1) (Note 2), (Note 3)
(Blue) 0V
(Brown) +V
12 to 24 VDC
±10%
-
+
Load
(Black) comparison output 1
1kΩ
(White)
External input
(Blue) 0V
(Brown) +V
12 to 24 VDC
±10%
-
+
(Black)
Main circuit
Main circuit
Main circuit
Main circuit
Main circuit
Main circuit
7

CKD PPX Series Specifications

General

Proof pressure	1.5 MPa
Pressure port	Rc 1/8
Port Size	Rc1/8
Piston Material	Stainless steel
Rod Material	Stainless steel
Seal Material	NBR
Fluid	Air
Withstand voltage	AC 1500 V, 1 min
